Technical Specifications
Overview

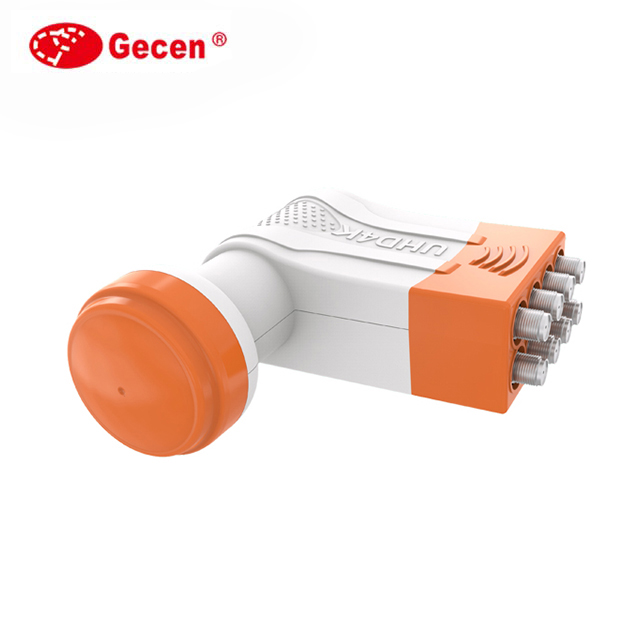

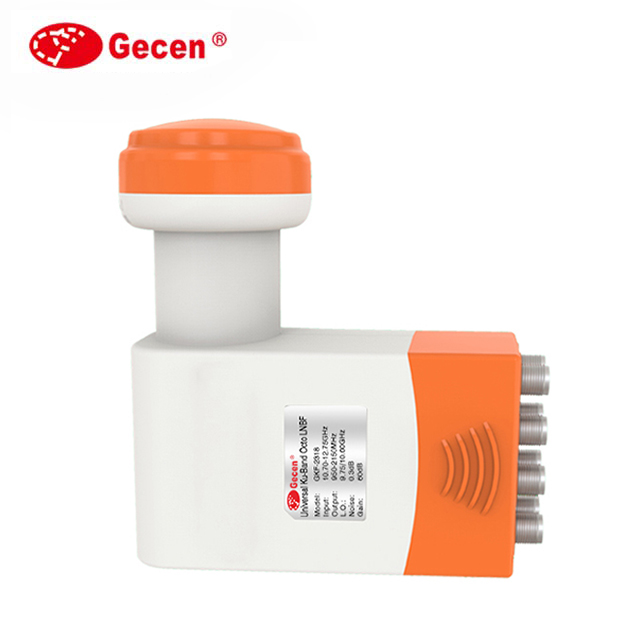

High-Performance Ku-Band Octo LNB
This Octo LNB is a professional-grade low-noise block downconverter engineered for reliable satellite TV reception in both residential and commercial environments. Designed to support DVB-S2 standards, it enables seamless transmission of HD and UHD content across eight independent outputs. Its robust housing features UV-resistant weather protection to ensure consistent performance in extreme heat and cold conditions.
Key Features
- Key Features
- DVB-S2 CompliantUHD/HD ReadyLow Noise FigureLow Power ConsumptionHigh Frequency StabilityUV-Resistant Housing
Technical Specifications
Input Frequency Range
- Low Band: 10.70-11.70 GHz
- High Band: 11.70-12.75 GHz
Output Frequency Range
- Low Band: 950-1950 MHz
- High Band: 1100-2150 MHz
Local Oscillator Frequency
- Low Band: 9.75 GHz
- High Band: 10.60 GHz
- Output VSWR
- 2.0:1 (Typ.)
Performance Metrics
Signal Performance
0.5 dB/27MHz
Gain Flatness
20 dB
Cross POL. Isolation
40 dB
Image Rejection
0 dBm
P1dB Output
