Ku-Band LNB for Satellite TV Reception
This Ku-band LNB is designed for satellite TV reception, compatible with DVB-S2 (HD and UHD). It features a low noise figure, low power consumption, and high frequency stability.
Technical Specifications
Product Overview
High-Performance Ku-Band LNB

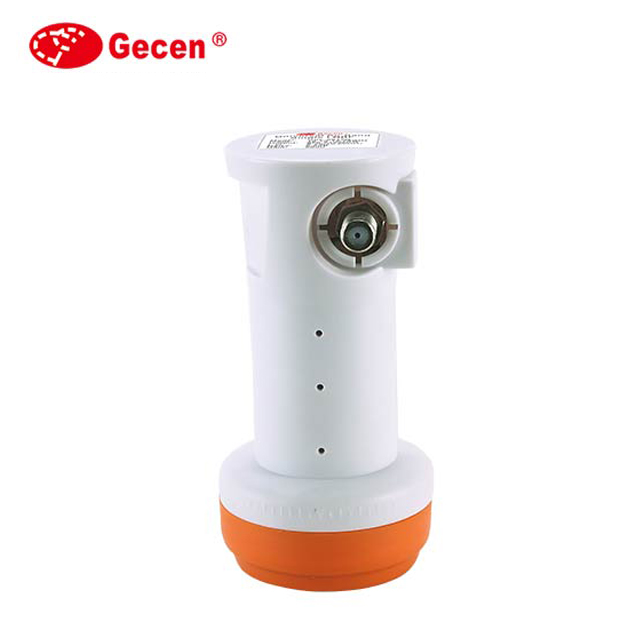

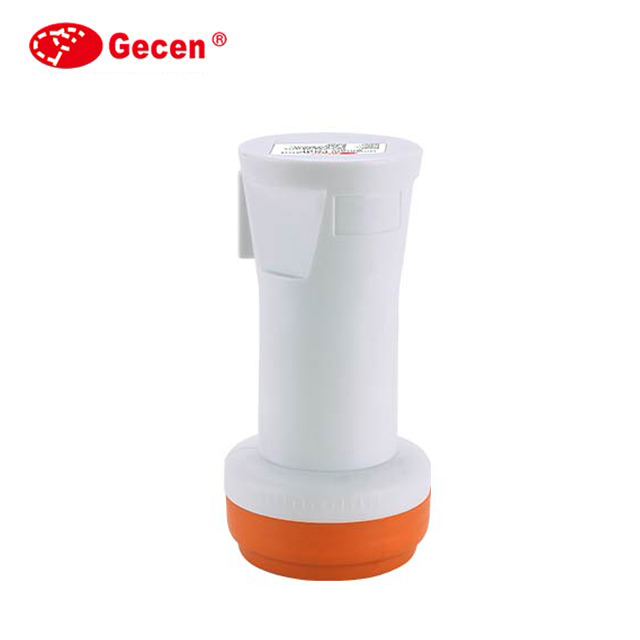

This Universal Linear Single Ku-band LNB is designed for high-quality satellite TV reception, supporting both HD and UHD DVB-S2 standards. It features a low noise figure to ensure reliable signal performance even in weak signal conditions and is built with a UV-resistant housing to withstand extreme heat and cold. Its compact design includes a custom-fit weather protection cap, making it ideal for both residential and commercial installations.
Technical Specifications
Input Frequency Range
| Band | Range |
|---|---|
| Low Band | 10.70~11.70 GHz |
| High Band | 11.70~12.75 GHz |
Output Frequency Range
| Band | Range |
|---|---|
| Low Band | 950~1950 MHz |
| High Band | 1100~2150 MHz |
L.O. Frequency
- Low Band: 9.75 GHz
- High Band: 10.60 GHz
Performance Metrics
Key Performance Indicators
20 dB
Cross-POL Isolation
40 dB
Image Rejection
0 dBm
P1dB
100 mA
DC Current Consumption
Features
- Compatibility & Features
- DVB-S2 CompliantHD ReadyUHD ReadyUV-ResistantWeatherproof
