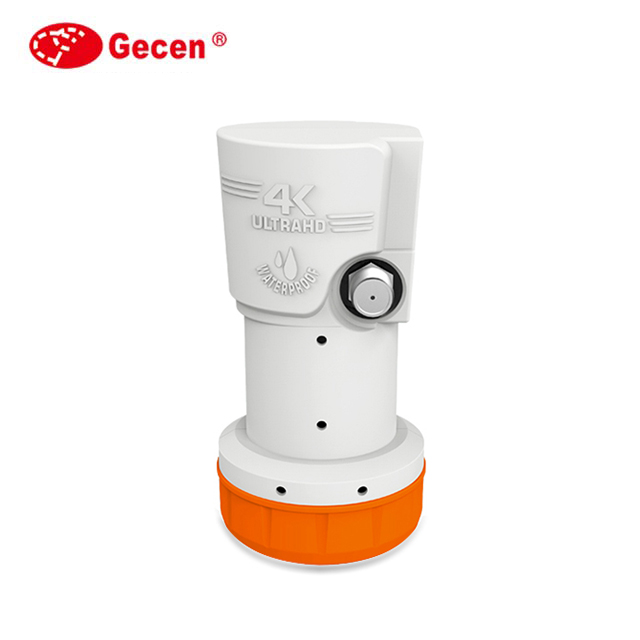

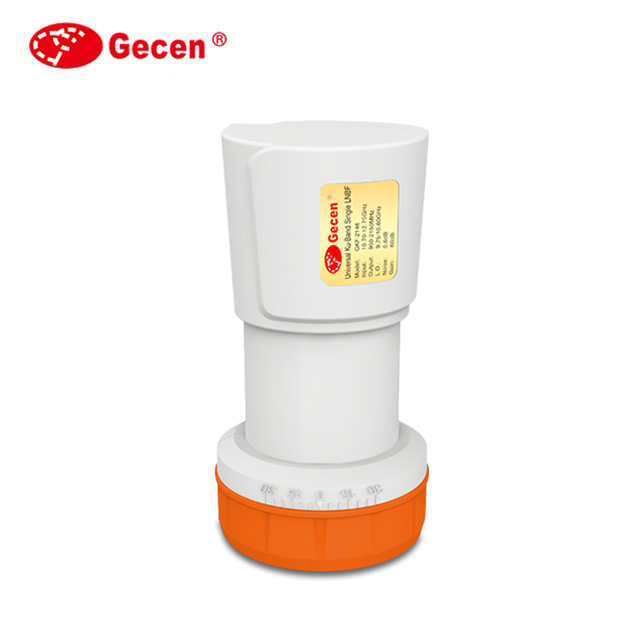

Ku-Band LNB for Satellite TV Reception
This Ku-band LNB is designed for satellite TV reception, compatible with DVB-S2 (HD and UHD). It features low power consumption and a low noise figure.
Technical Specifications
Product Overview
High-Performance Satellite Reception
This Ku-Band LNB is engineered for high-definition and ultra-high-definition (4K) satellite signal reception. It features a robust, weather-resistant construction with a UV-protected housing, ensuring reliable performance in extreme heat and cold. Its low noise figure and stable frequency output provide superior signal quality for demanding professional satellite TV installations.
Performance Metrics
Key Technical Metrics
0.6 dB
Noise Figure
60 dB
Gain
20 dB
Cross-Pol Isolation
Technical Specifications
Frequency Specifications
| Band | Input Freq (GHz) | Output Freq (MHz) | L.O. Freq (GHz) |
|---|---|---|---|
| Low Band | 10.70-11.70 | 950-1950 | 9.75 |
| High Band | 11.70-12.75 | 1100-2150 | 10.60 |
Key Features
- Capabilities
- DVB-S2 Compliant4K UHD ReadyWeatherproofUV ResistantLow Power Consumption
