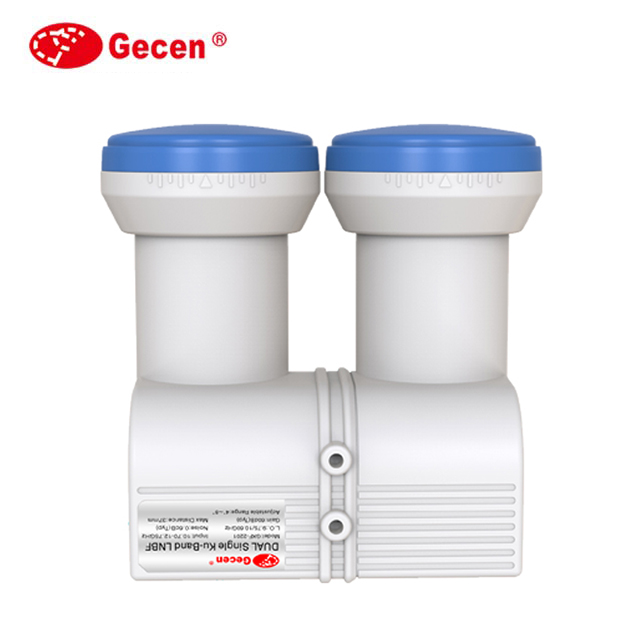

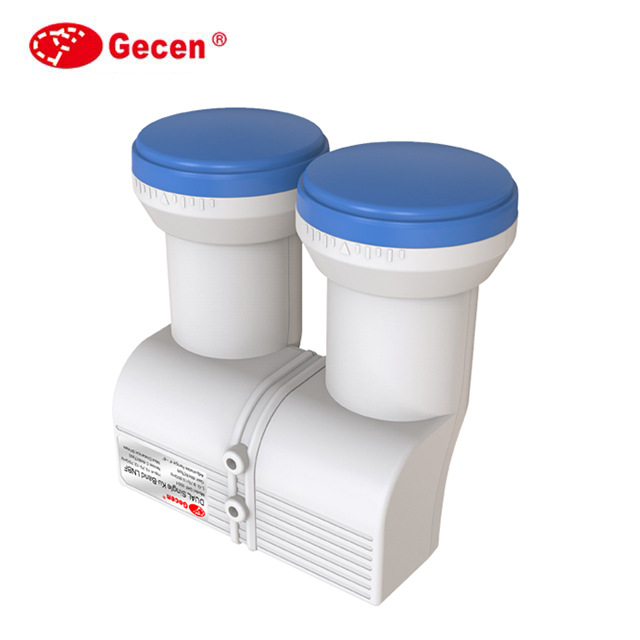

Ku-Band LNB for Satellite Signal Reception
This Ku-Band LNB is designed for satellite broadcast reception by DTH operators. It supports 4K Ultra HD transmissions and offers full coverage of the Ku-Band for both analog and digital reception.
Technical Specifications
Product Overview
Professional Ku-Band Satellite Solution
This Ku-Band LNB is a high-performance solution tailored for DTH operators and satellite broadcast reception. Designed to support 4K Ultra HD transmissions, it ensures excellent signal clarity with low noise and high gain. The unit offers full Ku-Band coverage, making it compatible with both analog and digital reception requirements.
Technical Specifications
- Low Band Input Frequency
- 10.70 - 11.70 GHz
- High Band Input Frequency
- 11.70 - 12.75 GHz
- Low Band Output Frequency
- 950 - 1950 MHz
- High Band Output Frequency
- 1100 - 2150 MHz
- Low Band L.O. Frequency
- 9.75 GHz
- High Band L.O. Frequency
- 10.6 GHz
Performance Metrics
Key Performance Metrics
0.5 dB/27MHz
Gain Flatness
20 dB
Cross POL Isolation
40 dB
Image Rejection
Additional Signal Parameters
| Parameter | Value |
|---|---|
| Output VSWR | 2.0:1 (Typ.) |
| P1dB | 0dBm (Min.) |
Compatibility
- Supported Resolutions
- 4K Ultra HDAnalogDigital
