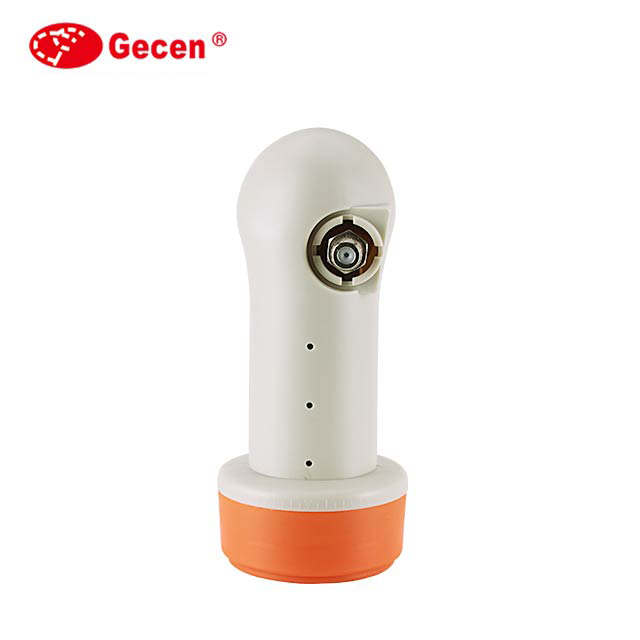

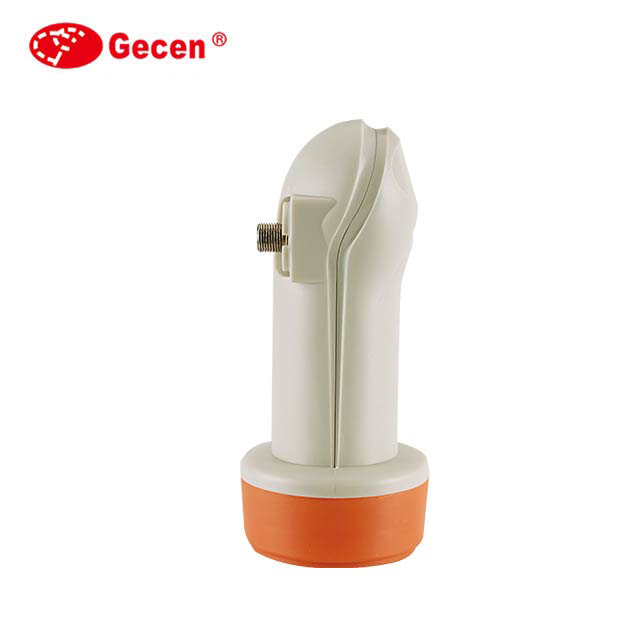

Ku-Band LNB
This LNB is DVB-S2 (HD and UHD) compliant with a low noise figure. It features high cross-pol isolation and is extremely heat and cold resistant.
Technical Specifications
Product Overview
Professional Ku-Band LNB
This high-performance Ku-Band LNB is designed for reliable satellite signal reception in both HD and UHD formats. It features advanced low noise technology and exceptional frequency stability to ensure a high-quality viewing experience. Engineered for durability, the unit includes a weather-protected housing that is resistant to both extreme heat and cold.
Technical Specifications
- Input Frequency Range
- Low Band: 10.70-11.70 GHzHigh Band: 11.70-12.75 GHz
- Output Frequency Range
- Low Band: 950-1950 MHzHigh Band: 1100-2150 MHz
- Local Oscillator (L.O.) Frequency
- Low Band: 9.75 GHzHigh Band: 10.60 GHz
Performance Metrics
Key Performance Indicators
20 dB(Min)
Cross-Pol Isolation
40 dB(Min)
Image Rejection
100 mA
DC Current Consumption
0 dBm
P1dB
Stability & VSWR
- Gain Flatness: ±0.5dB/27MHz
- Output VSWR: 2.0:1 (Typ.)
- L.O. Frequency Stability: ±1.0MHz (Max.) @ +25°C
Features
Product Highlights
DVB-S2 CompliantHD & UHD ReadyLow Noise FigureLow Power ConsumptionUV-Resistant HousingWeatherproof Cap Included
