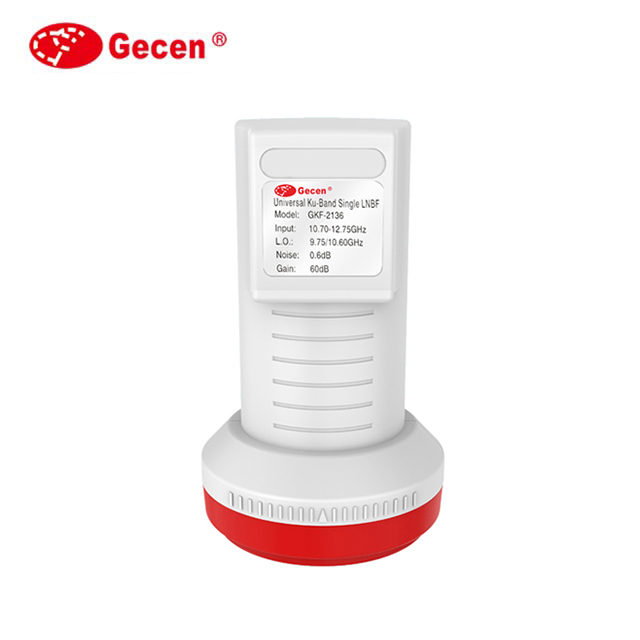

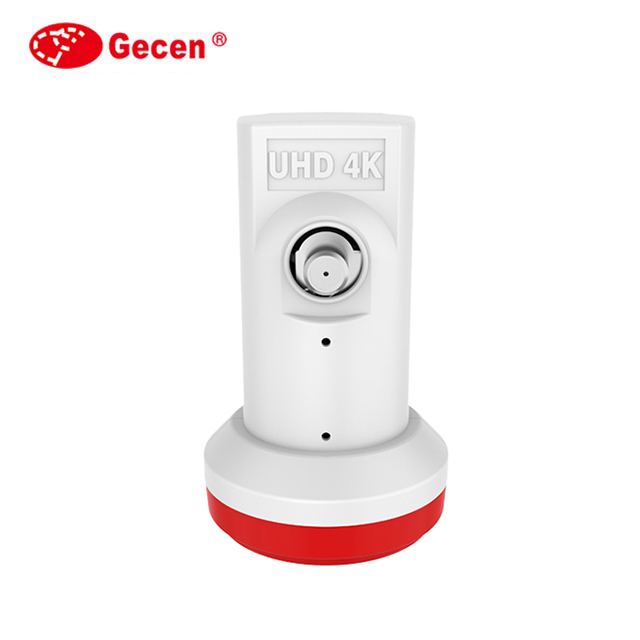

Ku-Band LNB
This Ku-band LNB is DVB-S2 (HD and UHD) compliant with a low noise figure. It features high cross-polarization isolation and is extremely heat and cold resistant.
Technical Specifications
Product Overview
High-Performance Ku-Band LNB
This Ku-Band LNB is designed for professional satellite signal reception, fully compliant with DVB-S2 standards for both HD and UHD broadcasting. Engineered for reliability, it features a low noise figure, high frequency stability, and excellent cross-pol isolation to ensure superior signal quality. Its robust, UV-resistant housing and custom-fit weather cap provide extreme resistance to heat and cold, making it ideal for diverse environmental conditions.
Key Features
- Highlighted Benefits
- DVB-S2 CompliantHD/UHD ReadyLow Noise FigureHigh Frequency StabilityUV-Resistant HousingLow Power Consumption
Technical Specifications
Frequency Ranges
| Band | Input Frequency (GHz) | Output Frequency (MHz) | L.O. Frequency (GHz) |
|---|---|---|---|
| Low Band | 10.70-11.70 | 950-1950 | 9.75 |
| High Band | 11.70-12.75 | 1100-2150 | 10.60 |
Performance Metrics
20 dB
Cross-Pol Isolation
40 dB
Image Rejection
100 mA
DC Current Consumption
0 dBm
P1dB
- Gain Flatness
- ±0.5dB/27MHz
- Output VSWR
- 2.0:1
