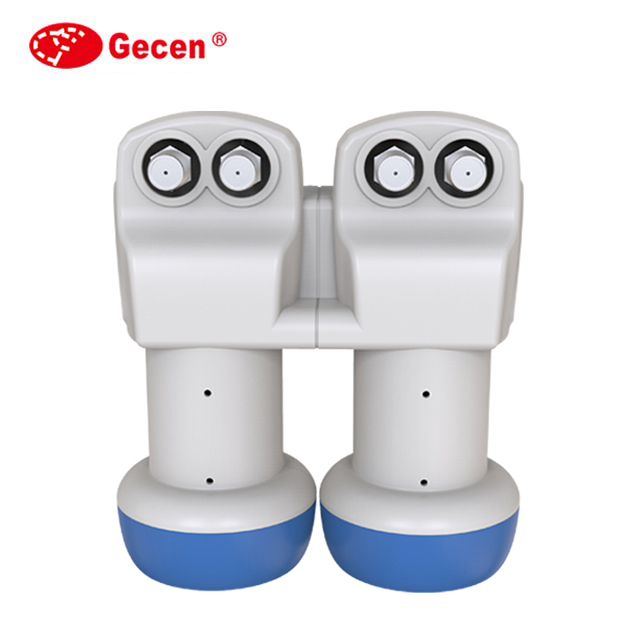

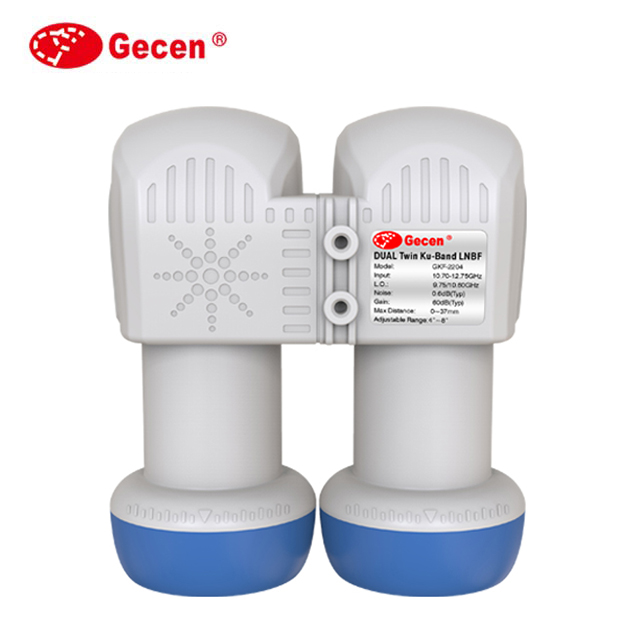

Ku-Band Dual Output LNB
This Ku-Band LNB is designed for satellite broadcast reception and supports 4K Ultra HD transmissions. It offers excellent performance with low noise and high gain, ensuring full coverage of the Ku-Band for both analog and digital reception.
Technical Specifications
Product Overview
High-Performance Ku-Band Solution
This Dual Output LNB is engineered to provide superior satellite broadcast reception for DTH operators. Supporting 4K Ultra HD transmissions, it ensures high-quality digital and analog signal delivery across the full Ku-Band range. Its robust design features low noise and high gain, making it a reliable choice for professional satellite installations.
Technical Specifications
Input Frequency Range
- Low Band: 10.70-11.70 GHz
- High Band: 11.70-12.75 GHz
L.O. Frequency
- Low Band: 9.75 GHz
- High Band: 10.60 GHz
Output Frequency Range
- Low Band: 950-1950 MHz
- High Band: 1100-2150 MHz
Performance Metrics
Key Performance Metrics
0.5 dB/27MHz
Gain Flatness
20 dB
Cross POL. Isolation
40 dB
Image Rejection
0 dBm
P1dB
- Power Consumption
- 200 mA
Product Features
- Standards and Support
- 4K Ultra HD ReadyAnalog ReceptionDigital ReceptionDual Output
