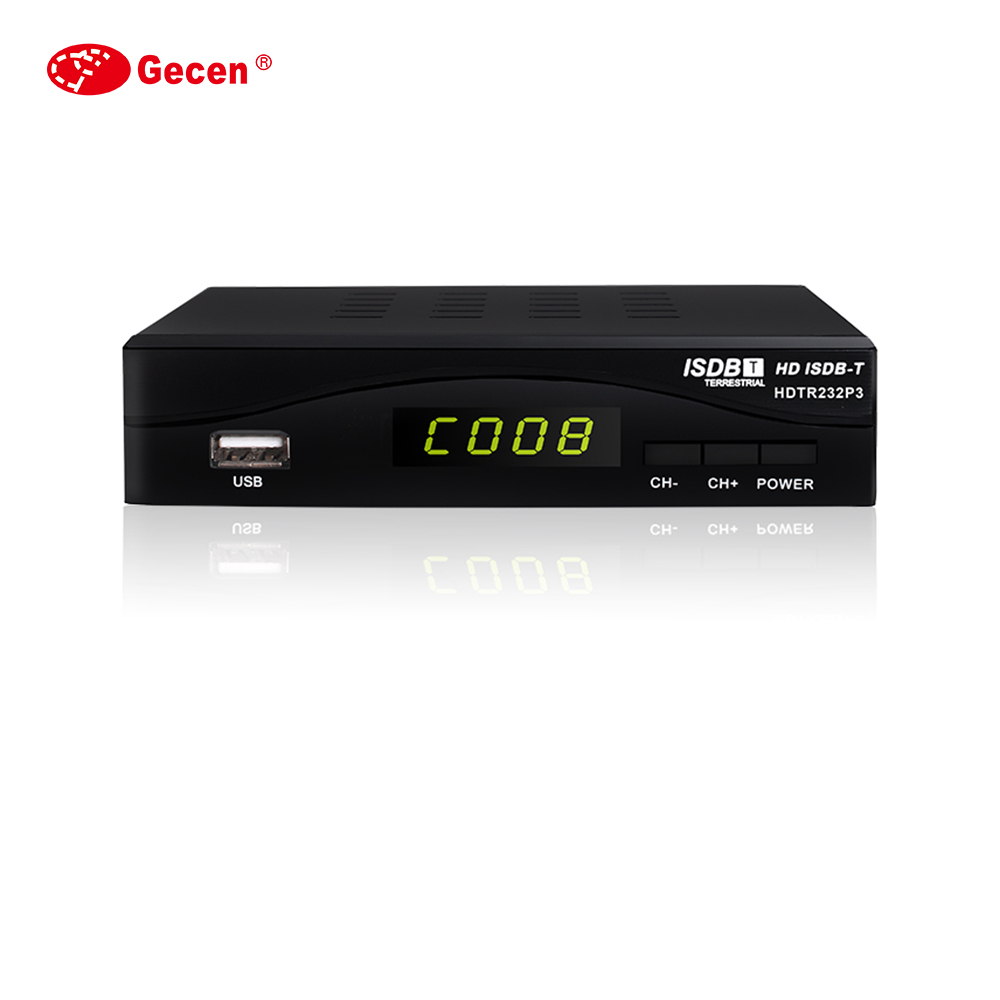

ISDB-T Digital TV Set-Top Box
This set-top box receives and decodes digital television broadcasts using the ISDB-T standard. It supports high-definition output up to 1080p and features a USB port for media playback and software updates.
Technical Specifications
Overview
High-Definition Digital Terrestrial Receiver
This ISDB-T Digital TV Set-Top Box is designed to deliver a seamless digital viewing experience, supporting high-definition resolutions up to 1080p. It features robust hardware for efficient video decoding, including H.264 and MPEG-4 standards, ensuring compatibility with a wide range of broadcast formats. With integrated PVR and time-shifting capabilities via USB 2.0, this device offers both live broadcast reception and versatile media playback options for professional and home entertainment setups.
Hardware & Performance
System Specifications
| Component | Specification |
|---|---|
| CPU | MSD7805 |
| DDR2 Memory | 512Mbit |
| Flash Memory | 32Mbit |
| Power Supply | 100~240V AC, 50Hz |
| Dimensions | 132 x 80 x 30 mm |
Tuner & Signal
Tuner Performance
75 Ohm
Input Impedance
100 mA
Active Antenna Max Current
8 MHz
Max Bandwidth
- Supported Modulation
- QPSK16-QAM64-QAM256-QAM
Media & Connectivity
Video Resolution Support
480i480P576i576P720P1080i1080P
Supported Media Formats
- AVI
- MP4
- MKV
- MOV
- DAT
- FLV
- MPG
- VOB
- 3GP
- TS
Software Features
- Key Software Capabilities
- EPG (7 Days)PVRTime ShiftingParental ControlTeletextSubtitle SupportLCN Sort
