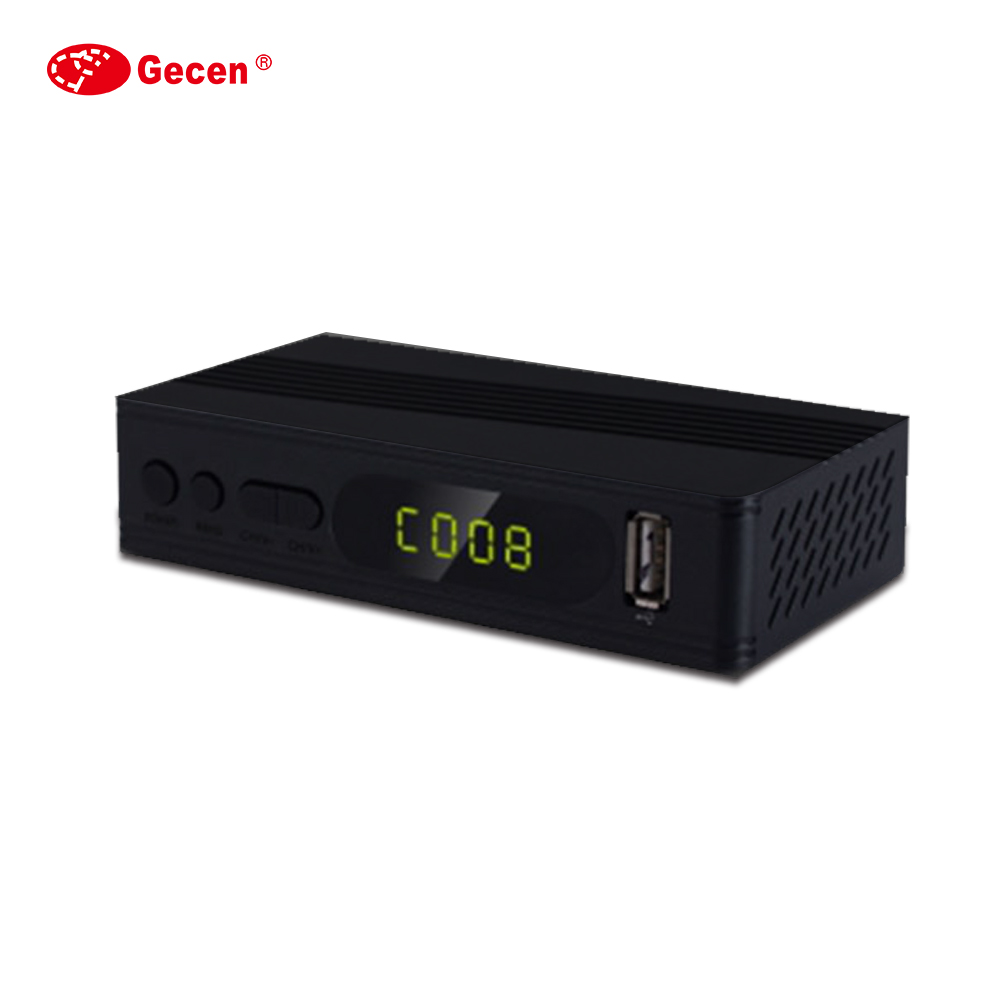

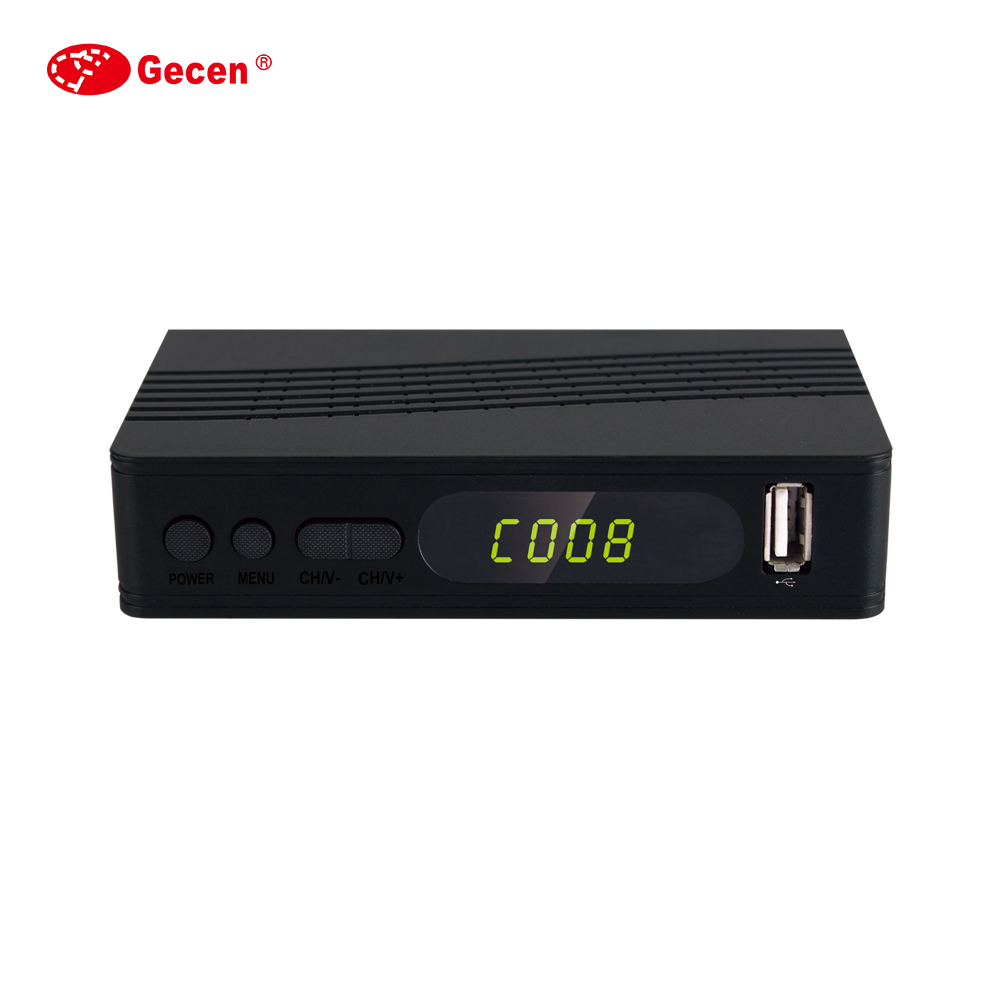

ISDB-T Digital TV Set-Top Box
This set-top box receives and decodes digital terrestrial television broadcasts. It supports high-definition output and features a USB port for media playback.
Technical Specifications
Overview
High-Definition ISDB-T Digital TV Receiver
This ISDB-T compliant digital TV set-top box provides high-definition reception with support for resolutions up to 1080p. Designed for versatility, it features a robust tuner for stable signal reception and includes USB 2.0 connectivity for media playback and PVR functionality. The device supports a wide range of video and audio formats, ensuring compatibility with various digital media sources.
Hardware
Memory Configuration
512 Mbit
DDR2 RAM
32 Mbit
Flash Memory
- CPU
- MSD7805
- Power Supply
- DC 5V / 2A
- Dimensions
- 120 x 63 x 30 mm
Tuner & Connectivity
- Input Frequency Range
- VHF: 170-231MHz, UHF: 470-866MHz
- Signal Input Level
- -82 to -20 dBm
- Input Impedance
- 75 Ohm
- Interface Ports
- USB 2.0AVHDMIRF INRF OUT
Media & Software
Supported Video Resolutions
- 480i
- 480p
- 576i
- 576p
- 720p
- 1080i
- 1080p
Supported File Formats
| Media Type | Formats |
|---|---|
| Video | avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts |
| Audio | mp3, wma, agg |
| Picture | JPEG, BMP, PNG |
Advanced Features
PVRTime Shift8-Day EPGLCN SupportTeletext
