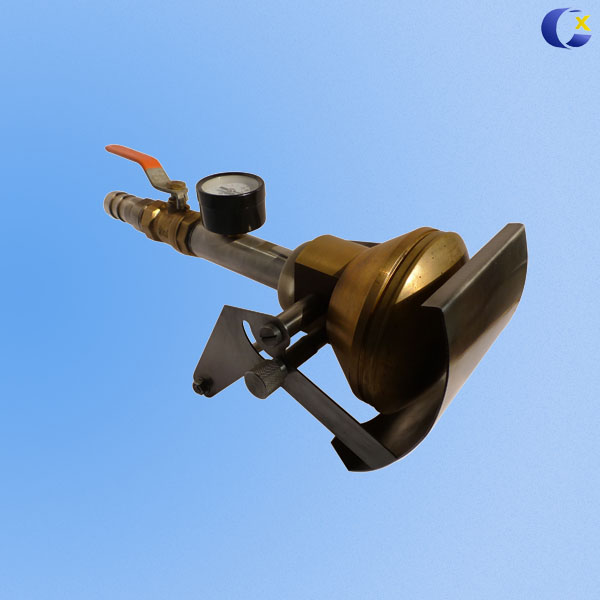

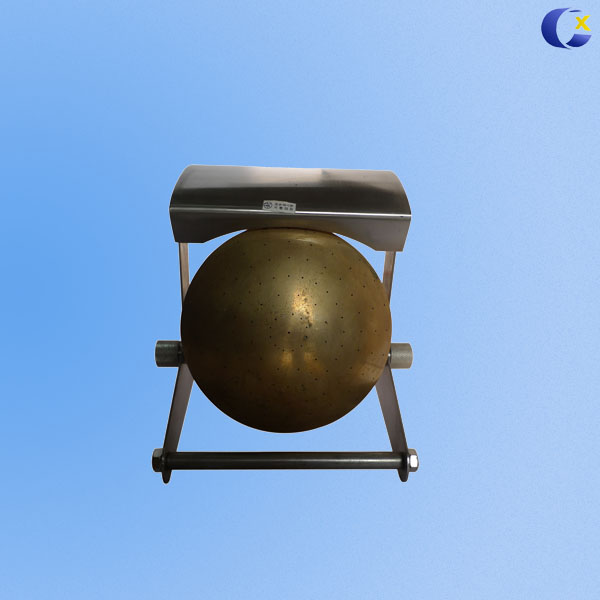

IPX3/4 Waterproof Test Spray Nozzle
The Spray Tester IPX 3/4 is a hand-held test device for protection verification. It allows users to adjust water pressure using the flow control knob to achieve the required flow rate.
Technical Specifications
Product Overview
Precision Testing for Ingress Protection
This hand-held spray nozzle is engineered for verifying protection against spraying and splashing water according to IEC60529 standards. Designed for IPX3 and IPX4 waterproof testing, it features an integrated pressure gauge and adjustable flow control to ensure precise, repeatable test conditions. The robust construction includes a removable shield, allowing for versatile testing configurations for various electronic and electrical enclosures.
Technical Specifications
Pressure Gauge Range
1.6 bar
Max Pressure
Nozzle Configuration
| Parameter | Value |
|---|---|
| Number of Holes | 121 |
| Hole Diameter | 0.5 mm |
- Material
- Brass
Compliance & Standards
- Applicable Standards
- IEC60529IEC60598-1IEC60335-1IEC60745-1
Features
Device Capabilities
- Hand-held ergonomic design
- Integrated pressure gauge
- Adjustable flow control knob
- Removable shield feature
- IPX3 and IPX4 testing capability
