Technical Specifications
Product Overview
Industrial Power Solutions

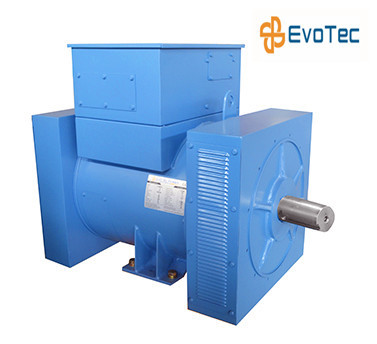

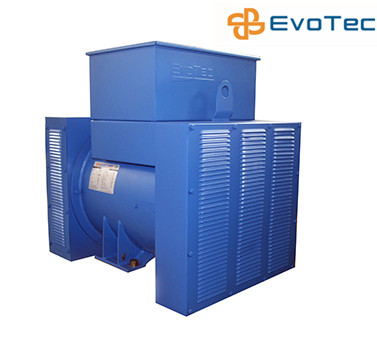

This high-performance IP44 rated generator is engineered for continuous and standby power applications in demanding environments. Featuring patented high-efficiency winding and a specialized rotary lamination stator, it provides superior energy conversion, reduced fuel consumption, and optimized heat dissipation. The unit offers flexible voltage options and robust protection, ensuring long-term reliability and stable performance in diverse industrial settings.
Electrical Performance
Key Operational Metrics
1,500 rpm
Speed
0.8
Power Factor
1 %
Voltage Regulation
- Operating Voltage
- 110V to 690V
- Frequency
- 50Hz60Hz
Mechanical Construction
Protection Degree
IP44IP55
- Insulation Class
- H
- Bearing Configuration
- Single / Double Bearing
- Max Altitude
- 4000 m.a.s.l
- Ambient Temperature Range
- 27°C to 60°C
Technical Advantages
Design Advantages
- Patented high-efficiency winding for reduced fuel consumption
- Unique pitch 2/3 winding to suppress voltage waveform distortion
- Built-in exciter structure for low vibration and loss
- Rotary lamination stator for improved magnetic circuit uniformity
- Reinforced rotor insulation against voltage shocks
