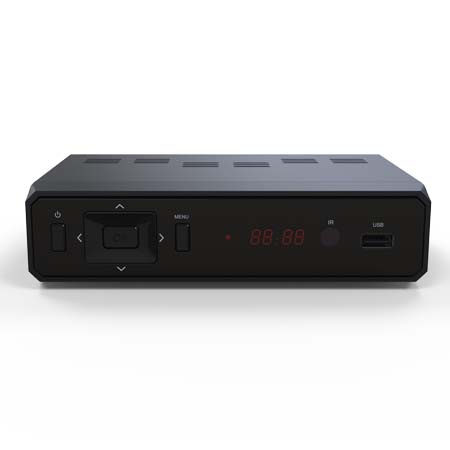

Internet TV Receiver Set-Top Box
This digital set-top box is designed for receiving and decoding internet television signals. It features multiple connectivity options, including HDMI, TV SCART, and LAN port, for high-quality audio and video output.
Technical Specifications
Overview
High-Performance Combo Receiver
This DVB-T2/S2 Combo HEVC FTA Receiver offers a versatile solution for high-definition television reception. Featuring a durable metal casing and robust decoding capabilities, it supports a wide array of standards including H.265 and H.264. With extensive connectivity options like HDMI, SCART, and USB 3.0, this set-top box ensures seamless integration into any home entertainment setup.
Technical Specifications
Output Resolutions
- 1080p
- 1080i
- 720p
- 576p
- 480p
- 576i
- 480i
- Supported Standards
- DVB-T2DVB-TDVB-S2DVB-SHEVCMPEG-2MPEG-4H.264H.265
- Frequency Range
- VHF-H 174~230MHz, UHF 470~860MHz
Connectivity
Ports & Interfaces
| Interface Type | Function |
|---|---|
| HDMI | Video Output |
| SCART | Video/Audio Output |
| USB 3.0 | PVR/Upgrade/Playback |
| RF In/Out | Antenna Signal |
| LAN Port | Network |
Modulator Features
Key Modulator Performance
42 dB
MER
960 MHz
Max RF Frequency
Modulation Parameters
- FFT Mode: 2K, 8K
- Bandwidth: 6M, 7M, 8M
- Constellation: QPSK, 16QAM, 64QAM
- Guard Interval: 1/4, 1/8, 1/16, 1/32
General Information
Warranty
1 Year Warranty
- Power Input
- 12V/1A or AC Cord
