Internal Gear Pump for Viscous Fluids
This internal gear pump is engineered for the smooth, pulsation-free transfer of viscous fluids. Its strong self-priming capabilities and material options enable the handling of various corrosive media.
Technical Specifications
Product Overview

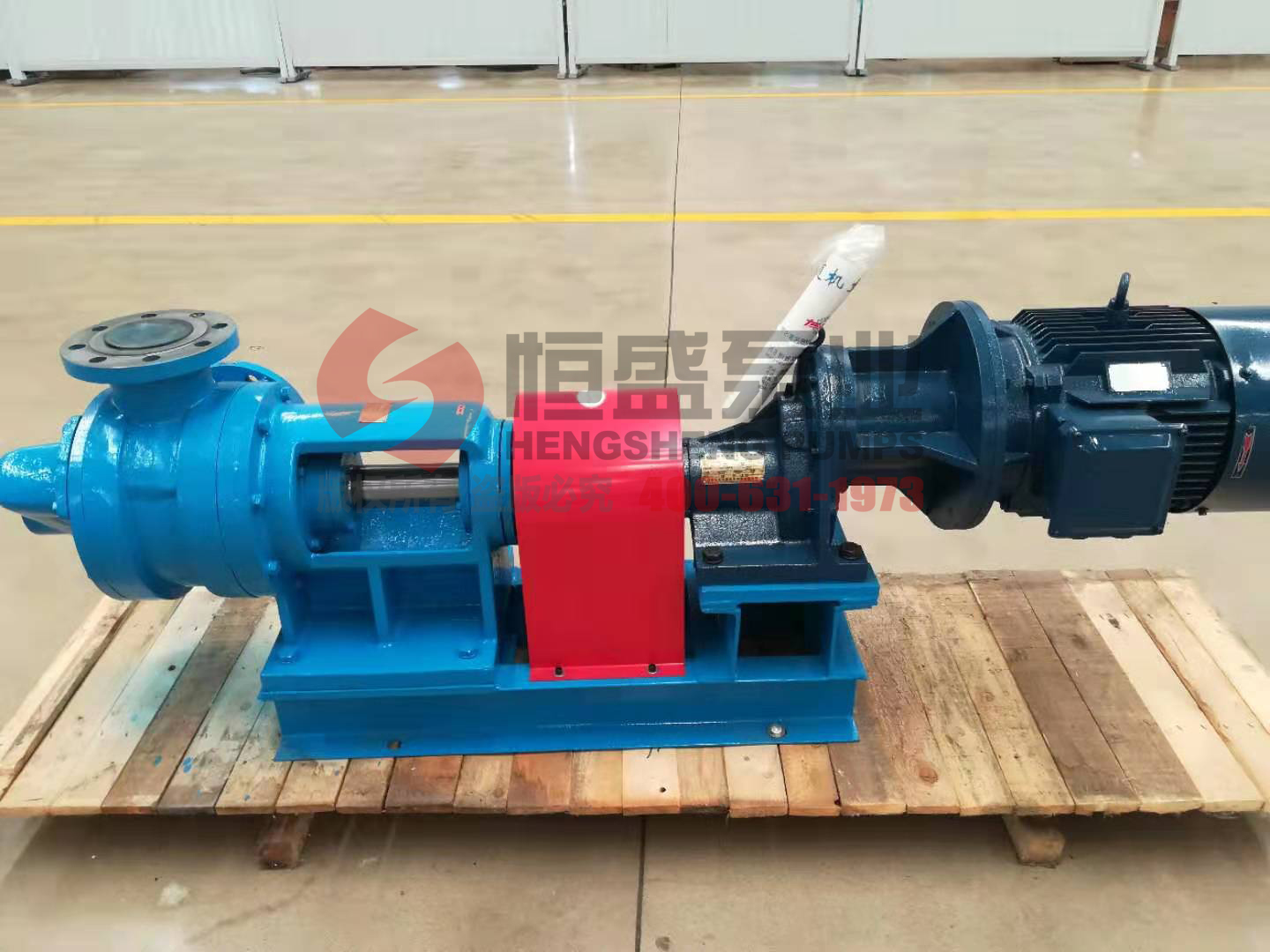

High-Viscosity Internal Gear Pump
The NYP series internal gear pump is a high-performance positive displacement pump engineered for demanding industrial applications. Designed to handle a wide range of fluids with varying viscosities, it provides a smooth, pulse-free flow with minimal vibration and noise. This versatile pump is ideal for sectors including petroleum, chemical processing, pharmaceuticals, and food production, offering robust reliability and strong self-priming capabilities.
Performance Specifications
Key Advantages
- Smooth, pulse-free liquid delivery
- Low noise and vibration operation
- Strong self-priming performance
- Corrosion-resistant material options
- Operating Temperature
- 200 °C
- Minimum Operating Temperature
- -10 °C
- Viscosity Range
- 1.0 - 300,000 cSt

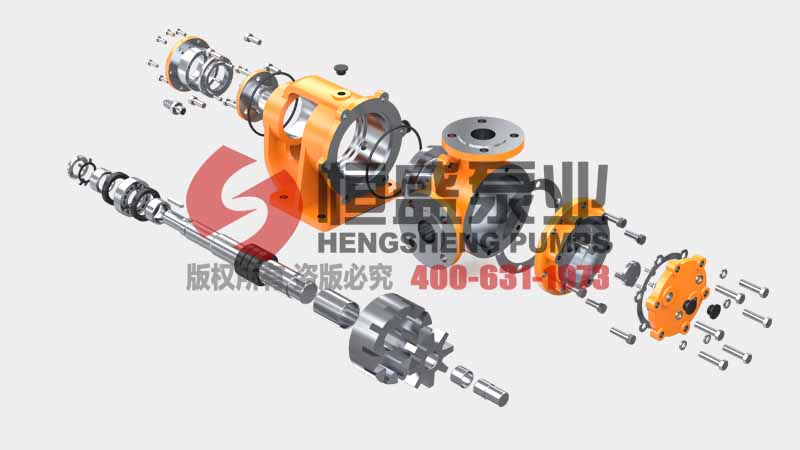

Structure & Components
Available Seals
Packing SealMechanical Seal
Drive Methods
Belt Wheel DriveCoupling Drive
Optional Features
- Heat preservation jacket for crystallizing media
- Integrated safety valve
- Primary Components
- Internal RotorOutside RotorShaftPump CasingFront CoverSealBearing
Applications
- Target Industries
- PetroleumChemical IndustryPaint ManufacturingPharmaceuticalsFoodstuff
