Intercity Passenger Bus with Enhanced Safety Features
This intercity bus incorporates advanced manufacturing technologies for enhanced safety and comfort. It features a girder-free monocoque bodyframe, independent double-wishbone front axle, and air suspension.
Technical Specifications
Overview

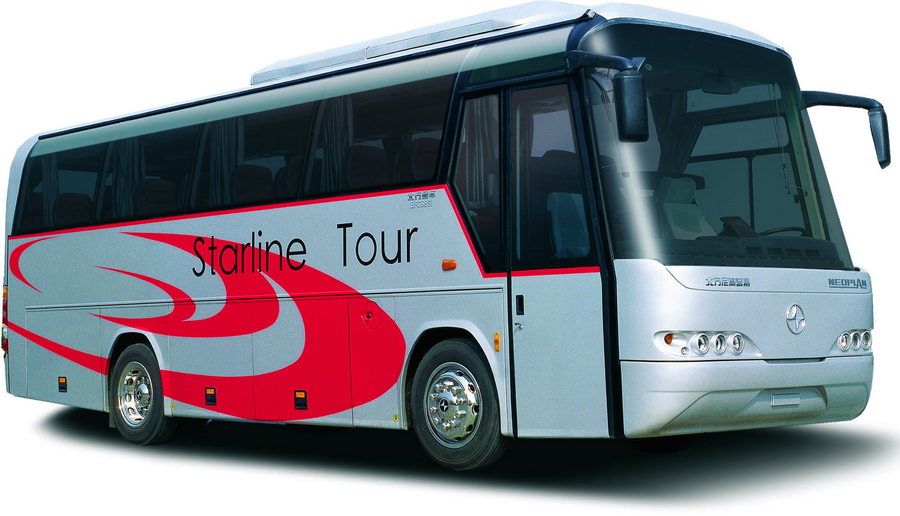

Intercity Passenger Bus

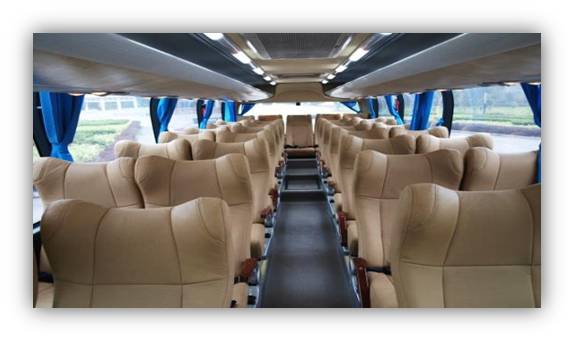

This robust intercity passenger bus is engineered for reliability, comfort, and safety in sightseeing and transport operations. Featuring a full unitized body construction with a rectangular steel skeleton, it offers durability and stable performance on the road. The interior is designed with passenger experience in mind, including luxurious reclinable seating and a comprehensive entertainment system, making it an ideal choice for professional transport services.
Dimensions & Capacity
Key Dimensions
8,950 mm
Length
2,500 mm
Width
3,440 mm
Height
- Seating Configuration
- 37+1+1 (Luxurious, reclinable back)
Powertrain & Performance
Engine Specifications
- In-line 6-cylinder
- Water-cooled
- Turbocharged and intercooled
- Direct injection
- Rear-mounted
Emission Standard
Euro 4
- Power Output
- 176 KW
Chassis & Suspension
Suspension System
| Location | Configuration |
|---|---|
| Front | Independent air suspension, 2 bellows, 2 shock absorbers |
| Rear | 2 bellows, 2 shock absorbers |
Axle Configuration
- Front: Double-wishbone independent front axle
- Rear: Drum type
Safety & Control
- Safety Features
- ABS (4S-4M)Electromagnetic RetarderFire Alarm System
Comfort & Electronics
Entertainment System
- HD player
- 17-inch LCD TV
- Loudspeaker system
- Microphone for guide
- Air Conditioning
- Non-independent overhead, cooling capacity ≥22000kcal/h
