Technical Specifications
Overview

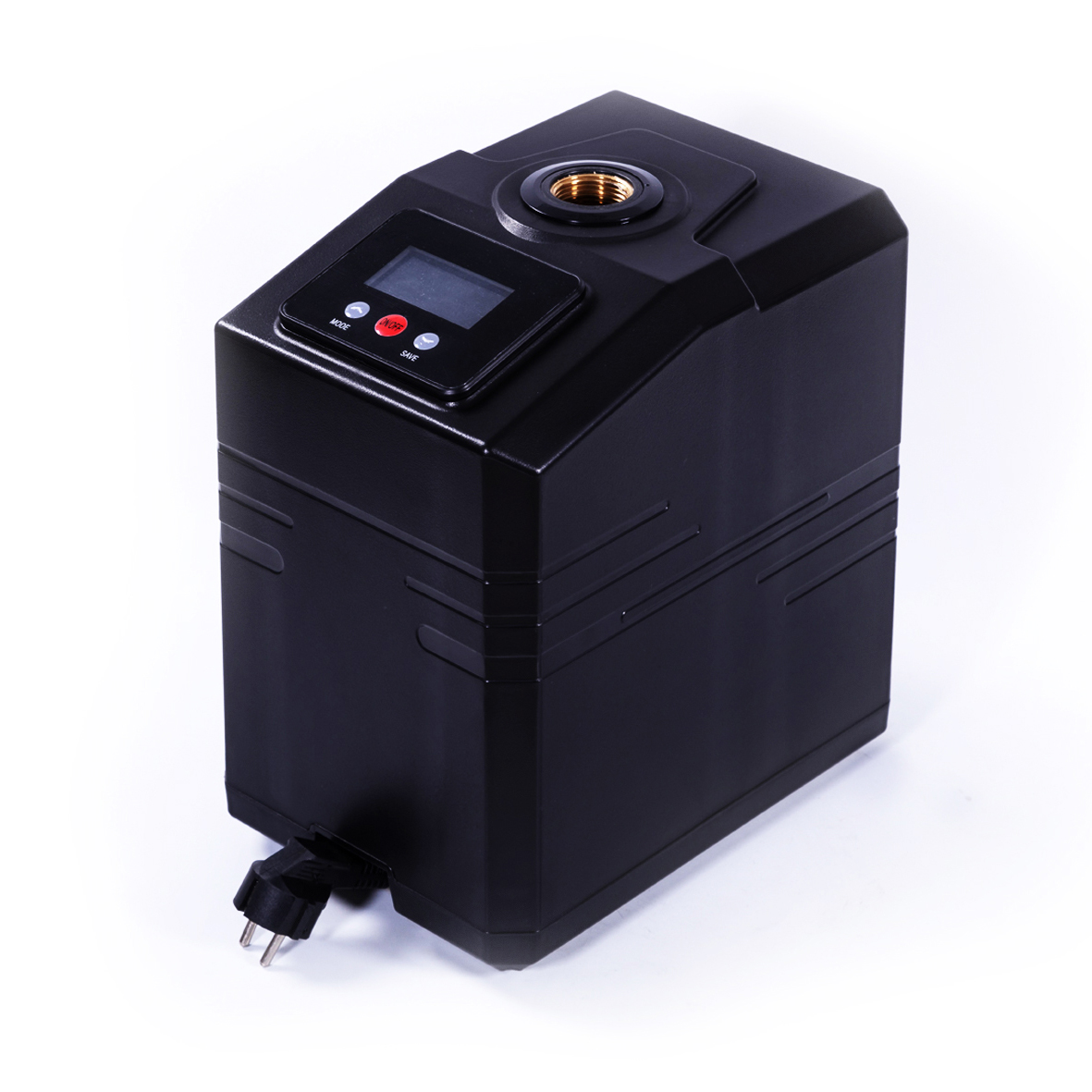

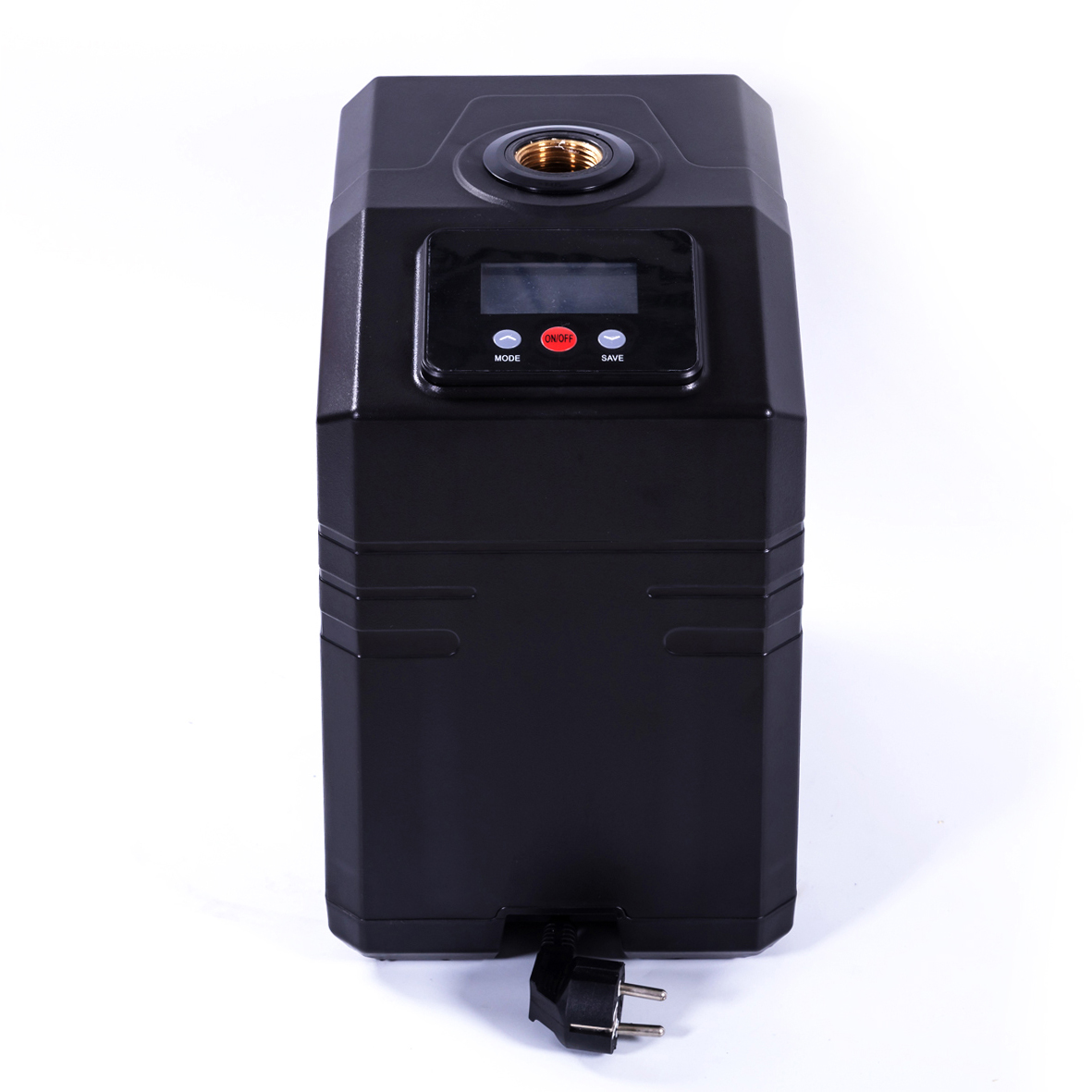

Intelligent Fluid Control Pump
This advanced fluid control pump utilizes frequency conversion technology to achieve energy savings of 60% or more. Designed for consistent performance, it maintains constant pressure for water supply systems through a fully automatic closed-loop monitoring control system. With its intuitive human-machine interface and intelligent diagnostic capabilities, this pump offers reliable, low-noise operation suitable for demanding industrial and residential applications.
Performance Metrics
Energy Savings
60 %
Energy Saving
- Self-Suction Head
- 7 m
- Voltage Range
- 170-270V
- Frequency Range
- 50-60Hz
Technical Specifications
Ambient Conditions
| Parameter | Value |
|---|---|
| Ambient Temperature | 0~40℃ |
| Max Relative Humidity | 85% RH |
- Liquid Temperature
- 0~70℃
- PH Value Range
- 6.5~8.5
Features
Key Features
- Constant pressure water supply
- Water-cooled motor for noise reduction
- Intelligent diagnosis with alarm and failure prediction
- Electrophoresis treated casting parts
- Full stainless steel shaft
- High-quality bearings (SKF/NSK)
- Build Quality
- Stainless Steel ShaftWater CoolingFrequency ConversionAutomatic Control
