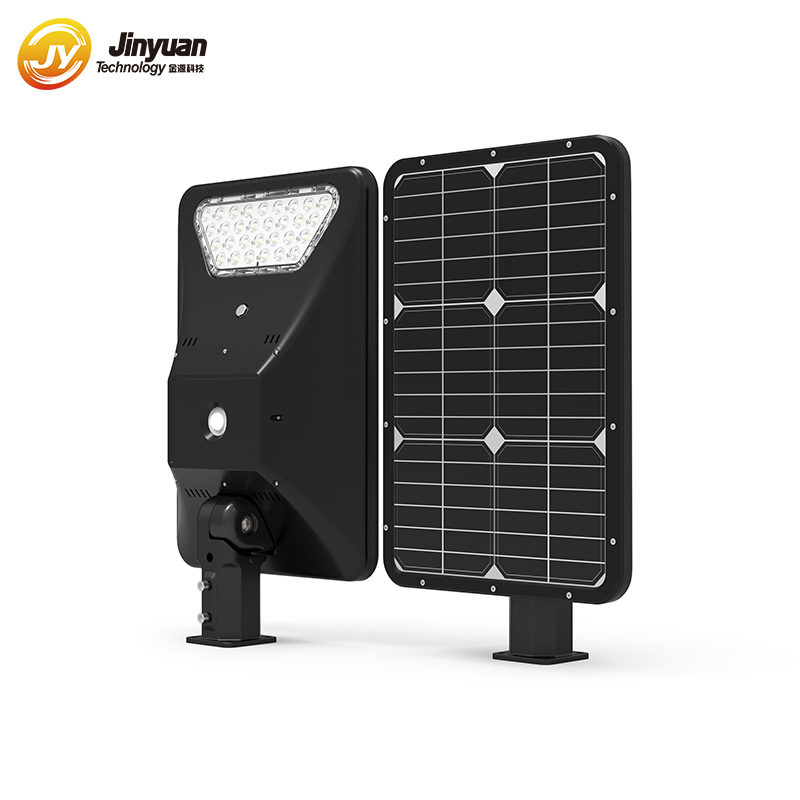

Integrated Solar LED Street Light
This integrated solar LED street light combines a solar panel, LED, battery, and controller in a compact design. It features remote control and a PIR sensor for optimized operation.




Technical Specifications
Overview

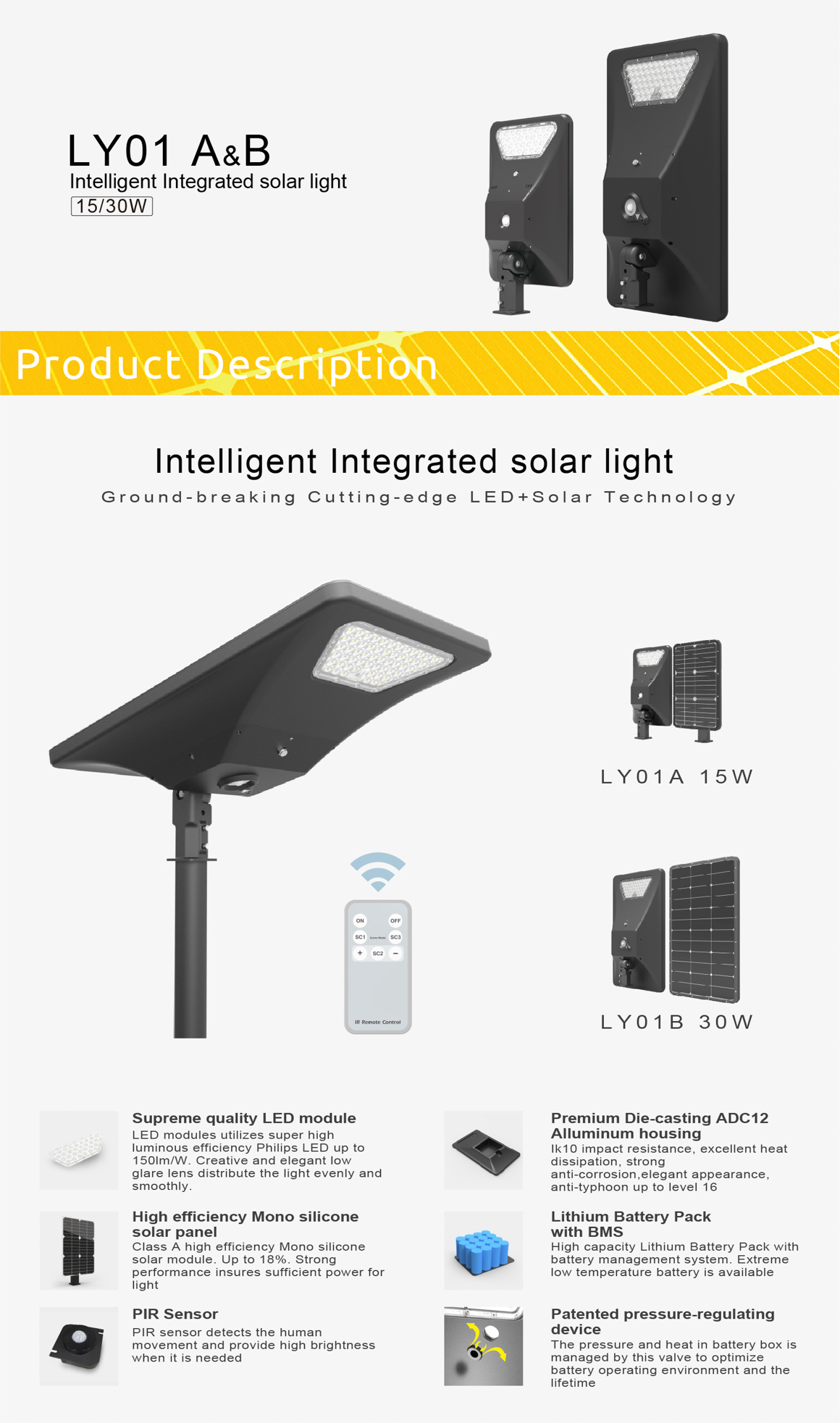

Intelligent Integrated Solar Street Light

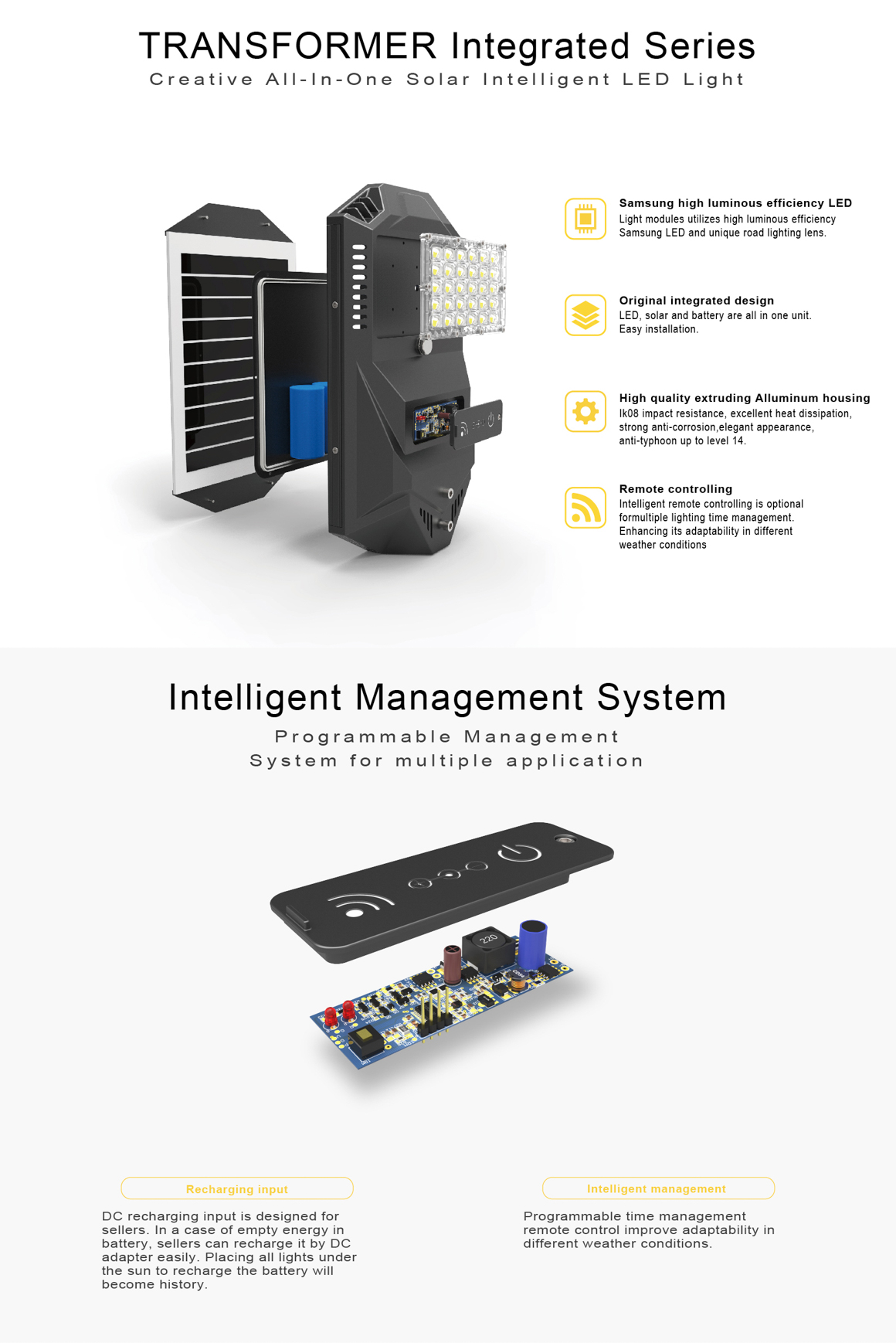

This integrated solar street light series combines advanced solar panel, LED, battery, and controller technology into a single, compact, and elegant design. Engineered for flexibility and adaptability, it features intelligent controllers that optimize daily operation and support programmable remote control. Built with high-quality materials, these lights offer robust performance, including impact resistance, excellent heat dissipation, and reliable operation in various weather conditions.

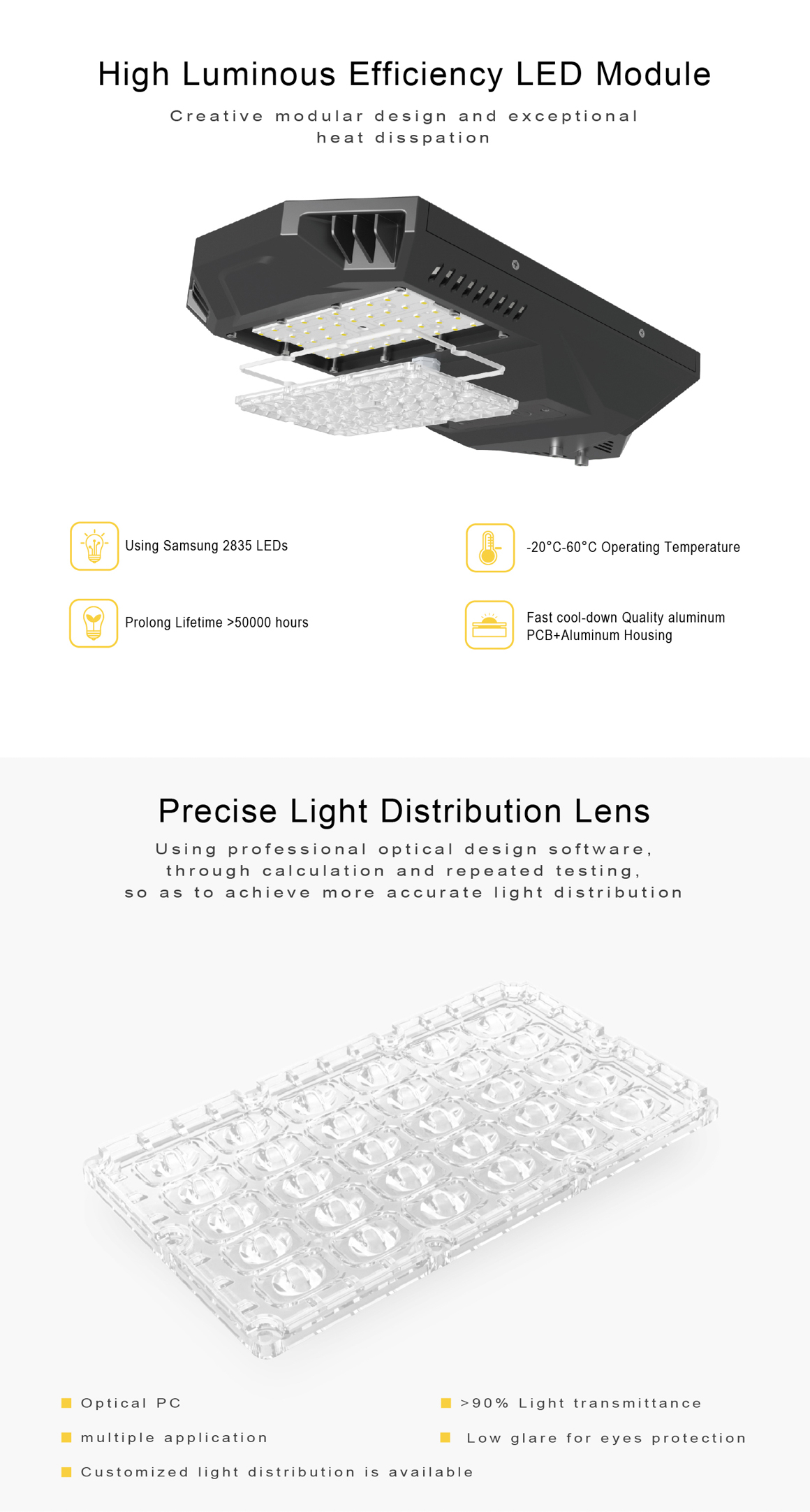

Optical Performance
Optical Specifications
| Feature | Model LY01A | Model LY01B |
|---|---|---|
| LED Rated Power (Max) | 15W | 30W |
| Lumen Output (Max) | 2400Lm | 4800Lm |
| Beam Angle | 60°x120° | 70°x140° |
- Color Temperature
- 3000K - 6000K
- CRI
- Ra>70

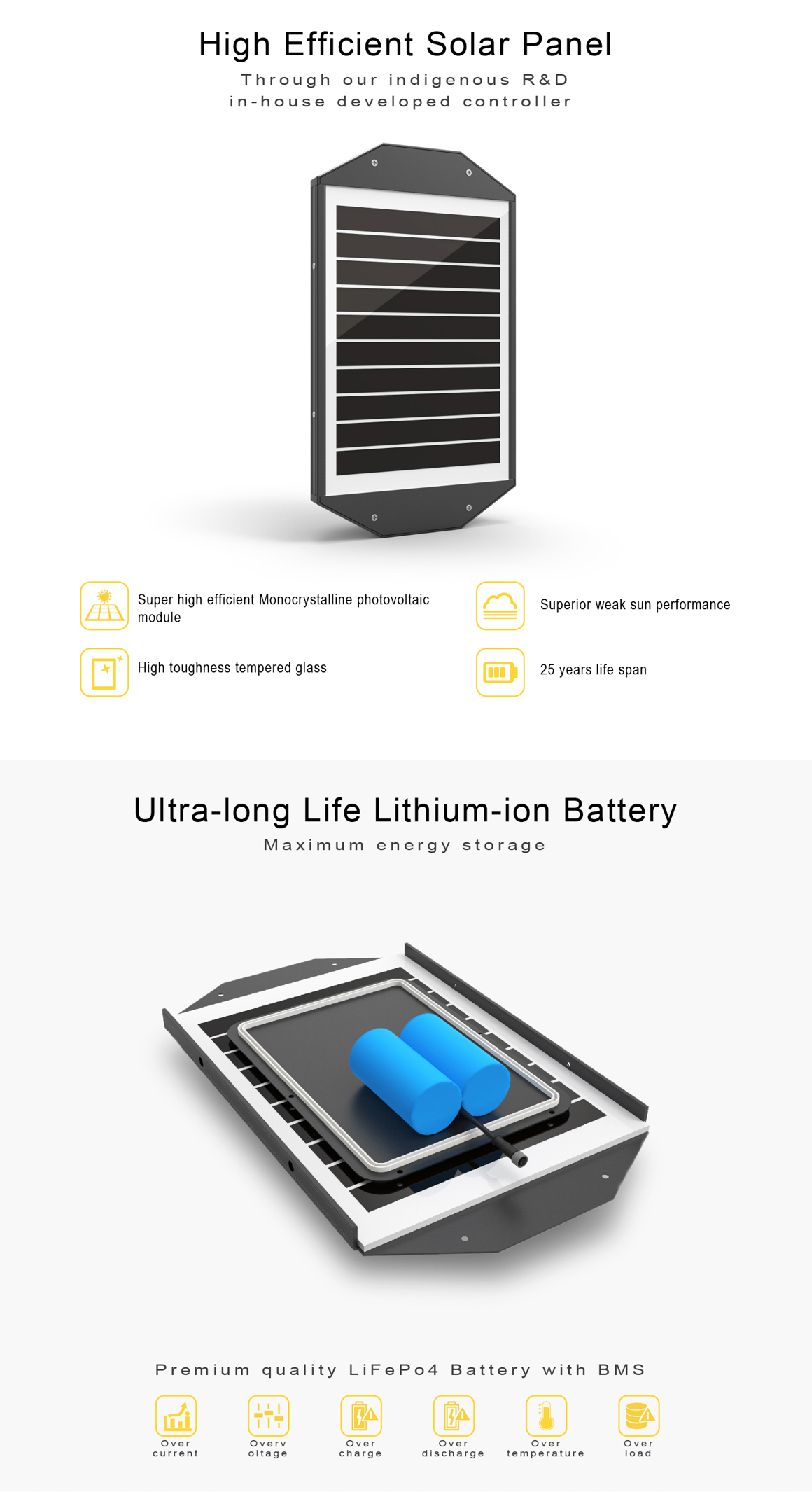

Solar Panel
Solar Panel Details
| Feature | Model LY01A | Model LY01B |
|---|---|---|
| Nominal Power | 30W | 70W |
| Dimensions | 524.5x330x15mm | 818x490x15mm |
| Voltage at Pmax | 18V | 18V |
| Current at Pmax | 1.56A | 3.8A |
- Lifespan
- 25 Years

Energy Storage
Nominal Capacity
| Model | Capacity |
|---|---|
| LY01A | 307Wh |
| LY01B | 640Wh |
Key Features
Key Features
- Operating Temperature
- -20°C to 60°C
- LED Lifetime
- >50,000 hours
