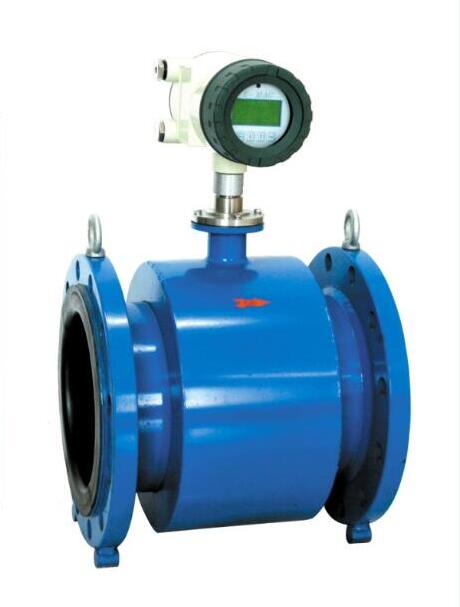

Integrated Electromagnetic Flowmeter with LCD
This integrated electromagnetic flowmeter features a liquid crystal display for easy reading of flow parameters. It is designed for metering conductive liquids, water, and sewage.

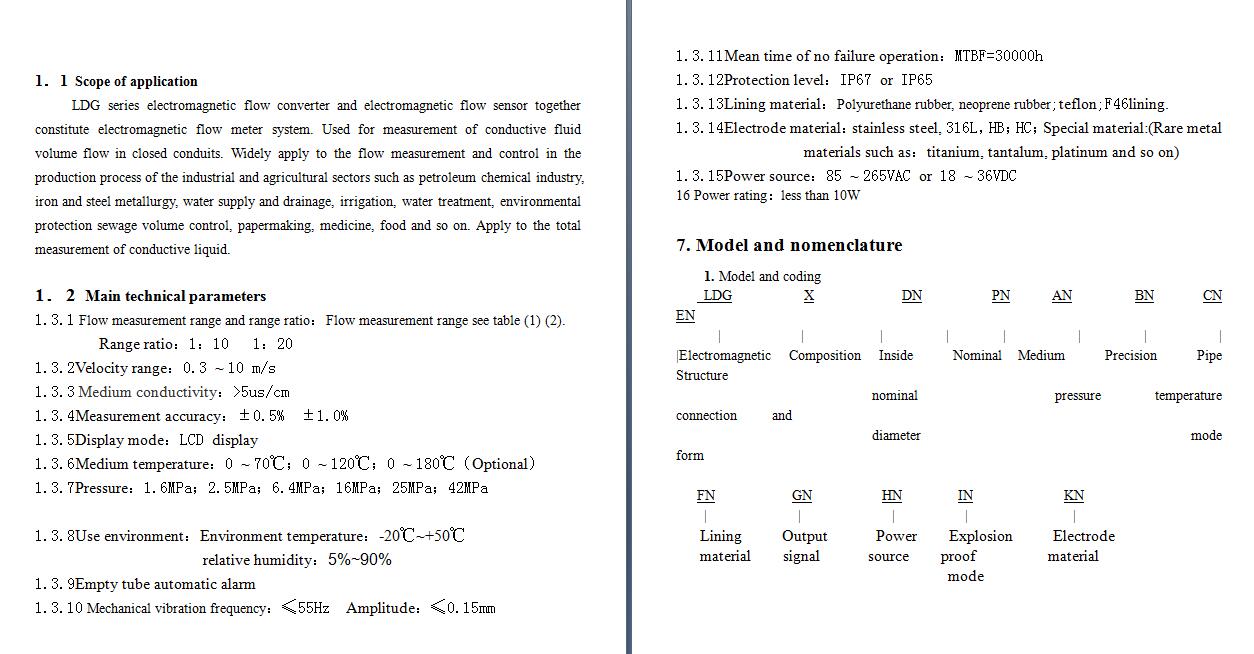

Technical Specifications
Overview
Intelligent Electromagnetic Flowmeter
This integrated electromagnetic flowmeter is designed for the precise measurement of conductive liquid volume flow in closed conduits. Utilizing Faraday's law of electromagnetic induction, it offers high accuracy and reliability for industrial and agricultural applications, including water treatment, chemical processing, and sewage management. The device features an integrated design with an easy-to-read LCD display, ensuring simple installation and real-time monitoring of flow parameters.
Performance & Measurement
Measurement Accuracy
±0.5%±1.0%
Flow Performance
10 :1
Range Ratio
30,000 hours
MTBF
- Velocity Range
- 0.3 - 10 m/s
Technical Specifications
Output Signals
- 4-20mADC
- 2kHz Pulse
- RS-485 Interface
- Power Source
- 85-265VAC18-36VDC
- Protection Level
- IP65 or IP67
Materials & Compatibility
Lining and Electrode Materials
| Component | Options |
|---|---|
| Lining | Polyurethane, Neoprene, PTFE, F46 |
| Electrode | Stainless Steel 316L, Hastelloy HB, Hastelloy HC, Titanium, Tantalum, Platinum |
Environmental Conditions
- Medium Temperature
- 0-70°C0-120°C0-180°C
- Operating Environment
- -20°C to +50°C; 5% to 90% Relative Humidity
