Insulation Piercing Connector for LV-ABC Conductor
Insulation piercing connectors are suitable for LV-ABC conductors within service line, building, and street lighting systems. Installation involves tightening bolts, allowing teeth to penetrate insulation on both the main and tap lines, eliminating the need for stripping.
Technical Specifications
Overview
Insulation Piercing Connector
These insulation piercing connectors are designed for reliable connections in LV-ABC conductor systems, including service lines, building electrical systems, and street lighting. Installation is efficient and safe, as the design eliminates the need for stripping insulation from either the main or tap lines. The connectors feature high-strength, weather-resistant bodies with integrated shear-head bolts to ensure proper contact pressure and long-term performance.
Technical Specifications
Dielectric Voltage Test
6 kV
Voltage
Key Features
- Shear-head bolt for controlled torque
- Waterproof and corrosion resistant
- Integrated end cap
- No loose parts during installation
- Compliance Standards
- EN 50483-4NF C 33-020NF C 33-004
Compatibility
Tap Line Material
Insulated aluminium wireInsulated copper wire
- Main Line Material
- Insulated aluminium wire
- Applications
- Service line systemBuilding electrical systemStreet lighting system
Product Data
Model Specifications

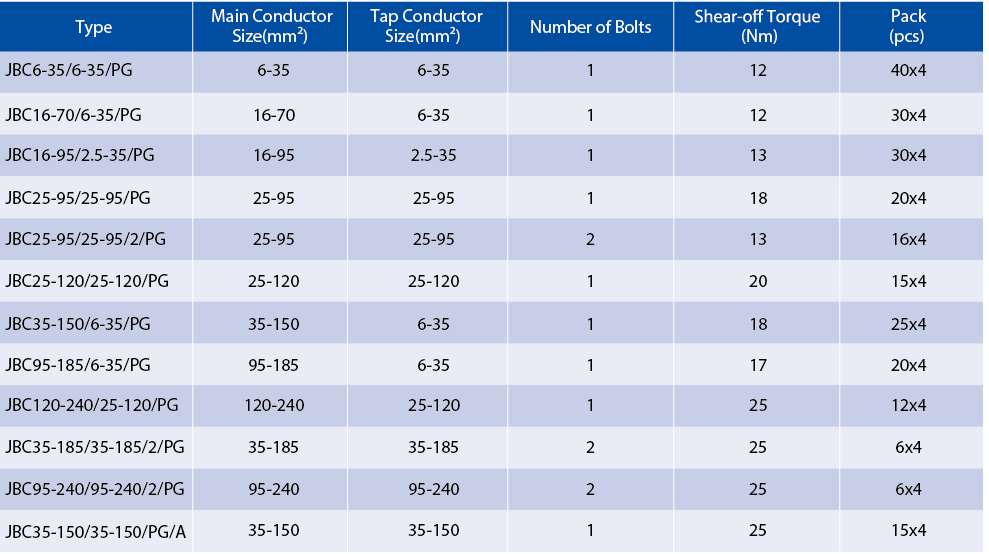

| Type | Main Conductor (mm²) | Tap Conductor (mm²) | Bolts |
|---|---|---|---|
| JBC6-35/6-35/PG | 6-35 | 6-35 | 1 |
| JBC16-70/6-35/PG | 16-70 | 6-35 | 1 |
| JBC16-95/2.5-35/PG | 16-95 | 2.5-35 | 1 |
| JBC25-95/25-95/PG | 25-95 | 25-95 | 1 |
| JBC25-95/25-95/2/PG | 25-95 | 25-95 | 2 |
| JBC25-120/25-120/PG | 25-120 | 25-120 | 1 |
| JBC35-150/6-35/PG | 35-150 | 6-35 | 1 |
| JBC95-185/6-35/PG | 95-185 | 6-35 | 1 |
| JBC120-240/25-120/PG | 120-240 | 25-120 | 1 |
| JBC35-185/35-185/2/PG | 35-185 | 35-185 | 2 |
| JBC95-240/95-240/2/PG | 95-240 | 95-240 | 2 |
| JBC35-150/35-150/PG/A | 35-150 | 35-150 | 1 |
