Insulation Piercing Connector for Low Voltage Cables
This insulation piercing connector is designed for low voltage aerial cables. It is used to establish connections between bare cable and insulated aluminum or copper cable.
Technical Specifications
Product Overview
Insulation Piercing Connector for Low Voltage Cables
This insulation piercing connector is designed for efficient and reliable branch connections in low voltage aerial cable systems. It facilitates seamless connectivity between bare main lines and insulated tap lines without the need for stripping insulation, significantly simplifying installation. Engineered with high-strength, weather-resistant materials, it features a specialized shear-off bolt mechanism that ensures optimal contact pressure and long-term electrical integrity.
Technical Specifications
Key Features
- Waterproof and corrosion resistant design
- Elastic seal with silicone grease
- Integrated end cap to prevent loose parts
- Controlled shear-off torque bolt
- Suitable for bare aluminum and insulated copper/aluminum cables
- Compliance Standards
- EN 50483-4NF C 33-020NF C 33-004
Product Models

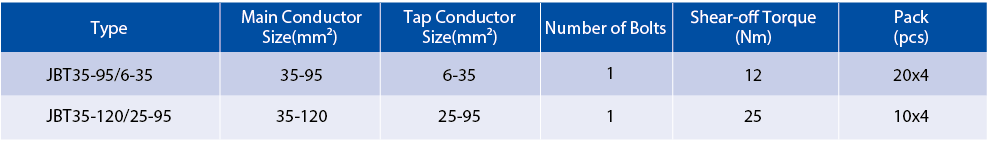

Model Specifications
| Model | Main Conductor (mm²) | Tap Conductor (mm²) | Torque (Nm) | Pack (pcs) |
|---|---|---|---|---|
| JBT35-95/6-35 | 35-95 | 6-35 | 12 | 20x4 |
| JBT35-120/25-95 | 35-120 | 25-95 | 25 | 10x4 |
