Insulation Piercing Connector for Low Voltage Aerial Cables
Insulation piercing connectors are designed for low voltage aerial cable applications. They establish T-connections and joint-connections, piercing the main line without stripping insulation.
Technical Specifications
Product Overview
Insulation Piercing Connector
These insulation piercing connectors are designed for reliable T-connections and joint-connections in low voltage aerial cable systems. The connector features a high-strength aluminum alloy construction that ensures stable performance and excellent mechanical strength. Its specialized design allows for installation without stripping the main line insulation, while the shear head bolt ensures controlled torque for optimal contact pressure.
Technical Specifications
Key Features
- Insulation piercing technology (no stripping required for main line)
- Shear head bolt for controlled torque
- Superior waterproof insulation sheath
- Maintains mechanical strength of conductor
- Compliance Standards
- EN 50483-4NF C 33-020NF C 33-004
- Material
- High strength aluminium alloy
- Main Line
- Insulated aluminium cable
- Tap Line
- Bare aluminum or bare copper cable
Performance Data
Connector Performance

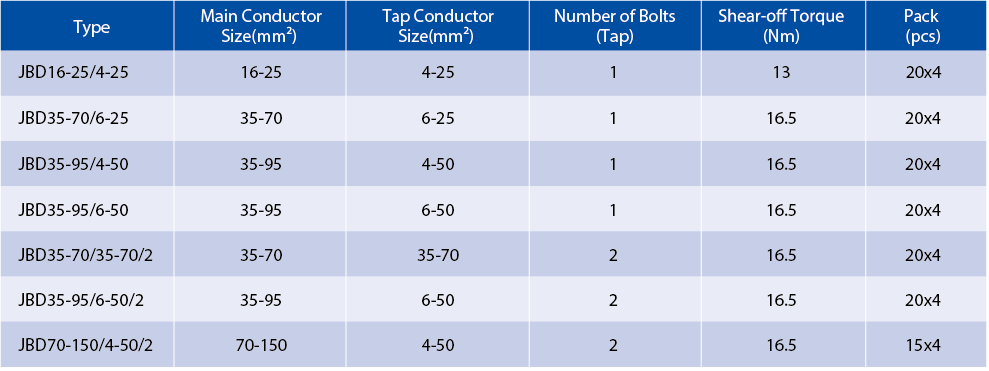

| Type | Main Conductor (mm²) | Tap Conductor (mm²) | Bolts | Shear Torque (Nm) |
|---|---|---|---|---|
| JBD16-25/4-25 | 16-25 | 4-25 | 1 | 13 |
| JBD35-70/6-25 | 35-70 | 6-25 | 1 | 16.5 |
| JBD35-95/4-50 | 35-95 | 4-50 | 1 | 16.5 |
| JBD35-95/6-50 | 35-95 | 6-50 | 1 | 16.5 |
| JBD35-70/35-70/2 | 35-70 | 35-70 | 2 | 16.5 |
| JBD35-95/6-50/2 | 35-95 | 6-50 | 2 | 16.5 |
| JBD70-150/4-50/2 | 70-150 | 4-50 | 2 | 16.5 |
