Technical Specifications
Product Overview

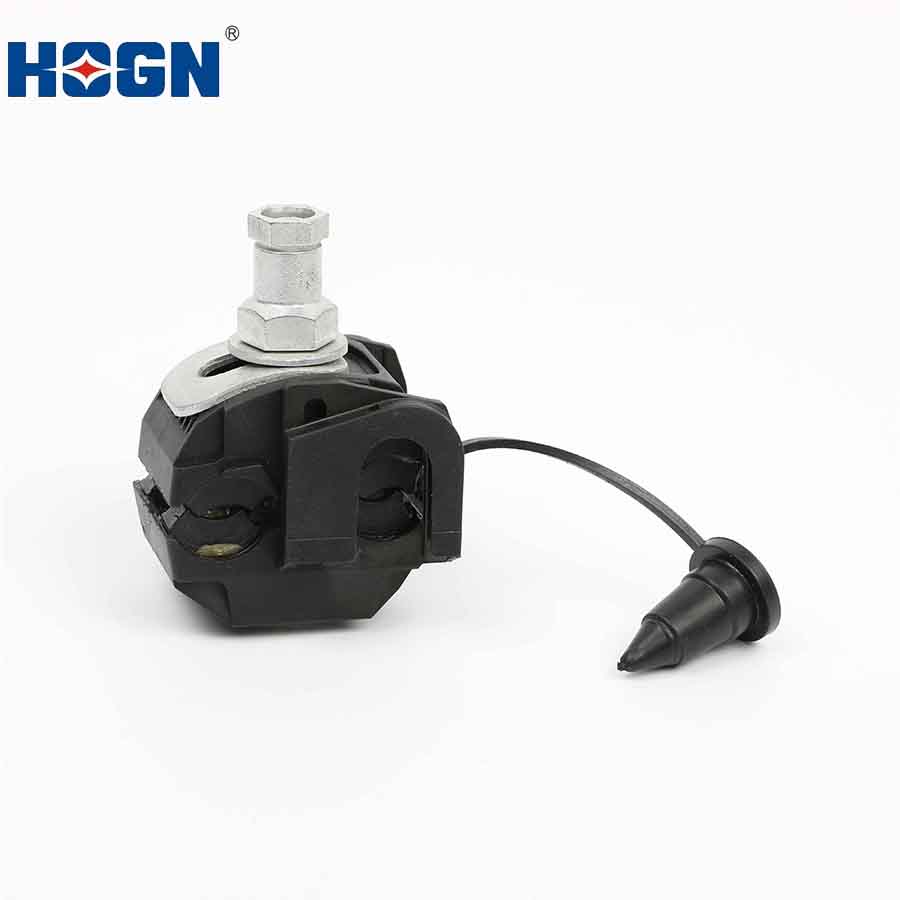

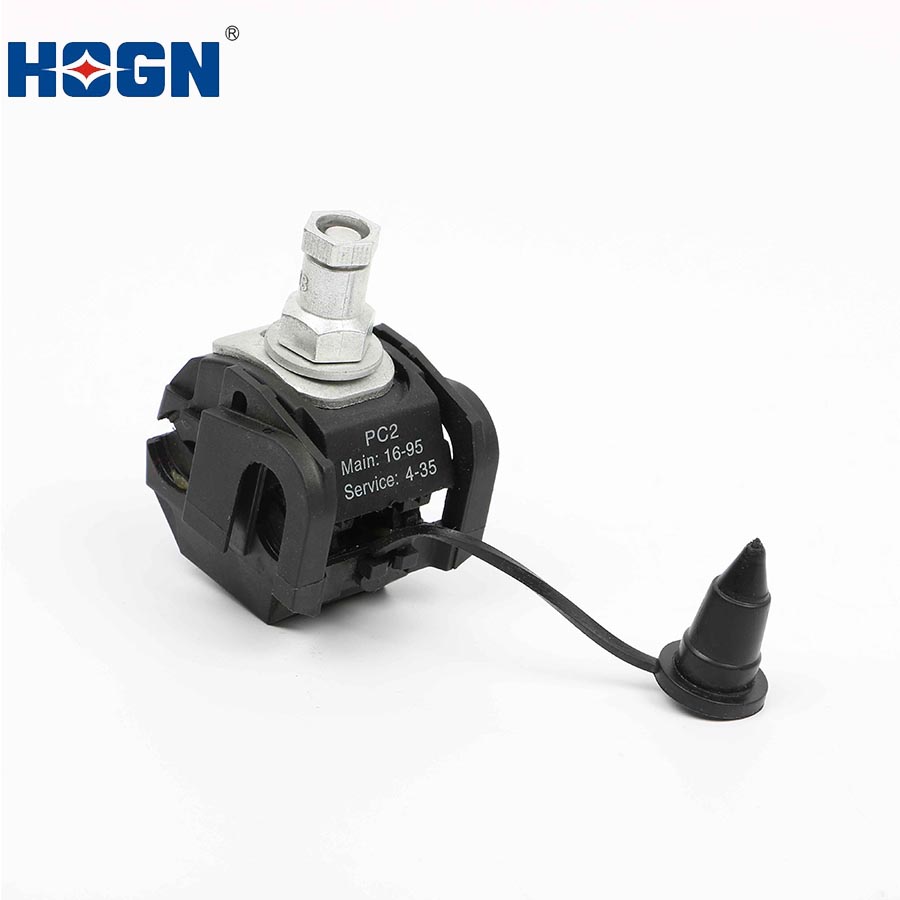

Reliable Insulation Piercing Technology
These insulation piercing connectors are engineered for efficient electrical connections in low voltage overhead and underground distribution networks. By utilizing a specialized tooth design that penetrates insulation upon bolt tightening, the system eliminates the need for manual wire stripping. This process minimizes installation time, prevents conductor damage, and ensures a secure, watertight connection that resists environmental corrosion.
Technical Specifications
- Main Line Conductor Range
- 95 mm²
- Service Line Conductor Range
- 35 mm²
- Primary Applications
- LV-ABC ConductorsService Line SystemsBuilding Electrical SystemsStreet Lighting
Key Features
Installation Advantages
- No wire stripping required
- Simple bolt-tightening installation
- Watertight seal prevents corrosion
- Protective cap included for environmental safety
Performance Highlights
16 mm²
Min Main Line
4 mm²
Min Service Line
