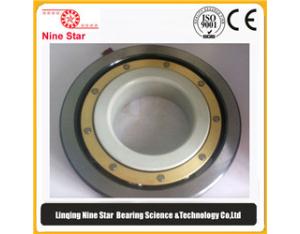

Insulated Deep Groove Ball Bearing 6218/C4VL0241
This is an insulated deep groove ball bearing. It prevents electrical current from passing through the bearing, protecting against electrical erosion.
Technical Specifications
Product Overview
High-Performance Insulated Deep Groove Ball Bearing
This deep groove ball bearing is specifically designed to prevent electrical erosion in demanding industrial applications such as electric motors and generators. Featuring advanced insulation technology on the outer ring, it effectively blocks stray electrical currents to ensure reliable operation and an extended service life. The robust construction provides exceptional load-carrying capacity, making it an ideal solution for reducing maintenance costs in harsh environments.
Technical Dimensions
Physical Dimensions
90 mm
Bore Diameter (d)
160 mm
Outer Diameter (D)
30 mm
Width (B)
Electrical Insulation
Insulation Specifications
| Property | Value |
|---|---|
| Breakdown Voltage | 1000V DC |
| Electrical Resistance | >50MΩ |
| Coated Component | Outer ring |
| Insulation Type | VL0241 |
Product Details
Internal Clearance
C4
- Bearing Type
- Deep groove ball bearing
Logistics & Service
Packaging Methods
- Carton boxes
- Wooden Cases
- Pallets
- Available Services
- NeutralOEMCustom Request
Compliance
- Quality Certifications
- ISO 9001CE
