Insulated Bullet Wire Connectors
These insulated bullet connectors facilitate secure and easily disconnectable connections between two wires. The connectors are insulated with PVC or nylon for electrical and mechanical protection.
Technical Specifications
Product Overview
High-Performance Insulated Bullet Connectors
These insulated bullet and socket terminals are designed for secure, reliable electrical connections in power cable systems and electronic equipment. Constructed from high-purity 99.99% T2 copper tubing with a tin-plated surface, they ensure excellent conductivity and corrosion resistance. Suitable for a wide range of operating environments, these connectors are compatible with both PVC and nylon insulation standards.
Technical Specifications
- Material
- 99.99% pure copper tube T2
- Surface Finish
- Tin-plated
- Insulation Materials
- PVCNylon
- Minimum Operating Temperature
- -55 °C
- Maximum Operating Temperature
- 150 °C
Dimensions and Compatibility
Connector Dimensions and Wire Range
| Item No | OD (mm) | ID (mm) | Wire Range (mm²) | AWG | Color |
|---|---|---|---|---|---|
| F1.25A | 3.96 | 3.9 | 0.57-1.25 | 18-16 | Red |

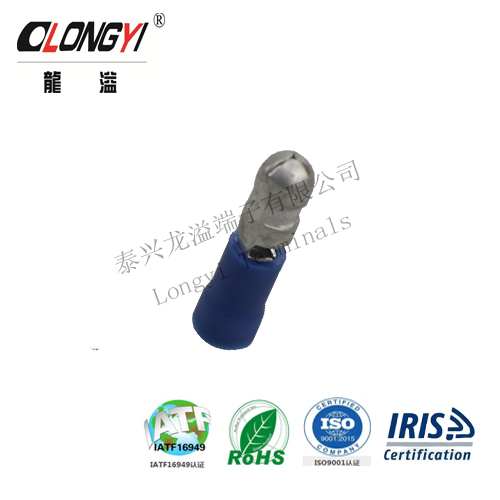

| F2A(4) | 3.96 | 4.2 | 1.25-2.0 | 16-14 | Blue |
| F2A(5) | 4.96 | 4.2 | 1.25-2.0 | 16-14 | Blue |

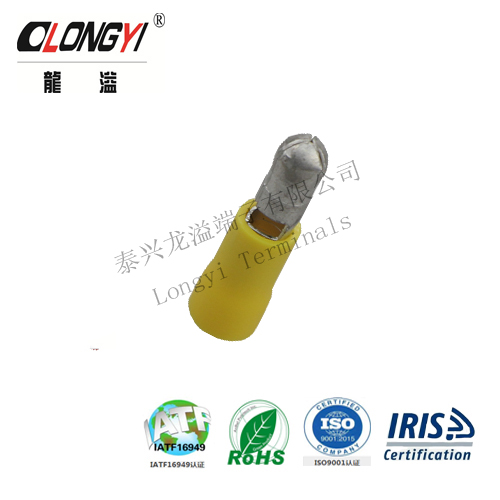

| F5.5A(4) | 3.96 | 5.5 | 2.63-6.64 | 12-10 | Yellow |
| F5.5A(5) | 4.96 | 5 | 2.63-6.64 | 12-10 | Yellow |
