Inline Circulation Pump
Single-stage centrifugal pumps designed for inline installation. They feature a high-temperature seal suitable for heating systems and a YE3 high-efficiency motor with IP55 protection.
Technical Specifications
Product Overview
Industrial Inline Circulation Pump
The PT Series is a high-performance single-stage centrifugal pump designed for reliable circulation in industrial and commercial heating or cooling systems. Built with a compact and robust inline design, it features an energy-efficient YE3 motor with IP55 protection for continuous, demanding operation. Quality components such as NSK bearings, stainless steel impellers, and corrosion-resistant coatings ensure longevity and minimal maintenance requirements in various fluid transfer applications.

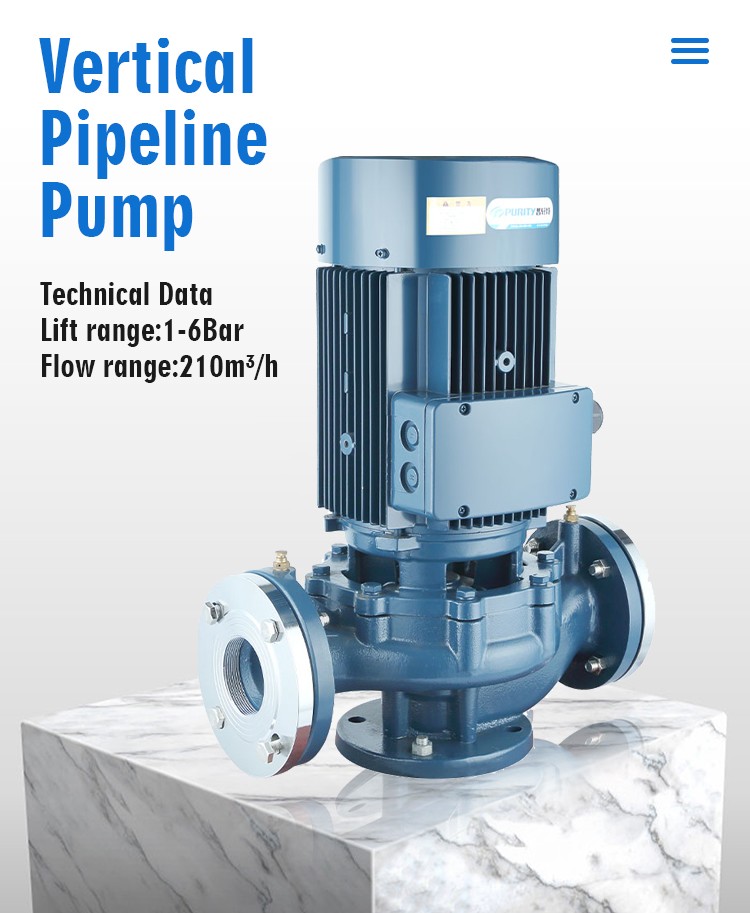

Technical Performance
Key Performance Indicators
6 Bar
Maximum Lift
210 m³/h
Flow Range
Certification & Warranty
Energy-saving Certified2-Year Guarantee
- Core Features
- YE3 High Efficiency MotorIP55 Class F InsulationInline DesignContinuous DutyAnti-corrosive CoatingAll Copper Wiring

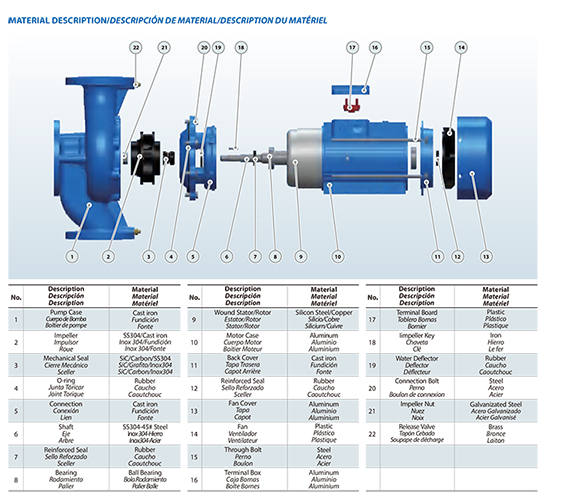

Construction & Materials
Material Composition
- Pump case: Cast iron with anti-corrosive coating
- Impeller: SS304 stainless steel or cast iron
- Shaft: SS304/45# steel
- Mechanical seal: SIC/Carbon/SS304
- Motor housing: Aluminum
- Bearing: NSK precision ball bearing
