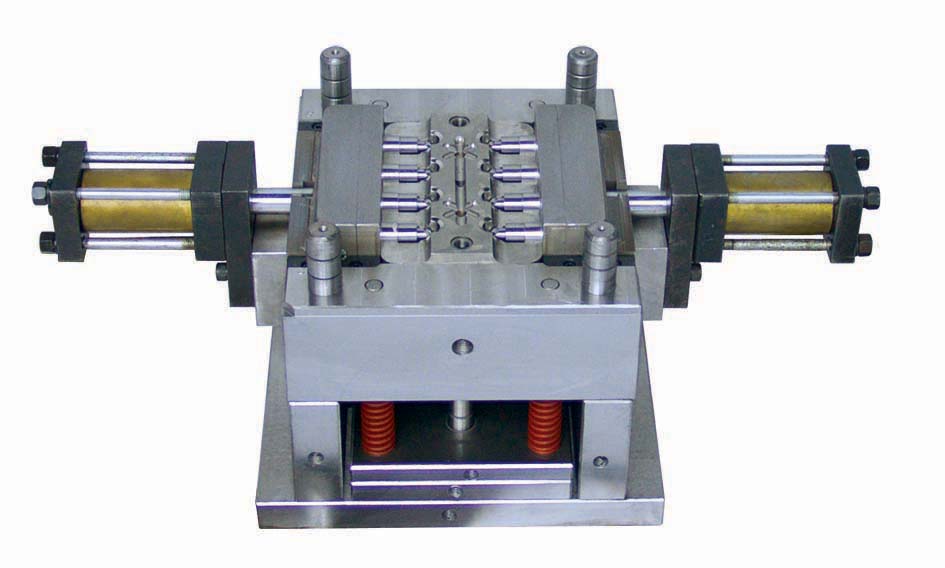

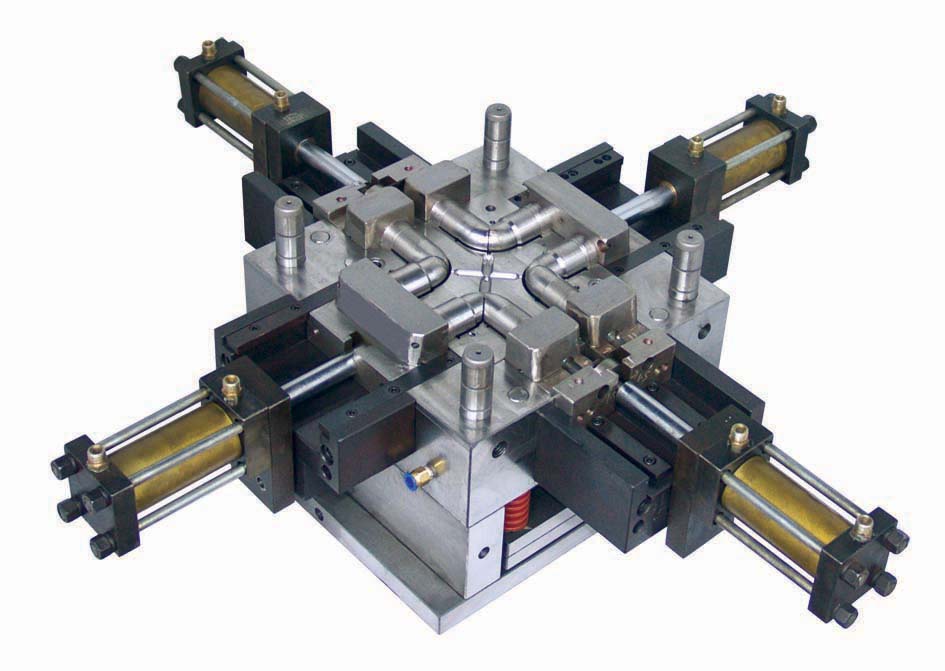

Injection Molding Tool
This precision-engineered mold is designed for plastic or rubber injection molding processes, creating multiple parts simultaneously. It features intricate internal channels for material flow and cooling, making it ideal for high-volume production.
Technical Specifications
Product Overview
Precision Injection Molding Solution
This high-precision injection molding tool is engineered for consistent performance in high-volume production environments. Designed using advanced CAD/CAM/CAE software and manufactured with CNC machining, it ensures high dimensional accuracy and long service life. The robust construction is optimized for both plastic and rubber injection molding applications.
Technical Specifications
Key Features
- Hydraulic cylinders for automated operation
- Guide pillars for accurate alignment
- Spring-loaded ejection mechanisms
- Intricate internal cooling channels
Manufacturing Standards
CNC MachinedCAD/CAM/CAE DesignedHigh Dimensional Accuracy
- Construction Materials
- High-grade SteelSteel Plates
Application
Typical Output
- Plumbing fittings
- Elbows
- Couplings
- Tees
- Suitable Materials
- PlasticRubberPVC
