Injection Molding Machine
This injection molding machine is designed for precision plastic part manufacturing. It offers efficient material feeding, precise temperature control, and consistent molding cycles to ensure high-quality output.
Technical Specifications
Overview

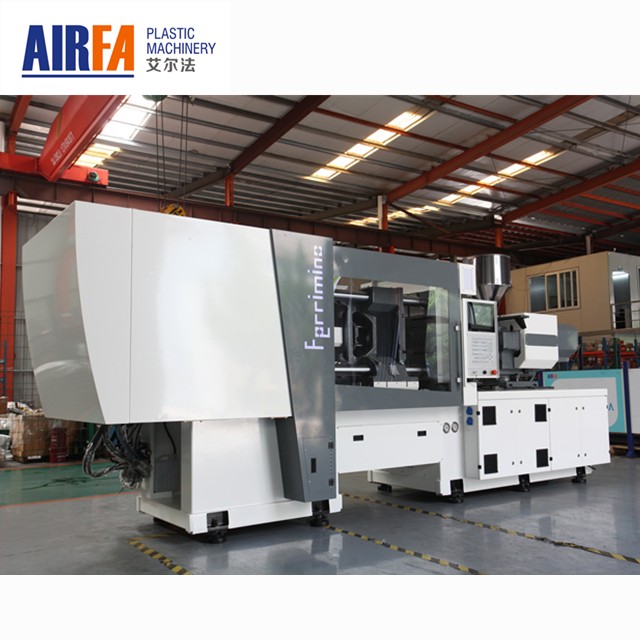

AF Series Injection Molding Machine
The AF Series is a high-performance injection molding machine engineered for precision plastic part manufacturing. It utilizes advanced linear motion guides and a servo-controlled energy-saving system to deliver reliable, high-speed production. Designed with a robust clamping unit and a sophisticated electrical control system, this machine provides optimal solutions for complex injection molding applications.
Performance Metrics
Energy Savings
30 %
Min Energy Savings
80 %
Max Energy Savings
- Repeatability Precision
- 0.3 %

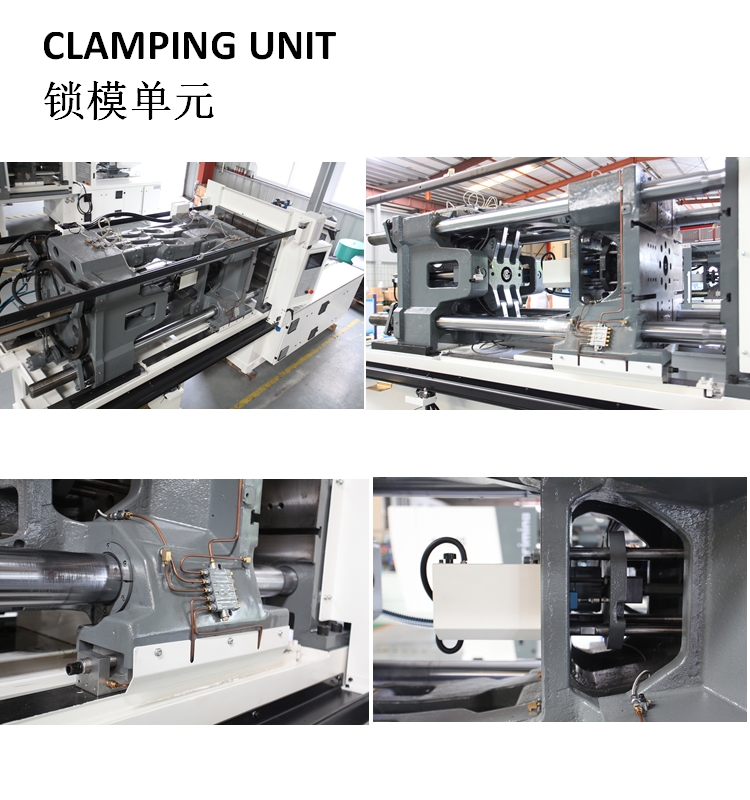

Clamping Unit
Key Features
- Optimized Platen Design with high rigidity
- Euromap-based Platen Layout with T-slot & tap holes
- Hydraulic driven gear-type mold height adjustment
- Enhanced linkage structure for front connecting rod

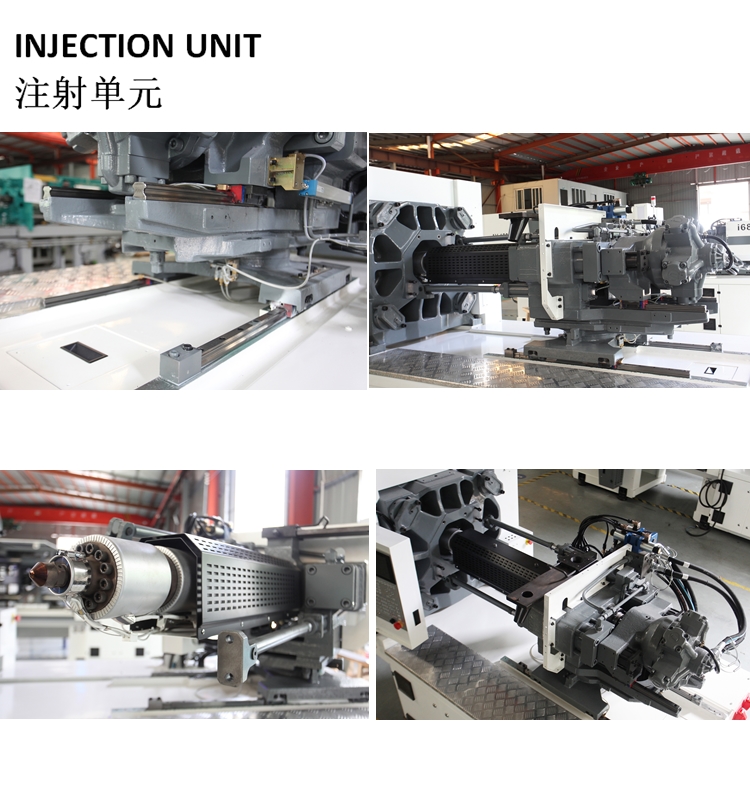

Injection Unit
Injection Capabilities
- High-quality Linear Motion Guide
- High-speed & Pressure injection structure
- Twin nozzle cylinder for stable structure
- Specialized screw barrel design

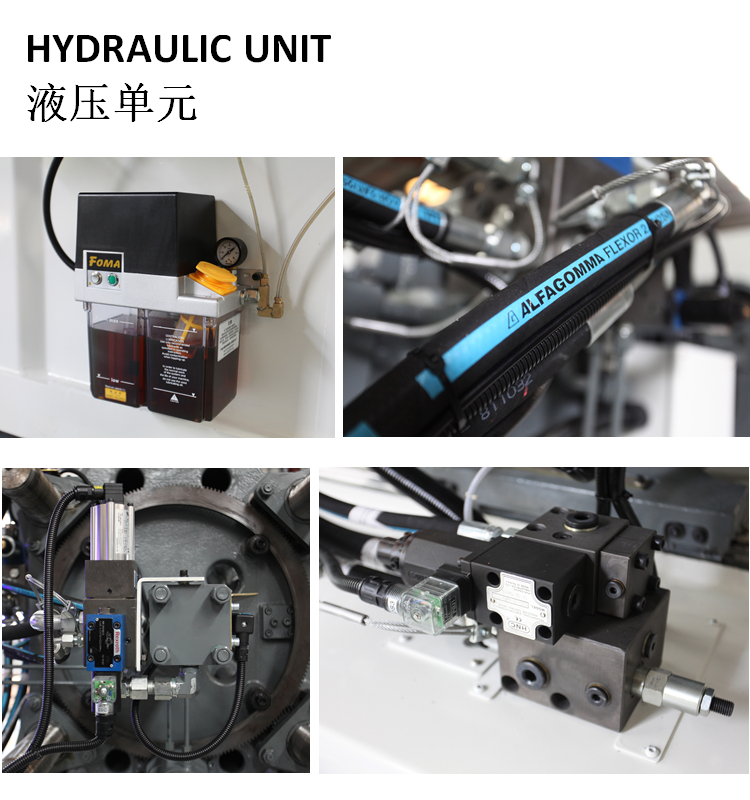

Hydraulic System
- System Components
- Double proportional compound valveServo hydraulic systemLow pressure mold protect systemIndependent lubrication system

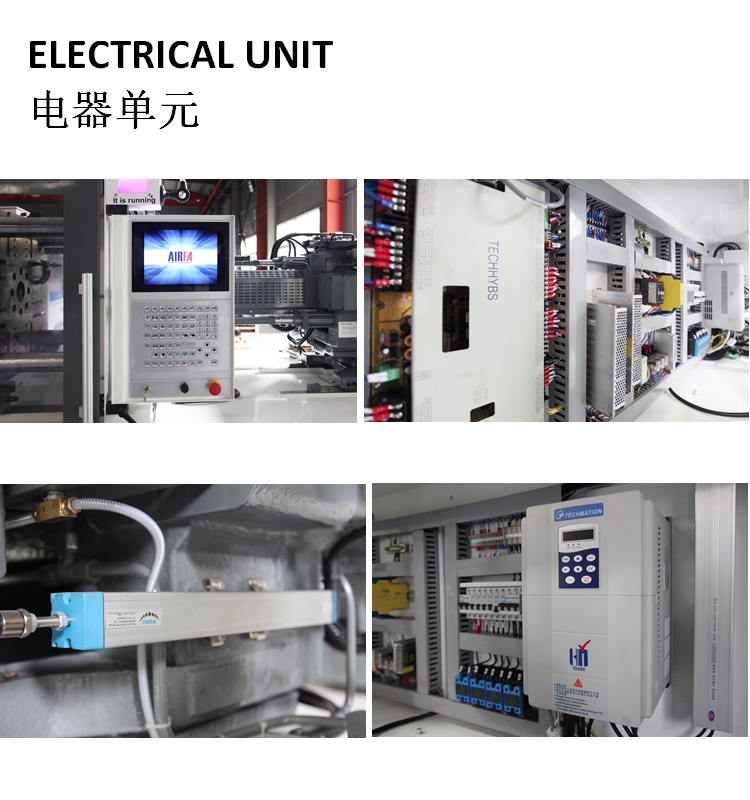

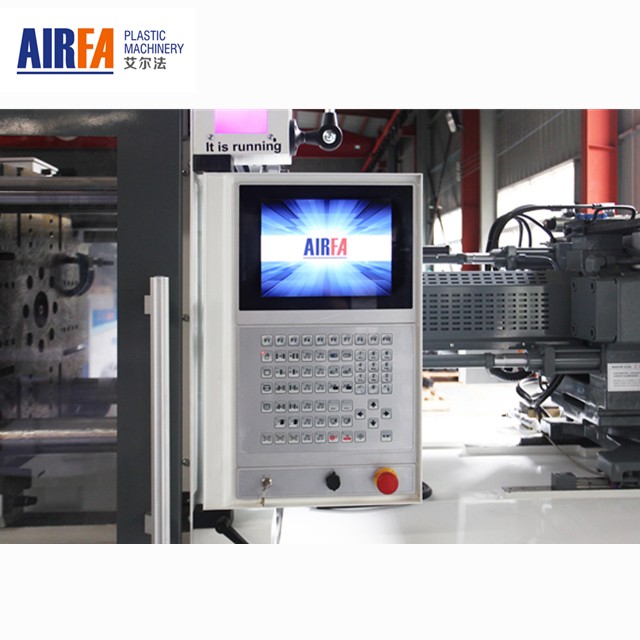

Electrical System
Control System Specifications
| Feature | Specification |
|---|---|
| Display | 8.4 inch, 800x600 resolution |
| Processor | RISC 140MHz |
| Connectivity | USB 2.0, Ethernet 100-base T |
| Transducer Resolution | 1/65535 |
