Industrial Ventilation Fan
This high-efficiency draught fan is designed for industrial applications. It provides optimal airflow and pressure, ensuring efficient ventilation and exhaust in various industrial settings.
Technical Specifications
Product Overview

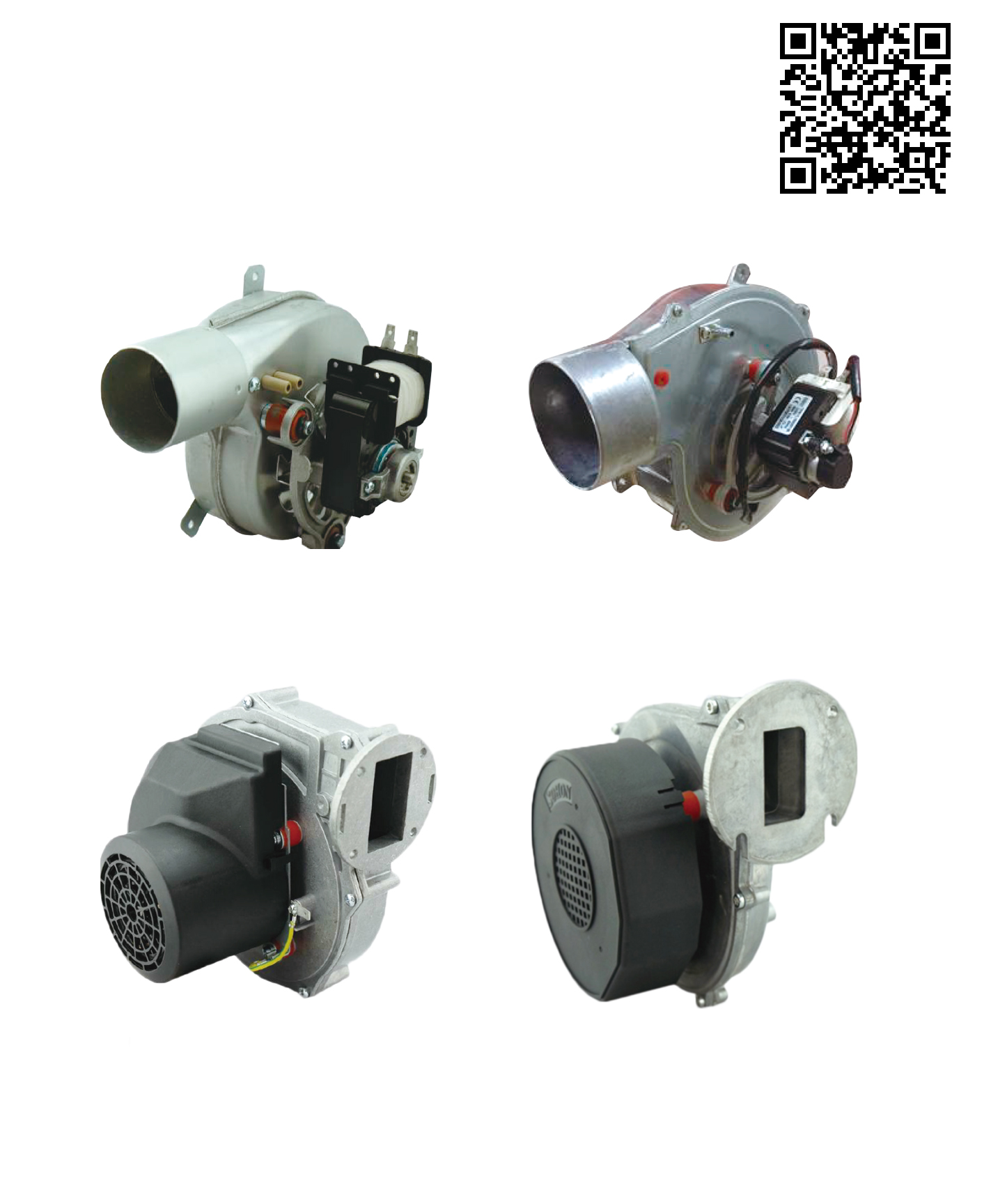

High-Efficiency Industrial Gas Blower
This industrial-grade gas blower is engineered for reliable performance in demanding environments, featuring robust construction and a precision-balanced impeller for smooth operation. Designed for applications such as boilers, pellet stoves, and industrial ventilation, it handles high flue temperatures while maintaining consistent airflow. The unit includes advanced features like motor anti-vibration mounting and an integrated speed encoder for precise control, making it an ideal choice for HVAC and process cooling systems.
Technical Specifications
Electrical Performance
230 V
Voltage
50 Hz
Frequency
70 W
Input Power
0.6 A
Current
Operational Performance
2,300 RPM
Speed
160 m³/h
Air Volume
320 Pa
Static Pressure
Temperature Tolerance
| Condition | Max Temp |
|---|---|
| Continuous | ≤180°C |
| Instantaneous | ≤240°C |
Construction & Features
- Key Features
- Insulation Class HMotor Anti-Vibration MountedBlack Painted HousingSpeed Encoder Included
Applications
Common Applications
- Centrifugal Blowers
- Boiler Fans
- Burner Blowers
- Pellet Stove Fans
- Water Heater Blowers
- Washing and Drying Machine Fans
- HVAC Systems
- Process Cooling
