Technical Specifications
Overview
High-Performance Industrial Ventilation

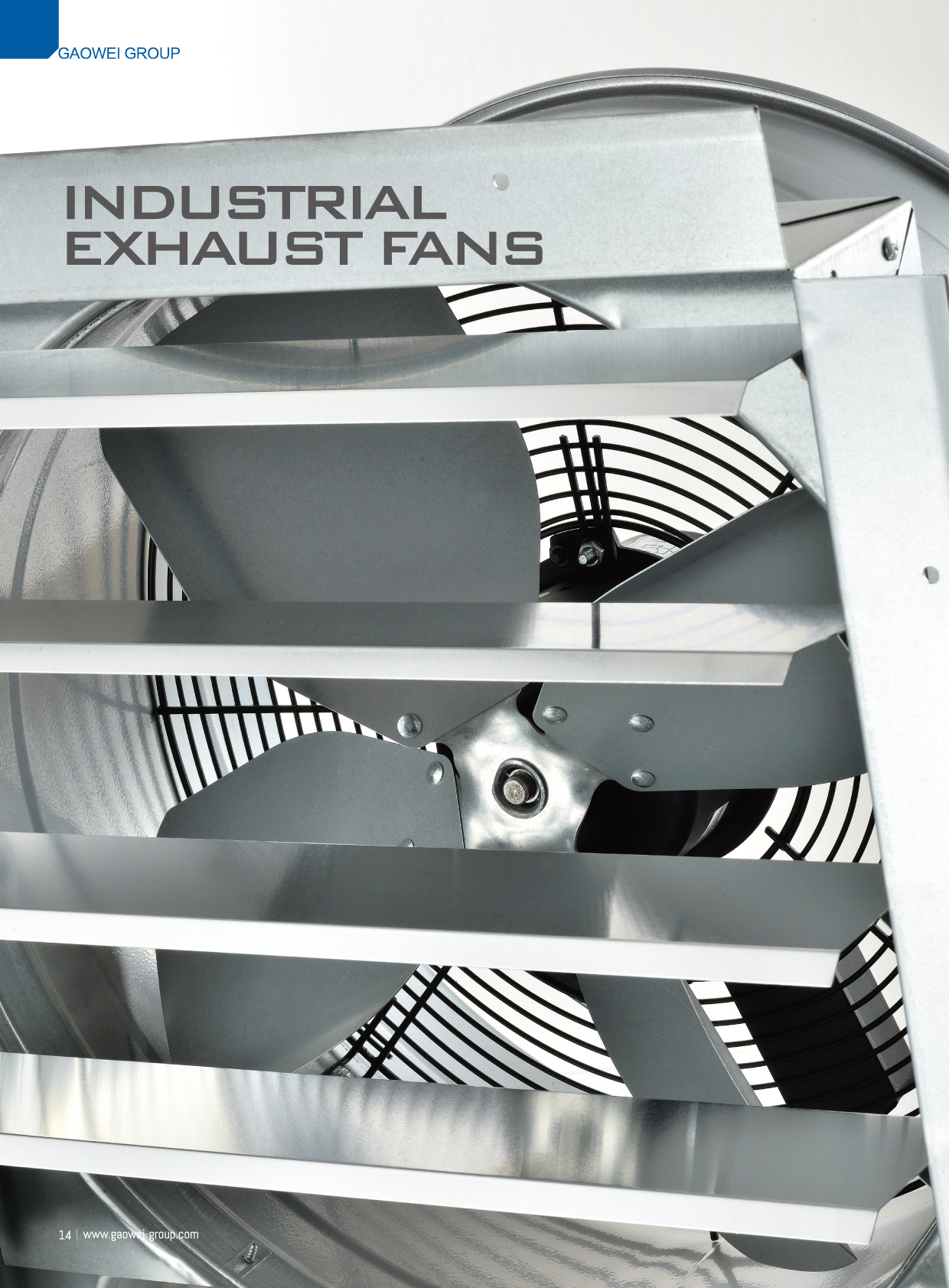

This industrial exhaust fan is engineered with durable galvanized steel housing, offering superior resistance to rust and heat for long-lasting operation in demanding environments. Equipped with a high-efficiency motor, it provides exceptional air volume while maintaining low noise levels and energy savings. It is an ideal ventilation solution for a variety of commercial, industrial, and agricultural settings, including warehouses, factories, and farms.
Key Features
- Key Features
- Galvanized Steel HousingRust ResistantHeat ResistantHigh EfficiencyEnergy SavingLow Noise
Technical Specifications
Performance Metrics
5,500 m³/h
Max Air Volume
1,380 RPM
Max Rotation Speed
570 W
Max Input Power
Model Comparison Table
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Air Vol (m³/h) |
|---|---|---|---|---|---|
| GFP14 | 120 | 1.9 | 220 | 1,380 | 1,400 |
| GFP18 | 120 | 2.7 | 300 | 1,100 | 2,800 |
| GFP30 | 120 | 5.2 | 570 | 1,050 | 5,500 |
Electrical Requirements
- Voltage: 120V
- Frequency: 60Hz
- Capacitor Range: 16-32µF
Applications
Suitable Environments
CommercialIndustrialAgriculturalWarehouseFactoryFarm
