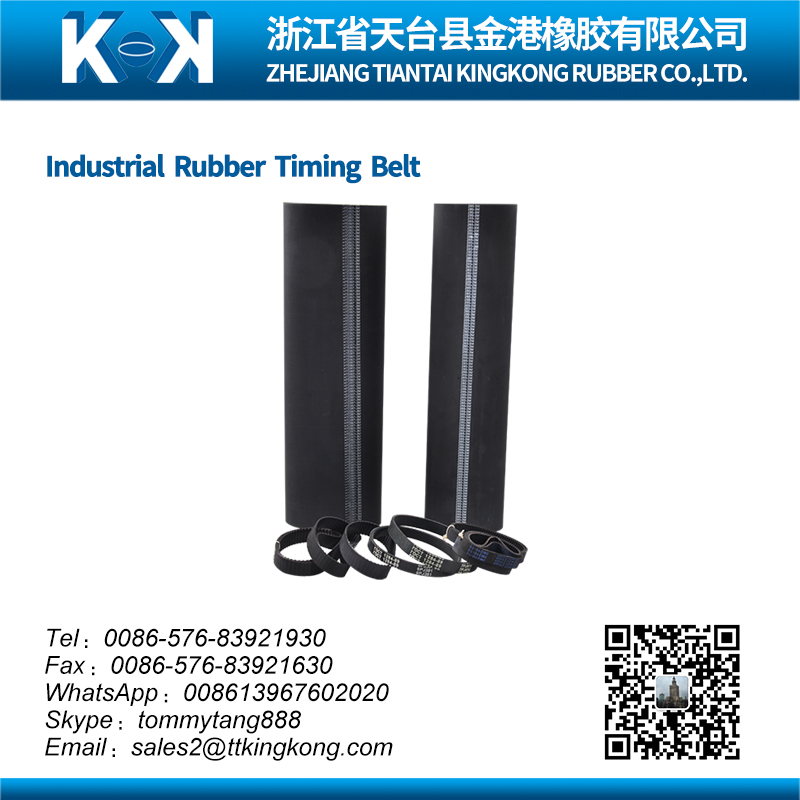

Industrial Synchronous Timing Belt
This industrial timing belt is designed for optimal power transmission and lasting durability. Premium rubber compounds provide resistance to wear, heat, and chemical degradation.
Technical Specifications
Product Overview
High-Performance Synchronous Timing Belt
This industrial synchronous timing belt is engineered for precision power transmission in mechanical equipment. Constructed from premium rubber compounds, it offers exceptional resistance to heat, wear, and chemical degradation. Its precision-molded teeth ensure accurate engagement with pulleys, minimizing slippage and maintaining consistent timing for stable, low-noise operation.
Performance Characteristics
Operating Limits
50 m/s
Max Transmission Speed
10
Max Speed Ratio
- Key Benefits
- High Transmission EfficiencyLow NoiseNo SlippageOil ResistantMoisture ResistantNo Lubrication Required
Technical Specifications
Available Timing Belt Types
| Type | Pitch (mm) | Tooth Height (mm) |
|---|---|---|
| MXL | 2.032 | 0.51 |
| XXL | 3.175 | 0.76 |
| XL | 5.08 | 1.27 |
| L | 9.525 | 1.91 |
| H | 12.7 | 2.29 |
| T2.5 | 2.5 | 0.7 |
| T5 | 5 | 1.2 |
| T10 | 10 | 2.5 |
| 3M | 3 | 1.17 |
| 5M | 5 | 2.06 |
| 8M | 8 | 3.36 |
- Production Length Range
- 600mm - 3175mm
