Industrial Key Lock Elevator Emergency Push Button Switch
This industrial key lock emergency push button switch is designed for elevator applications. It features an IP68 rating, providing protection against dust and prolonged immersion in water.
Technical Specifications
Product Overview
Industrial-Grade Safety Control

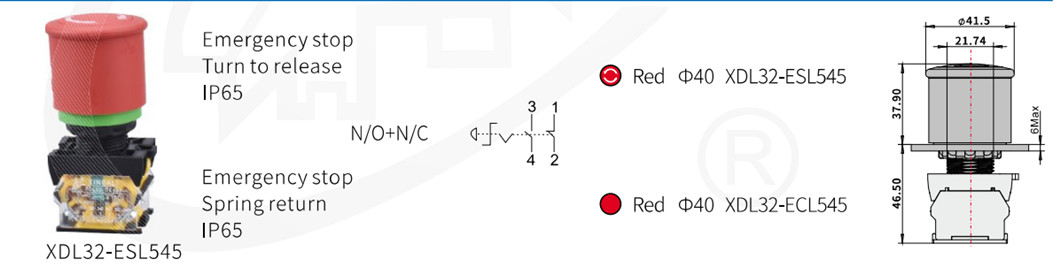

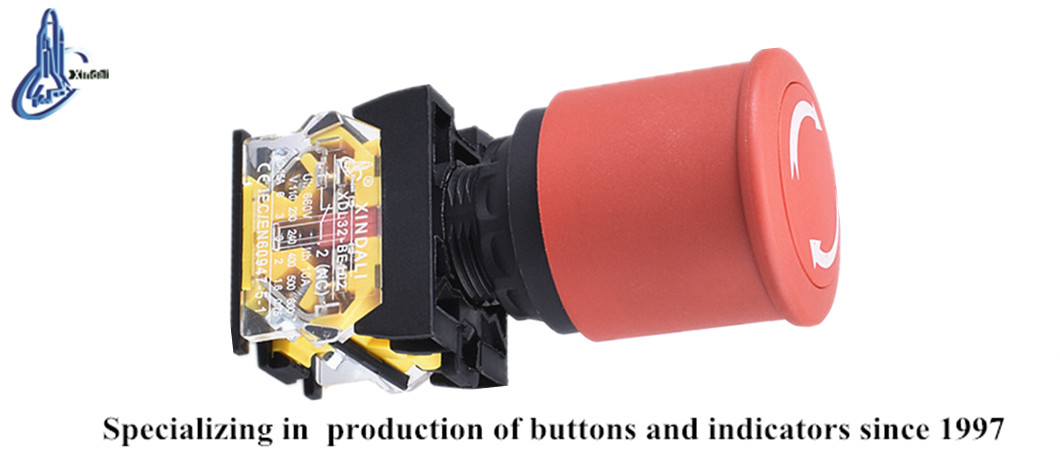

The XDL32-ESL545 is a high-performance emergency push button switch engineered for critical industrial and elevator safety applications. Featuring a robust key-lock mechanism, it provides an essential layer of security by preventing unauthorized resets or activation. The unit is built to withstand demanding environments with an IP68 protection rating, offering superior resistance against dust and prolonged water immersion.
Technical Specifications
Operating Voltage
660 V
Max AC Voltage
400 V
Max DC Voltage
Ingress Protection
IP65IP66IP67IP68
- Certifications & Standards
- CEISO9001ROSHULIEC60947-5-1GB/T14048.1
Environmental Data
Temperature Range
- Operating: -5°C to +55°C
- Storage: -25°C to +70°C
- Relative Humidity
- 35-85% RH
Mechanical Performance
Operating Cycles
| Component | Cycles |
|---|---|
| Standard Button | 3,000,000 |
| Emergency Stop Button | 300,000 |
- Fastening Torque
- 0.8 Nm
