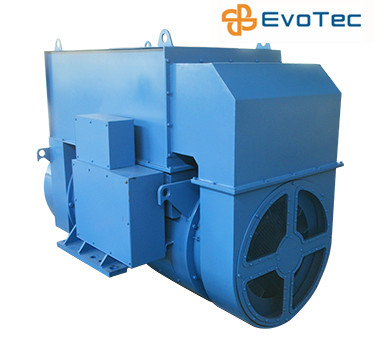

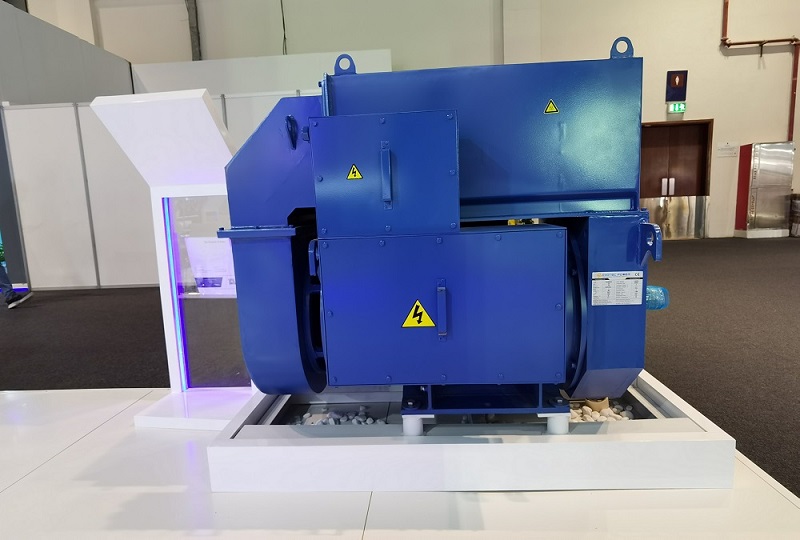

Industrial IP55 Generator
This robust generator is designed for demanding industrial applications. Its IP55-rated enclosure provides excellent protection against dust and water ingress, ensuring reliable operation in harsh environments.
Technical Specifications
Overview
Industrial High-Efficiency Generator
This robust IP55-rated industrial generator is engineered for both continuous (S1) and standby power applications in demanding environments. Featuring a patented high-efficiency winding design and an advanced voltage regulator system, it delivers superior power output with reduced fuel consumption. With its durable construction and intelligent heat dissipation, this generator ensures long-term reliability and stable operation across diverse power systems.
Technical Specifications
Key Performance Metrics
Electrical Characteristics
| Feature | Value |
|---|---|
| Voltage Range | 110V - 690V |
| Phase Configuration | Single / 3-Phase |
| Frequency | 50Hz / 60Hz |
| Voltage Regulation | +/- 1% |
| Insulation Class | H |
Construction & Durability
Operating Conditions
- Ambient temperature range: 27°C to 60°C
- Temperature rise: 80°C to 163°C
- Overload capacity: 10% for 1 hour
- Overspeed tolerance: 1.25 times
Enameled Copper Rotor
The rotor utilizes innovative enameled copper flat wire windings for enhanced reliability. Insulation reinforcement on the first and last three turns of each pole significantly boosts resistance to voltage shocks and extends component life.
- Design & Protection
- IP55 Protection2/3 Winding PitchSingle/Double BearingBuilt-in ExciterRevolving Lamination
