Industrial Gate Valve
This industrial gate valve is designed for fluid control systems. It features a robust ductile iron body with stainless steel trim and is operated by a handwheel.
Technical Specifications
Product Overview

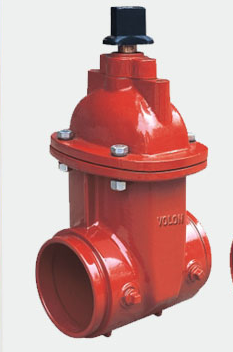

Industrial Resilient Wedge Gate Valve
This robust resilient wedge gate valve is engineered for reliable fluid control in demanding industrial and water distribution systems. Featuring a non-rising stem design and a durable fusion-bonded epoxy coating, it ensures long-term performance and corrosion resistance. It is compatible with both flanged and grooved piping configurations, offering versatility for various installation requirements.
Technical Specifications
Pressure Rating
250 PSI
Rated Pressure
17.2 Bar
Working Pressure
- Max Operating Temperature
- 71 °C
- Coating Specifications
- Electrostatically applied fusion-bonded epoxy (0.2-0.5mm) inside and outside
Design & Construction
Connection Options
- Flanged x Groove
- Groove x Groove
- Key Features
- Non-Rising StemResilient WedgeBolted Bonnet
Compliance & Standards
Standards Compliance
AWWA C509AWWA C550
Maintenance
- Cold Weather Handling
- Valves should be kept in an open position after testing to allow for complete drainage.
