Industrial Flanged Gate Valve for Fluid Control

This industrial gate valve is designed for on/off flow control of fluids in pipelines. It features flanged connections for secure installation and a handwheel for manual operation.

Request a Quote Download PDFPDF

Technical Specifications

Product Overview

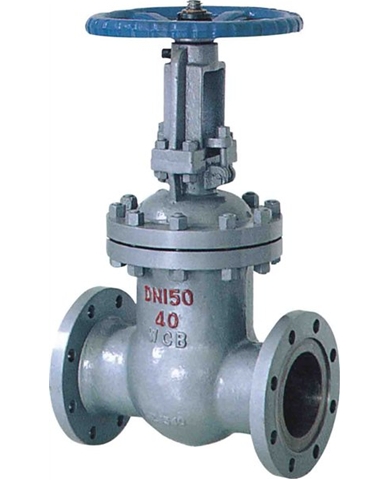

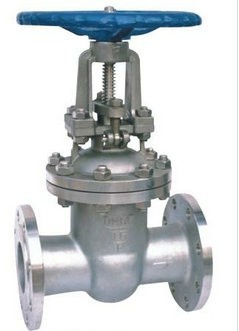

Industrial Flanged Gate Valve

This industrial gate valve is engineered for reliable on/off flow control in demanding pipeline systems. Designed for vertical movement of the gate across the flow path, it provides a secure seal for water, oil, and gas applications. Its robust construction and flanged connections ensure durability and ease of installation in various industrial environments.

Technical Specifications

Available Nominal Diameters (DN): DN50DN150
Pressure Ratings: 40150
Body Material: WCB (Cast Carbon Steel)
Operation: Manual Handwheel
Connection Type: Flanged

Usage Guidelines

Operational Restrictions

Primary use is for full cut-off (on/off) service only
Not suitable for flow throttling or regulation
Avoid micro-opening to prevent high-speed fluid erosion
Recommended for pipelines with diameter DN ≥ 50mm
