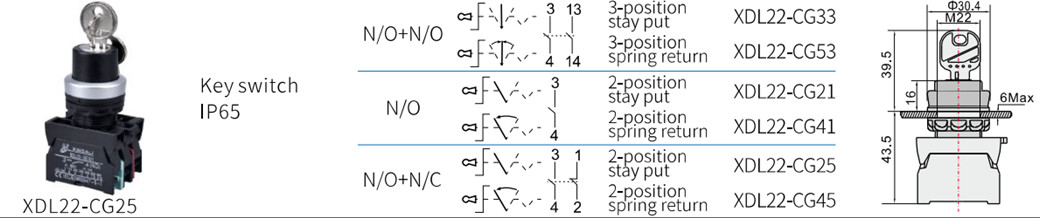

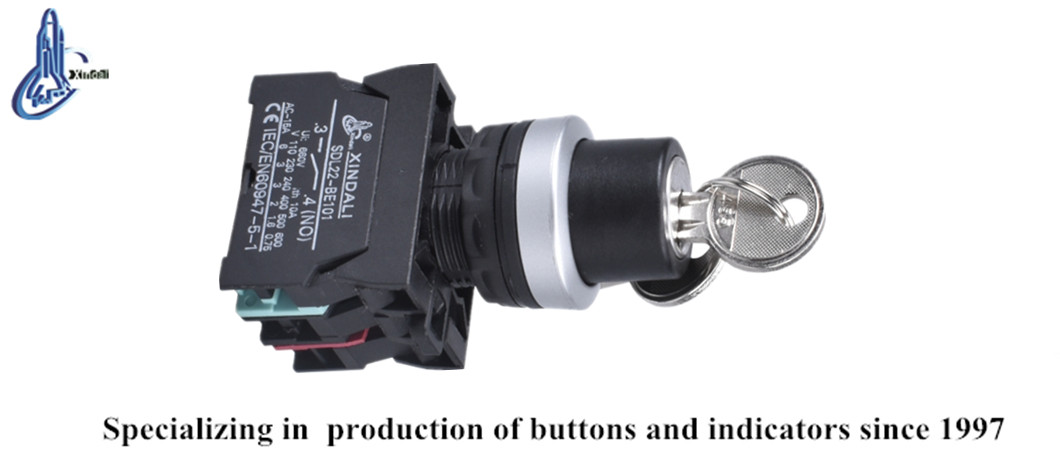

Industrial Elevator 3-Position Key Lock Push Button Switch
This industrial elevator push button switch features a 3-position key lock mechanism. It is designed for reliable operation in demanding environments to ensure secure and controlled access.
Technical Specifications
Overview
Industrial Control Solution
This 3-position key lock push button switch is engineered for demanding industrial control circuits, including elevator systems and signal interlocking. Featuring a robust combination of zinc alloy and high-grade anti-flam plastic, it ensures longevity and reliability. With high resistance to electrical erosion and multiple IP protection levels, it provides a safe, secure interface for mission-critical operations.
Technical Specifications
Voltage/Current Ratings
660 V
Max AC Voltage
400 V
Max DC Voltage
10 A
Thermal Current (Ith)
Environmental Conditions
- Operating Temperature: -5°C to +55°C
- Storage Temperature: -25°C to +70°C
- Relative Humidity: 35% to 85% RH
- Pollution Grade: 3
- Protection & Compliance
- IP40IP54IP65IP66IP67IP68CE CertifiedIEC 60947-5-1GB/T14048
Physical Properties
Construction Materials
- Main Body: Zinc Alloy
- Housing: High-grade anti-flam plastic
- Contact Material: Special silver alloy
Mechanical Specifications
| Metric | Value/Details |
|---|---|
| Fastening Torque | 0.8Nm (Max: 1.2Nm) |
| Installation Sort | Class III |
