Industrial Dust Collection System

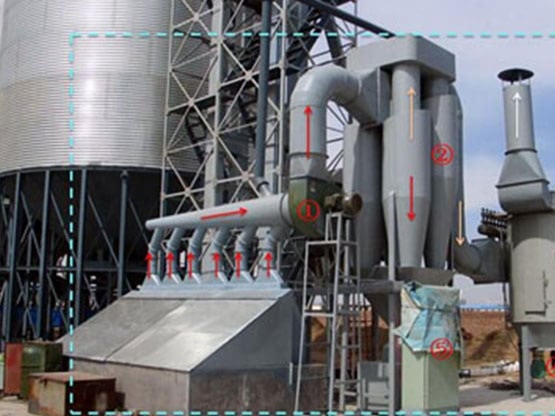

This comprehensive dust removal system is engineered for high-efficiency particulate separation in industrial environments. It integrates dust covers, ventilation ducts, cyclone separators, and fan units into a cohesive network designed to maintain air quality and operational safety. With a focus on optimized airflow and pipeline design, the system minimizes eddy currents and blockage risks, ensuring reliable performance for manufacturing, woodworking, and metalworking applications.

Installation Standards

Design Best Practices

• Use circular cross-sections to prevent dust accumulation in corners
• Connect branch pipes from the top or side of the trunk
• Install dust collectors before the fan to reduce wear
• Avoid supporting pipes directly on equipment shells
• Do not fix ropes or hangers directly to flanges

System Efficiency Metrics

Durability & Application
