Industrial Diesel Engine for Power Generation

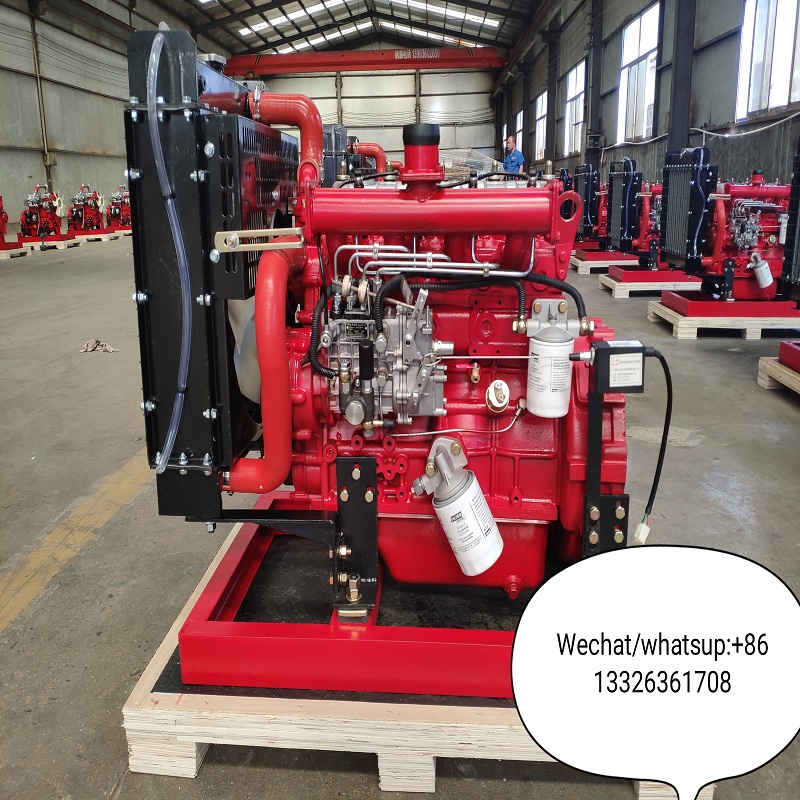

This is a robust diesel engine designed for power generation applications. It features a radiator cooling system, a multi-cylinder configuration, and a fuel injection system for efficient combustion.
Technical Specifications
Overview
Industrial Diesel Engine for Power Generation
This robust 4-cylinder, 4-stroke diesel engine is engineered specifically for reliable power generation applications. Featuring a direct injection combustion system and turbocharging, it delivers consistent performance with an output of 42KW at 3000RPM. Designed with a sturdy base frame and efficient water cooling, it is built to withstand demanding industrial and commercial environments.
Performance Metrics
Output Power
42 KW
Output Power
3,000 RPM
Rated Speed
- Fuel Consumption
- 235 g/kw.h
Technical Specifications
Engine Configuration
| Parameter | Value |
|---|---|
| Cylinders | 4 |
| Cycle | 4-stroke |
| Combustion System | Direct injection |
| Inspiration | Turbo charging |
| Compression Ratio | 17.5:1 |
- Cooling & Lubrication
- Water coolingCombined pressure and splash lubrication
Physical Dimensions
Physical Specs
- Dimensions: 1000 x 600 x 1200 mm
- Net Weight: 385 kg
Electrical Systems
Starting Method
12V Electric24V Electric
