Industrial Diesel Engine

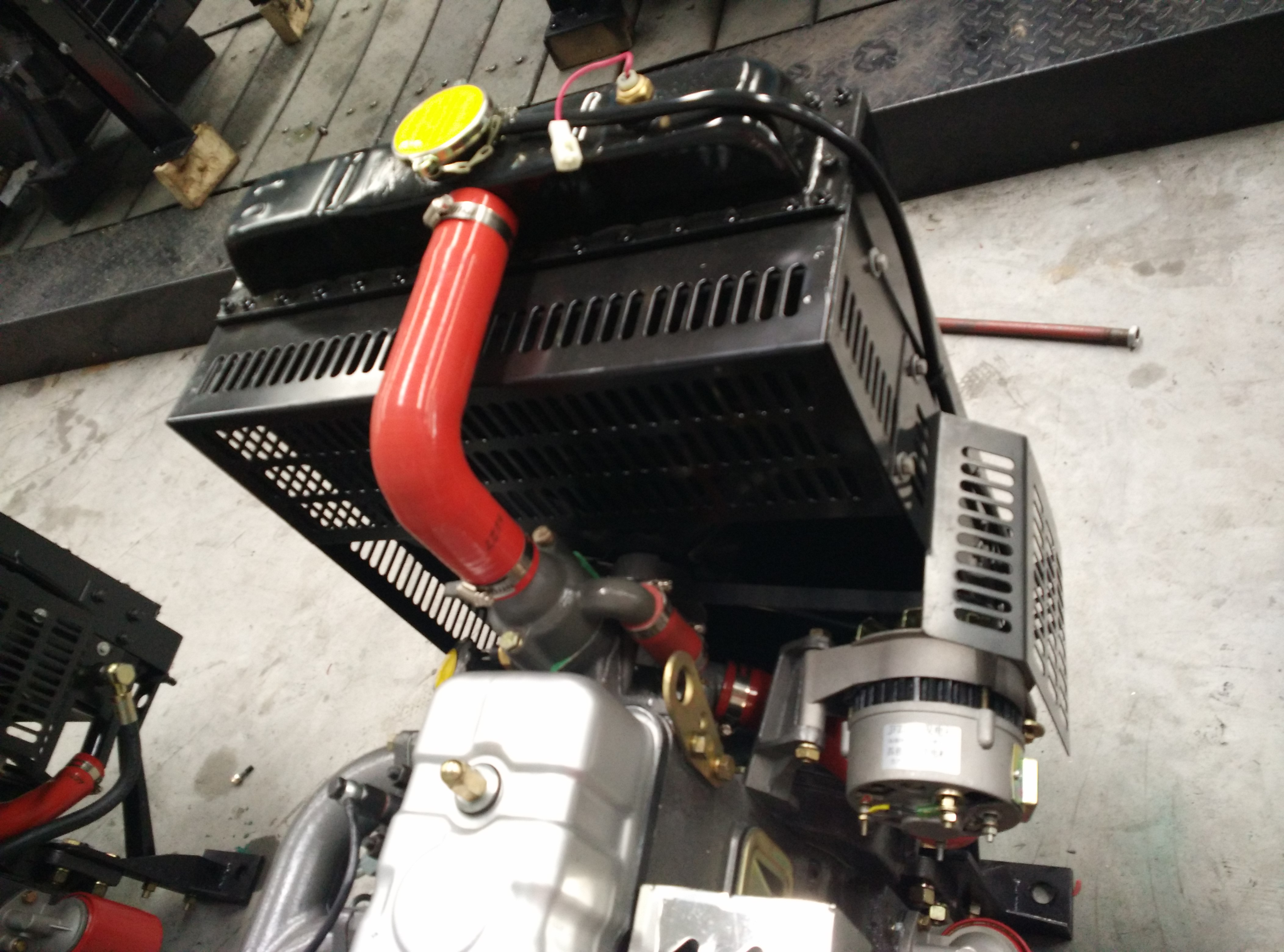

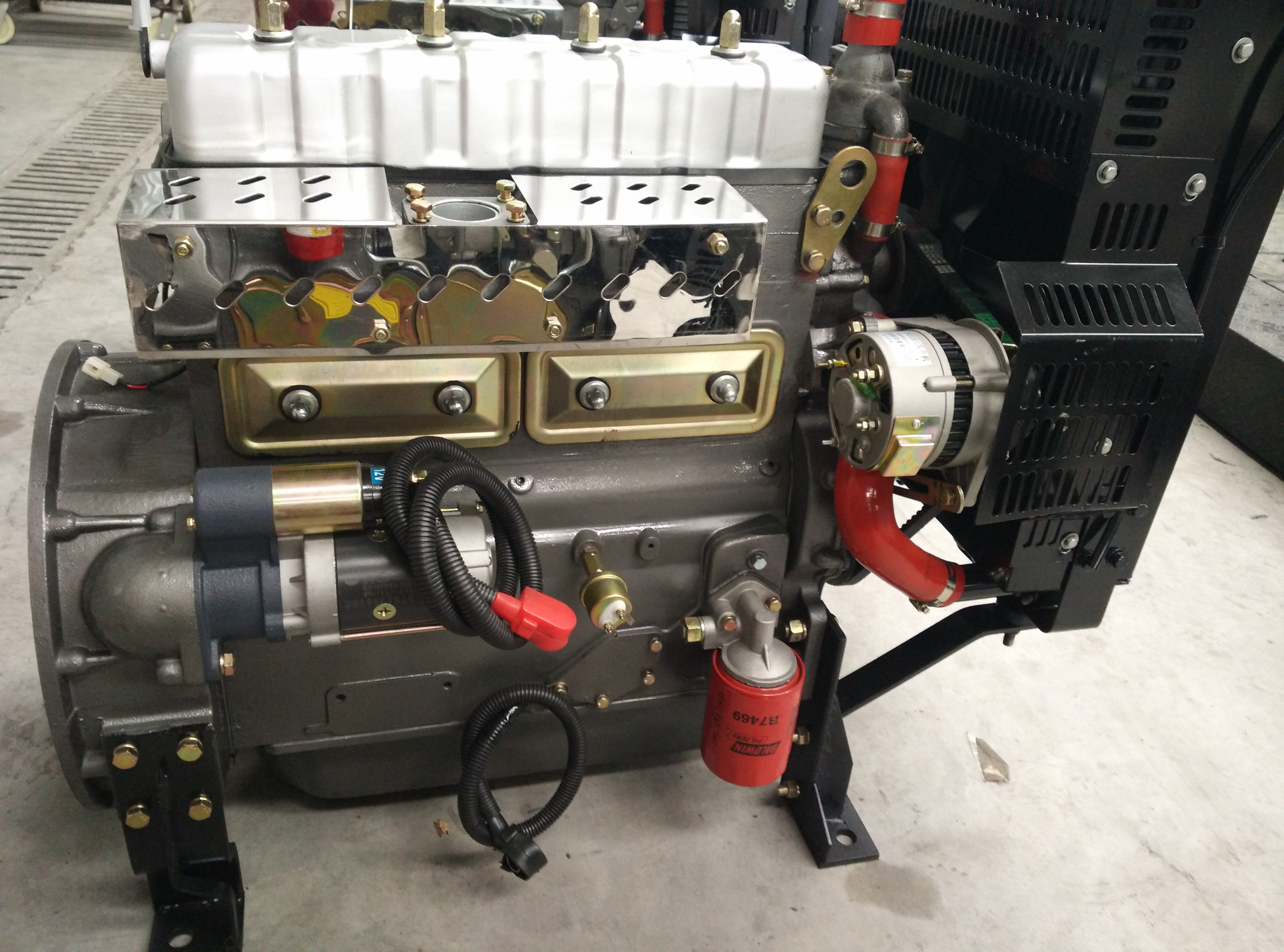

This industrial diesel engine features a robust design with a radiator cooling system and a multi-cylinder configuration. It is equipped with a fuel injection system and an oil filtration unit.
Technical Specifications
Overview
Industrial Diesel Engine 4100D
The 4100D is a robust 4-cylinder, 4-stroke industrial diesel engine engineered for reliable power generation. Featuring a direct injection combustion system and turbocharging, it delivers consistent performance with a power output of 30KW at 1500RPM. Designed for durability and efficiency, this unit is suitable for demanding industrial and agricultural applications.
Performance
Output Power
30 KW
Output Power
1,500 RPM
Rated Speed
- Fuel Consumption
- 258.4 g/kw.h
Engine Architecture
Displacement & Compression
| Parameter | Value |
|---|---|
| Displacement | 3.93 L |
| Compression Ratio | 19:1 |
- Configuration
- 4 Cylinder4 StrokeTurbocharged
- Engine Dimensions
- 1000 x 600 x 1200 mm
- Net Weight
- 380 kg
Technical Specifications
Bore & Stroke
- Bore: 100 mm
- Stroke: 115 mm
Starting Method
12V Electric24V Electric
- Cooling System
- Water cooling
- Lubrication Manner
- Combined pressure and splash
