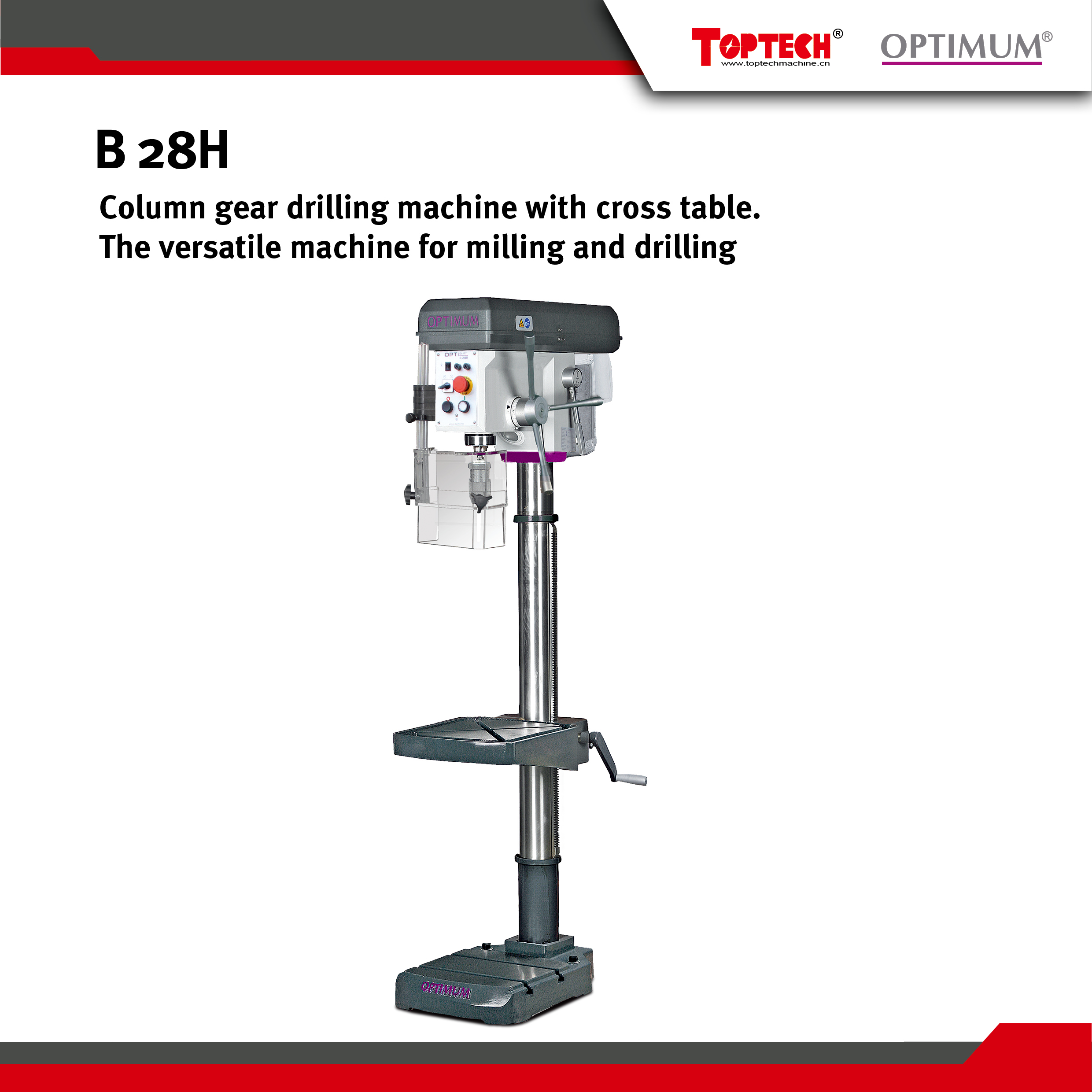

Industrial Column Drilling Machine
This drilling machine is equipped with a smooth, powerful industrial electric motor and a rugged cast column. The precision-machined drilling table includes diagonal T-slots and a cooling water channel.
Technical Specifications
Overview
High-Precision Industrial Column Drilling Machine
This industrial column drilling machine is designed for precision metalworking, offering a robust construction suitable for both drilling and milling operations. It features a high-torque electric motor and a precision-machined table with diagonal T-slots for secure workpiece positioning. With a guaranteed spindle sleeve concentricity of better than 0.015 mm, it ensures accuracy for demanding workshop and manufacturing environments.
Performance Metrics
Drilling Performance
28 mm
Max Drilling Capacity (Steel)
24 mm
Continuous Drilling (Steel)
105 mm
Sleeve Travel
Spindle & Speed
- Spindle Holding Fixture
- MT3
- Spindle Speed Range
- 120 - 4000 rpm
- Number of Speed Steps
- 16
- Spindle Concentricity
- < 0.015 mm
Work Surfaces
Drilling Table Details
| Feature | Specification |
|---|---|
| Table Size (LxW) | 340 x 360 mm |
| T-slot Size | 14 mm |
| Max Spindle-to-Table Distance | 860 mm |
| Base Working Surface | 320 x 320 mm |
Safety & Features
Safety Equipment
- Emergency stop switch
- V-belt cover with safety switch
- Height adjustable protective guard
- Drilling depth stop
- Mechanical Features
- Rugged Cast ColumnV-belt Quick TensioningCoolant ChannelSwiveling Drilling TableRibbed Base
Electrical Data
- Electrical Connection
- 400 V / 3 Ph / 50 Hz
- Total Connection Power
- 850 W
Physical Dimensions
- Machine Dimensions
- 715 x 450 x 1720 mm
- Net Weight
- 142 kg
