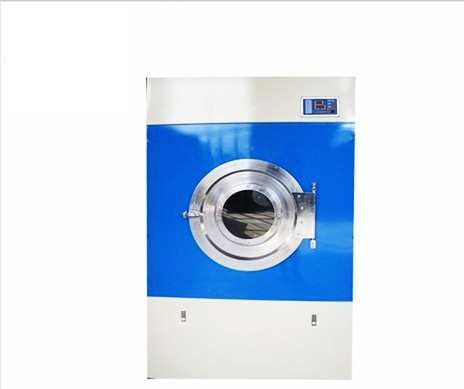

Industrial Clothes Drying Machine
This industrial clothes drying machine is designed for efficient and high-volume clothes drying. It features a stainless steel drum and a user-friendly control panel for adjusting drying parameters.
Technical Specifications
Overview
Professional Industrial Drying Solution
This industrial tumble dryer is engineered for high-volume commercial laundry operations in hotels, hospitals, and garment factories. Featuring a robust stainless steel drum and an automated control system, it ensures efficient and uniform drying with minimal noise. The machine is built for durability and safety, meeting international CE and ISO 9001 quality management standards.
Key Features
Main Features
- Automatic control panel for precise time regulation
- Automatic stop alarm upon cycle completion
- All stainless steel drum for durability and garment protection
- Large 180-degree opening door with toughened glass viewing window
- Triangle belt drive for smooth, low-noise operation
- Compact box cabinet structure to save floor space
- Drum Material
- Stainless Steel
Technical Specifications
Model Comparison
| Model | Overall Dimensions (mm) | Drum Dimensions (mm) | Motor Power (kw) | Exhaust Fan Power (kw) | Heating Power (kw) |
|---|---|---|---|---|---|
| SWA801-10 | 700×1100×1340 | Φ640×560 | 0.55 | 0.55 | 7.2 |
| SWA801-15 | 900×1200×1500 | Φ760×560 | 0.75 | 0.75 | 10.8 |
Performance
Operating Metrics
46 r/min
Rotation Speed
0.6 MPa
Max Steam Pressure
Compliance & Quality
Certifications
CEISO 9001
- Safety Systems
- Automatic Shut-offOverload ProtectionToughened GlassStop Alarm
