Industrial Centrifugal Pump
This centrifugal pump is engineered for efficient fluid transfer, providing consistent flow rates and pressure. Its durable construction and reliable sealing system ensure longevity and minimize downtime.
Technical Specifications
Overview

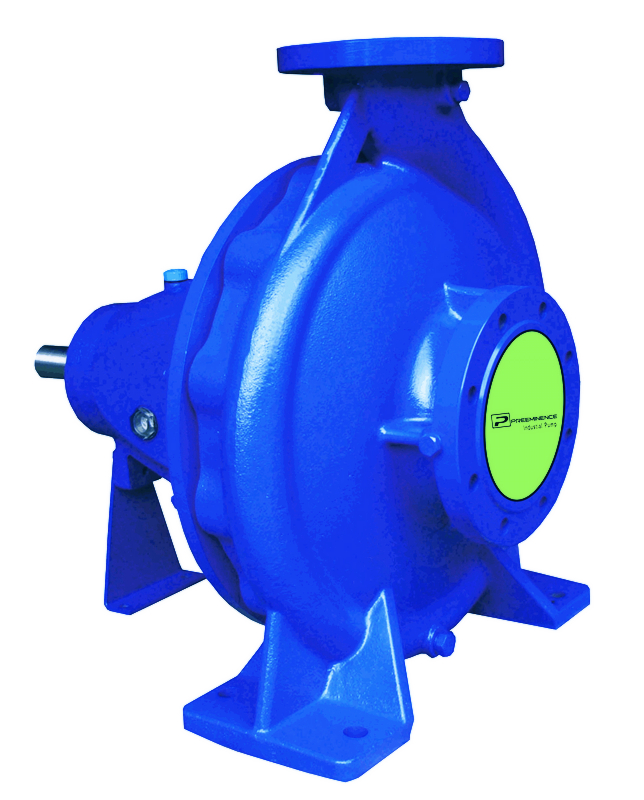

Industrial Centrifugal Pump (PA Series)
The PA series end-suction centrifugal pump is engineered to meet international standards DIN 24255 and BS EN 733, ensuring reliable, long-lasting high performance for demanding industrial environments. Designed for versatility, this pump is suitable for applications ranging from water supply and irrigation to refrigeration and fire protection. Its robust construction features high-quality materials and Japanese-brand bearings, providing consistent fluid transfer and efficient operation.
Performance Metrics
Key Performance Indicators
1,100 m3/h
Max Capacity
150 m
Max Head
105 °C
Max Temperature
Technical Specifications
Connection Diameters
| Connection | Size Range |
|---|---|
| Inlet | 50~300 mm |
| Outlet | 32~250 mm |
- Working Pressure
- 10 Bar (standard), 16 Bar (optional)
- Operating Speeds
- 2900 rpm1450 rpm980 rpm740 rpm580 rpm3500 rpm1750 rpm1180 rpm890 rpm710 rpm
Materials & Construction
Component Materials
| Component | Material |
|---|---|
| Casing | Cast iron |
| Impeller | Cast iron / Stainless steel 304 (standard), Duplex stainless (optional) |
| Shaft | Stainless steel 420 (standard), SUS304/316, Duplex steel (optional) |
| Wear Ring | Cast iron / Stainless steel |
Applications
Typical Applications
- Cooling water systems
- Water supply and distribution
- Fire protection
- Irrigation
- Pressure boosting
- Fluid circulation
- Refrigeration
