Technical Specifications
Product Overview
Industrial Performance & Durability

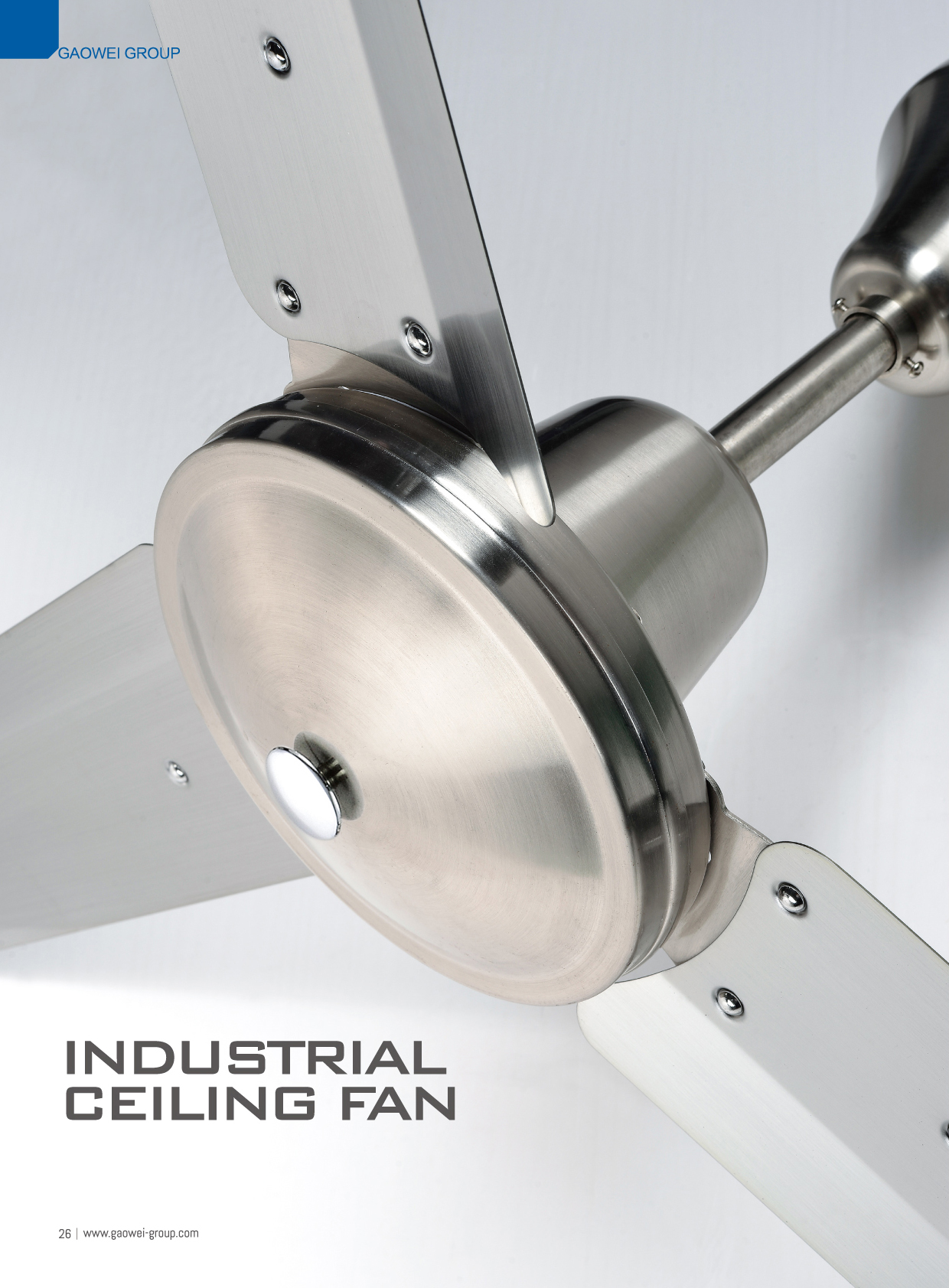

This industrial ceiling fan is engineered for robust performance in demanding environments such as warehouses, factories, and commercial buildings. Constructed from high-grade steel with a specialized protective paint finish, it offers superior corrosion resistance and long-lasting durability. The powerful capacitor motor ensures consistent air circulation, providing reliable cooling and enhanced comfort in humid and hot conditions.
Technical Specifications
Performance Metrics
5,800 m³/h
Max Air Volume
360 RPM
Max Rotation Speed
62.5 W
Max Input Power
Model Specifications
| Model | Voltage (V) | Power (W) | Speed (RPM) | Air Volume (m³/h) |
|---|---|---|---|---|
| CFI-363 | 240 | 48.2 | 360 | 3,000 |
| CFI-483 | 240 | 62.5 | 320 | 4,000 |
| CFI-563 | 240 | 62.5 | 280 | 5,000 |
| GFI-563 | 220-240 | 60 | 320 | 5,800 |
Construction & Design
Ideal Applications
WarehousesFactoriesCommercial BuildingsResidential
- Materials & Build
- Steel ConstructionCapacitor MotorCorrosion Resistant PaintBrushed Metal Finish
