Overview

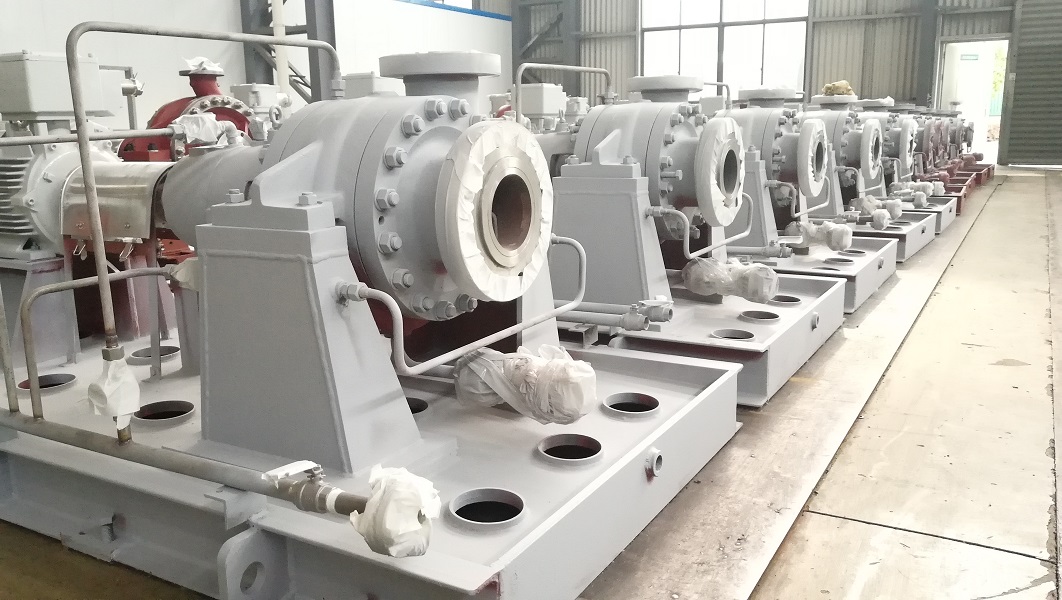

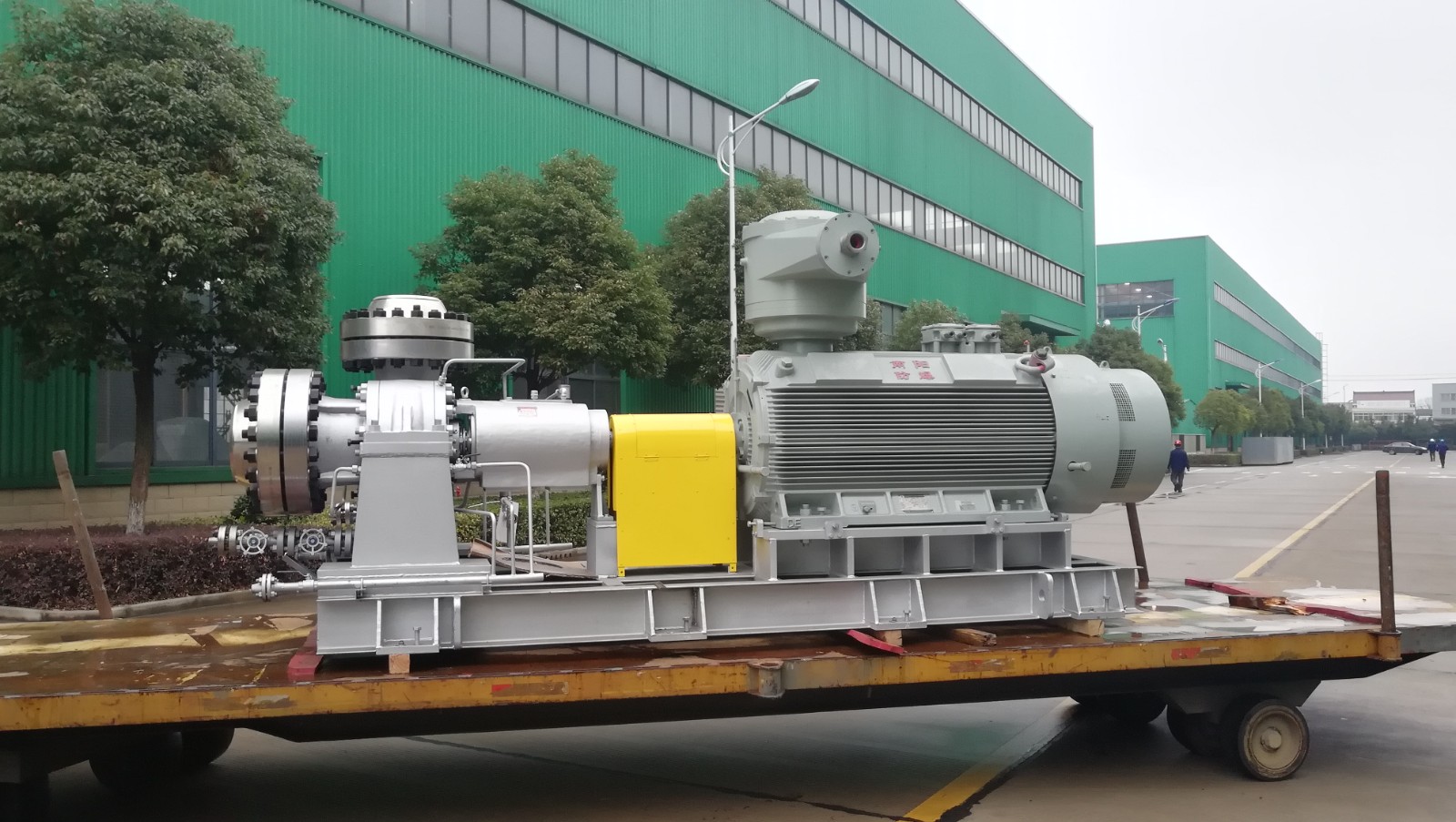

Industrial Boiler Water Circulation Pump
The SZF series is a robust, horizontal, single-stage centrifugal pump engineered strictly according to API 610 standards. Designed for high-pressure industrial environments, it features a heavy-duty bearing box capable of withstanding significant thrust forces. This series offers exceptional hydraulic performance, high efficiency, and superior anti-cavitation capabilities, making it an ideal solution for boiler water circulation, quench water, and coal chemical industry grey water transfer.
Technical Specifications
Design Standard
API 610OH2
- Pump Type
- Centrifugal, Horizontal, Single Stage, Single Suction, Cantilever
- Operating Temperature
- -80°C to +450°C
- Nozzle Diameter
- 50 - 400 mm
Performance Metrics
Key Operating Metrics
2,600 m3/h
Max Flow Capacity
300 m
Max Discharge Head
15 MPa
Max Pressure
Features & Maintenance
Design Advantages
- Heavy-duty bearing box for high thrust force
- Rational design for high component universality
- Reduced maintenance time and spare part requirements
- Integrated connections for vibration, temperature, and pressure testing
- Optimized sealing chambers meeting API standards
