Industrial Ball Valve
These industrial ball valves are available in 1-piece, 2-piece, and 3-piece configurations. They are suitable for diverse applications with options for materials, pressure ratings, and connection types.
Technical Specifications
Overview

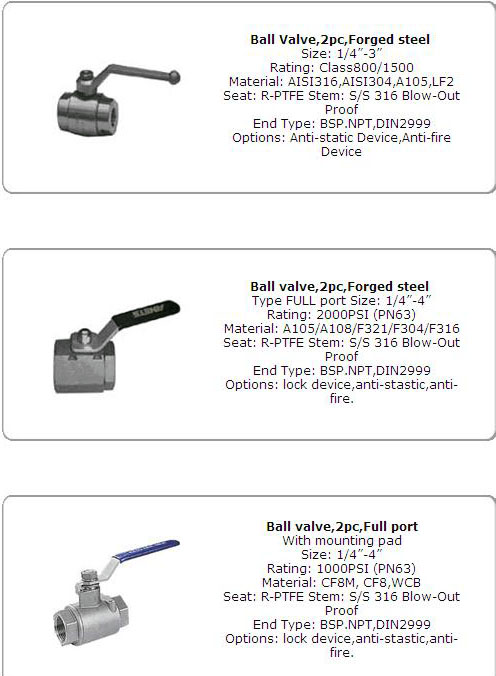

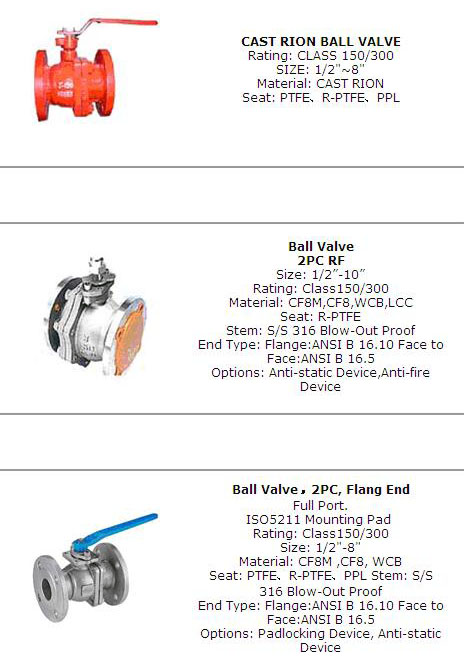

Industrial Ball Valve Series
This comprehensive range of industrial ball valves offers versatile solutions for fluid control, featuring 2-piece and 3-piece designs in both cast and forged steel configurations. Engineered for reliability, these valves include safety features such as blow-out proof stems, anti-static devices, and optional anti-fire protection. With a wide variety of materials, pressure ratings, and connection types, these valves are suitable for diverse industrial piping applications.
Technical Specifications
Body Materials
- CF8M
- CF8
- WCB
- LCC
- AISI316
- AISI304
- A105
- LF2
- A108
- F321
Seat Materials
PTFER-PTFEPPL
- Available Configurations
- 2-Piece Design3-Piece DesignFull PortCast IronForged Steel
Performance & Standards
Pressure Ratings
- Class 150
- Class 300
- Class 800
- Class 1500
- Class 2500
- 1000 PSI (PN63)
- 2000 PSI (PN63)
- Size Range
- 1/4" to 10"
- End Connections
- Flange (ANSI B 16.5)BSPNPTDIN2999SW
Features & Options
Safety & Operational Features
- Blow-Out Proof Stem
- Anti-Static Device
- Anti-Fire Device
- Padlocking / Locking Device
- ISO5211 Mounting Pad
