Technical Specifications
Product Overview

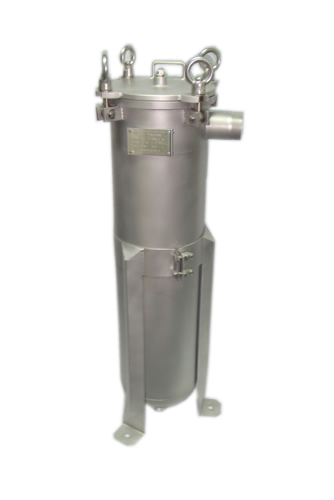

Industrial SIDE-LINE Filter Vessel
The SIDE-LINE series is a full-featured, investment-cast filter vessel designed for high-performance industrial filtration. Featuring a bead-blasted finish for easy cleaning and a versatile cover adaptable to various opening directions, this unit ensures both durability and maintenance efficiency. It is engineered to handle substantial flow rates and is available in high-grade stainless steel configurations to suit diverse chemical and process requirements.
Performance Metrics
Flow Capacity
20,000 lt/hr
Size 01 Flow Rate
40,000 lt/hr
Size 02 Flow Rate
- Maximum Operating Pressure
- 10 bar
Technical Specifications
Seal Material
- Buna N (Standard)
- Viton (Optional)
- Material Construction
- 304 Stainless Steel316 Stainless Steel
- Connection Size
- 2" ANSI
Design Features
Compatible Filter Bag Sizes
Size 01Size 02
Optional Features
- Steam Jacket
