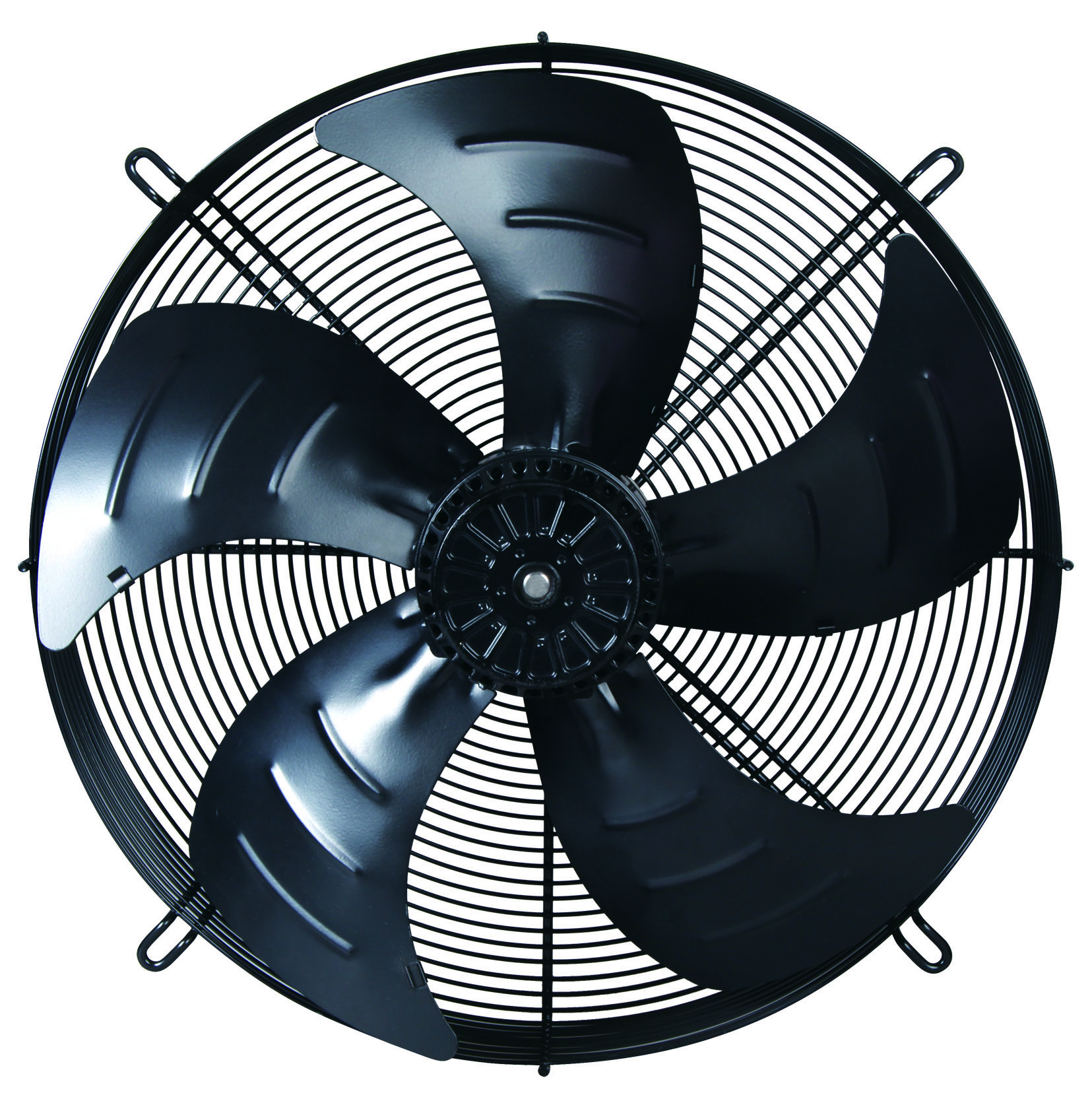

Industrial Axial Fan for Ventilation
This high-efficiency axial fan is designed for ventilation and air conditioning applications. It features aerodynamically optimized blades for maximum airflow and reduced noise.
Technical Specifications
Product Overview
High-Efficiency YWF Series Axial Fans
The YWF series axial fans are engineered as external rotor fan motors, offering a compact structure that ensures convenient installation and high energy efficiency. These versatile units are ideal for use in condensers, evaporators, and various ventilation cycle applications. Designed for reliability, they feature a robust construction and an impressive service life exceeding 30,000 hours.
Technical Specifications
- Insulation Class
- B or F
- Service Life
- 30000 hours
- Operating Temperature Range
- -30°C to 60°C
- Electrical Wire Length
- 1.5 m
Electrical Data
Voltage Options
| Motor Type | Voltage | Frequency |
|---|---|---|
| Single Phase Asynchronous | 220V | 50Hz |
| Three Phase Asynchronous | 380V | 50Hz |
Compliance & Certification
- Certifications
- CCCCEUL
Key Features
Motor Features
- External rotor motor design
- Compact structure
- Energy conservation
- High efficiency
- Optional connection box available
