Industrial Axial Fan for Ventilation

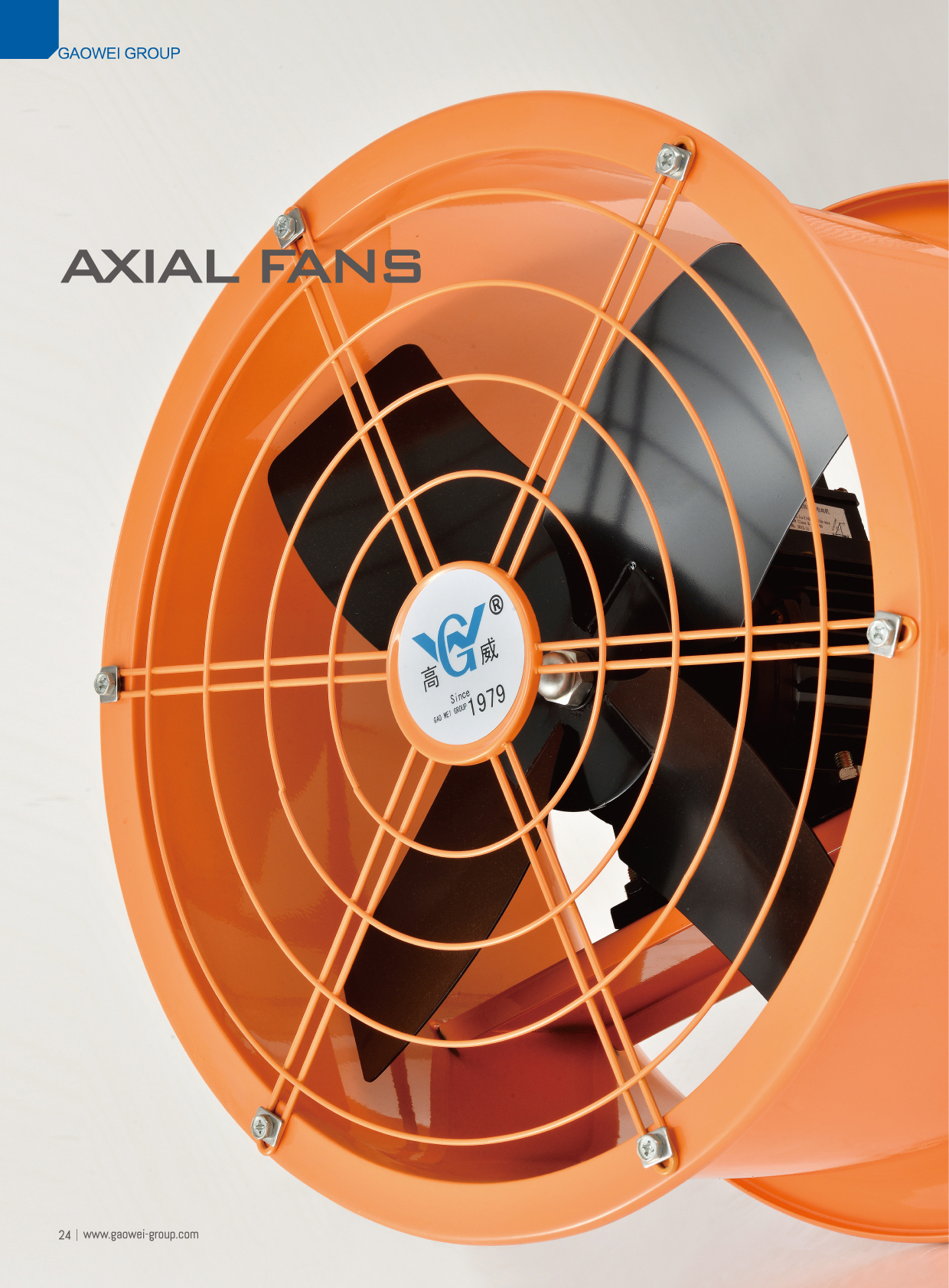

This industrial axial fan is designed for high-volume air movement. Its robust construction includes a protective cage and aerodynamically optimized blades for efficient airflow.
Technical Specifications
Overview
Industrial Axial Fan Overview
These industrial-grade axial fans are engineered for high-volume, low-pressure airflow, making them an ideal solution for general-purpose ventilation, exhaust, and cooling applications. Designed for efficiency and quiet operation, they feature aerodynamically optimized blades and robust construction for durability in commercial and industrial environments. With a maximum air volume capacity of up to 9000 m³/h, these fans provide reliable performance across a range of operational needs.
Key Features
- Low noise operation
- Exceptional energy efficiency
- Aerodynamically optimized blades
- Robust protective cage construction
Performance Metrics
Maximum Air Volume
9,000 m³/h
Max Air Volume
1,400 RPM
Rotation Speed
Technical Specifications
Model Specifications
| Model | Power | Current | Air Vol | Capacitor |
|---|---|---|---|---|
| GFZ40A | 300 | 1.343 | 5,200 | 10 |
| GFZ50A | 450 | 1.77 | 8,500 | 10 |
| GFZ40B | 200 | 0.76 | 4,300 | 6.5 |
| GFZ50B | 250 | 0.76 | 6,300 | 6.5 |
| GFZ60B | 400 | 1.78 | 9,000 | 10 |
- Electrical Standards
- 220V50Hz
