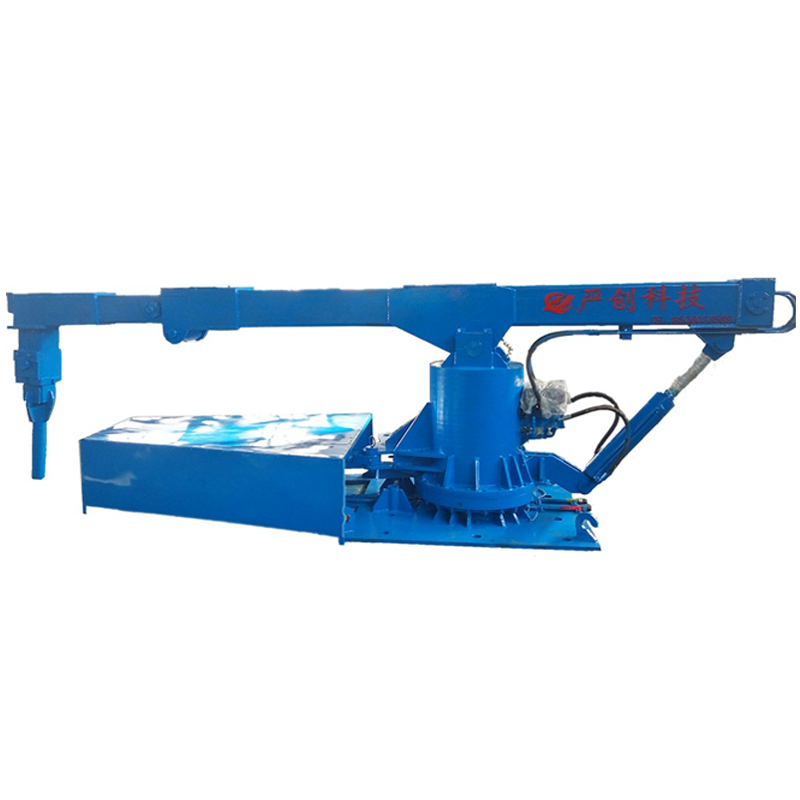

Induction Furnace Material Handling Manipulator
This manipulator compacts scrap metal, increasing its density for improved energy conversion during the melting process. It also quickly moves scrap and packed blocks into the furnace while a remote control enhances operator safety.
Technical Specifications
Product Overview
Industrial Induction Furnace Manipulator
This advanced material handling manipulator is designed to automate furnace operations, significantly enhancing safety by removing the need for manual intervention near the furnace mouth. By streamlining the charging process, the system improves melting efficiency, reduces tapping time, and extends the lifespan of furnace linings. It offers a robust hydraulic design with dual control modes, making it an essential upgrade for modern metal casting and forging facilities looking to optimize productivity and labor costs.
Performance Metrics
Operational Efficiency Gains
Technical Specifications
Dimensions and Weight
| Component | Dimensions (mm) | Weight (kg) |
|---|---|---|
| Machine Body | 5500 x 1350 x 1550 | 3,135 |
| Hydraulic Station | 1100 x 1100 x 1500 | 285 |
Hydraulic System Features
- 11KW high-efficiency oil-pump motor unit
- Automatic pump stop and pressure relief during idling
- Water-cooled oil temperature regulation
- Temperature differential control within 5°C
- Rear-mounted components to isolate from heat sources
Operational Features
Design Highlights
- Control Modes
- Local ControlRemote ControlEmergency Power Cut
