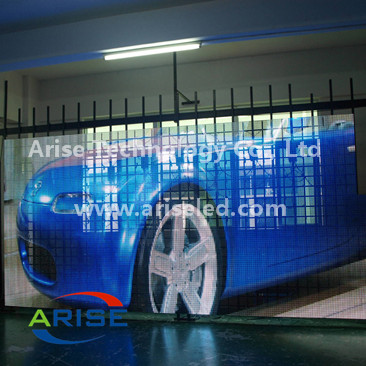

Indoor/Outdoor LED Mesh Display (P6.25-P31)
This LED mesh display is designed for both indoor and outdoor use. It offers a range of pixel pitches from P6.25 to P31 for versatile applications.
Technical Specifications
Product Overview
Professional LED Mesh Display

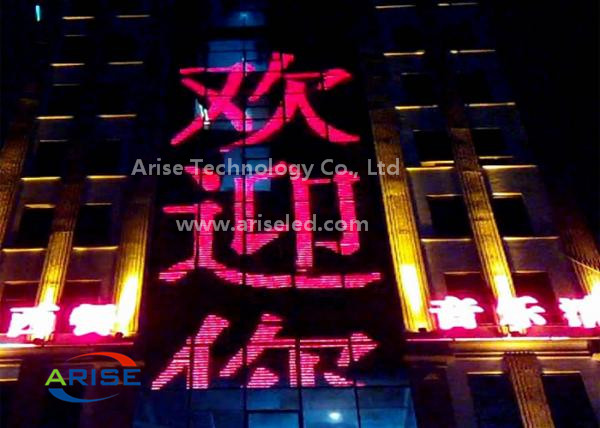

This versatile LED mesh display series offers high-performance visual solutions for both indoor and outdoor environments. Designed with a modular architecture, the system is lightweight and thin, making it exceptionally easy to install for stage rentals, architectural lighting, or large-scale advertising. With features like dot-by-dot calibration and high refresh rates, it ensures vibrant, consistent image quality for years of operation.
- Key Features
- Lightweight DesignTool-free InstallationHigh Refresh RateDust ProofAnti-staticFanless Design
Technical Specifications
Visual Performance
12.5 mm
Pixel Pitch
6,400 dots/m²
Pixel Density
600 cd/m²
Brightness
2,000 :1
Contrast Ratio
Core Specifications
| Parameter | Value |
|---|---|
| LED Type | SMD3528 |
| Viewing Angle | 120° H / 120° V |
| Grey Level | 65536 |
| Refresh Rate | 600-4000 Hz |
| Driving Method | 1/8 Scan |
Mechanical & Environmental
Dimensions & Weight
- Module Size: 200mm x 400mm
- Cabinet Size: 400mm x 800mm x 50mm
- Cabinet Weight (Aluminum): 7.5 kg
- Cabinet Weight (SPCC): 9 kg
Operating Conditions
- IP Grade: IP20
- Working Temperature: -30°C to +55°C
- LED Lifespan: 100,000 Hours
Electrical
Power Requirements
- Input Voltage: 110V/220V AC ±5%
- Max Power Consumption: 350W/m²
