In-Line Duct Fan Impeller with Motor
This impeller with motor is designed for in-line duct fans. It is available in multiple models with varying specifications for voltage, hertz, and rotation speed.
Technical Specifications
Overview
High-Performance In-Line Duct Fan Impellers

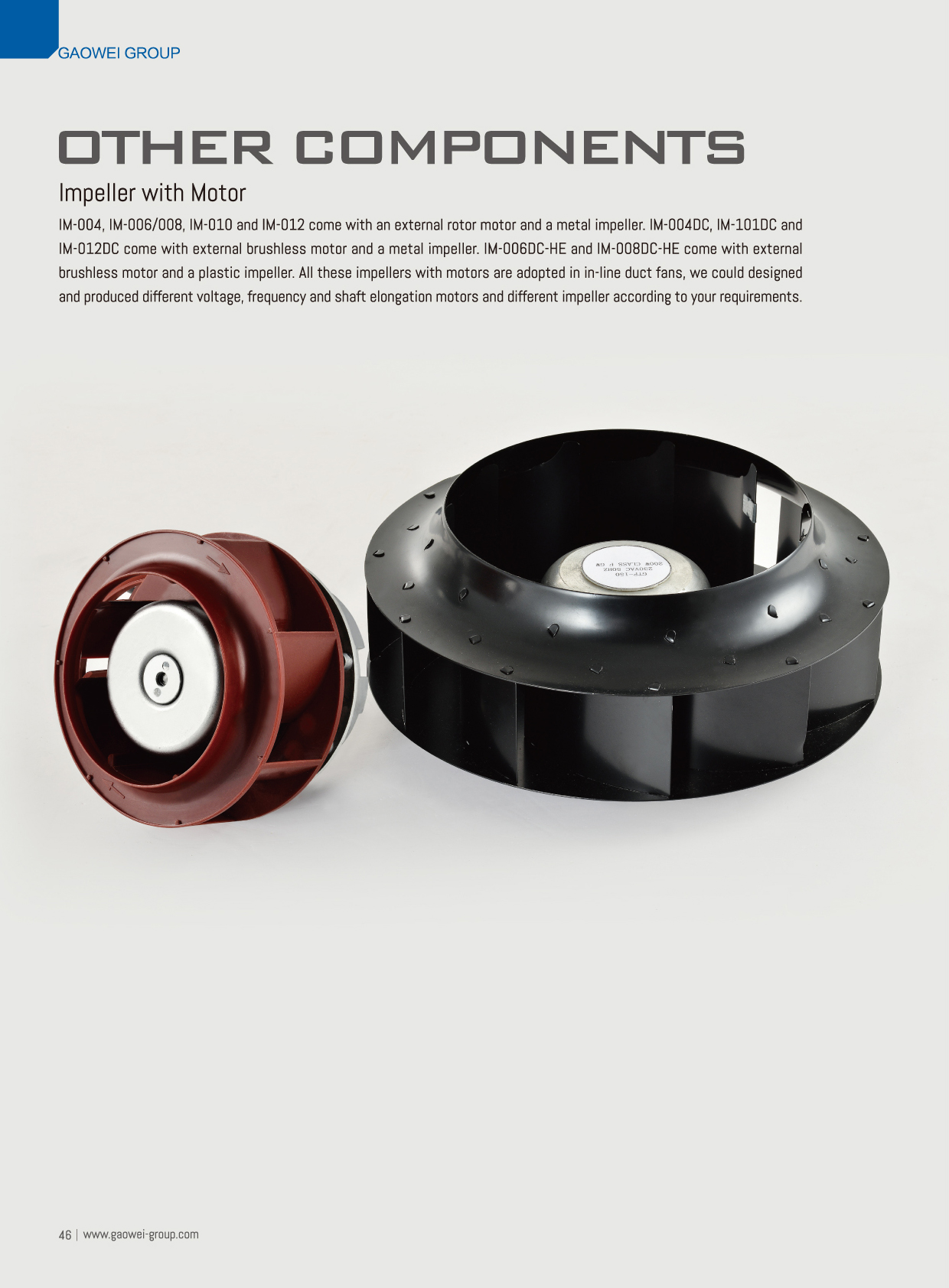

These in-line duct fan impellers with motors are engineered for integration into ventilation systems and heat recovery units. The product line offers versatile configurations, including external rotor motors paired with metal impellers, or external brushless motors available with either metal or plastic impellers. Designed for reliability and efficiency, these components are highly adaptable to specific project needs.
Construction & Models
Configuration Types
- External rotor motor with metal impeller (IM-004, IM-006/008, IM-010, IM-012)
- External brushless motor with metal impeller (IM-004DC, IM-101DC, IM-012DC)
- External brushless motor with plastic impeller (IM-006DC-HE, IM-008DC-HE)
Technical Specifications
Technical Data Table
| Model | Voltage (V) | Hertz (Hz) | Current (A) | Input Power (W) | Rotation (RPM) |
|---|---|---|---|---|---|
| IM-004 | 230 | 50 | 0.348 | 80 | 2,450 |
| IM-006/008 | 230 | 50 | 0.87 | 200 | 2,500 |
| IM-010 | 230 | 50 | 0.87 | 200 | 2,600 |
| IM-012 | 230 | 50 | 1.217 | 280 | 2,578 |
| IM-004DC | 230 | 50 | 0.348 | 60 | 2,450 |
| IM-010DC | 230 | 50 | 0.87 | 160 | 2,600 |
| IM-012DC | 230 | 50 | 1.217 | 200 | 2,578 |
| IM-006DC-HE | 230 | 50 | 0.217 | 50 | 4,300 |
| IM-008DC-HE | 230 | 50 | 0.348 | 80 | 3,200 |
Customization Options
- Customization
- Custom VoltageCustom FrequencyCustom Shaft ElongationDifferent Impeller Materials
