Product Overview

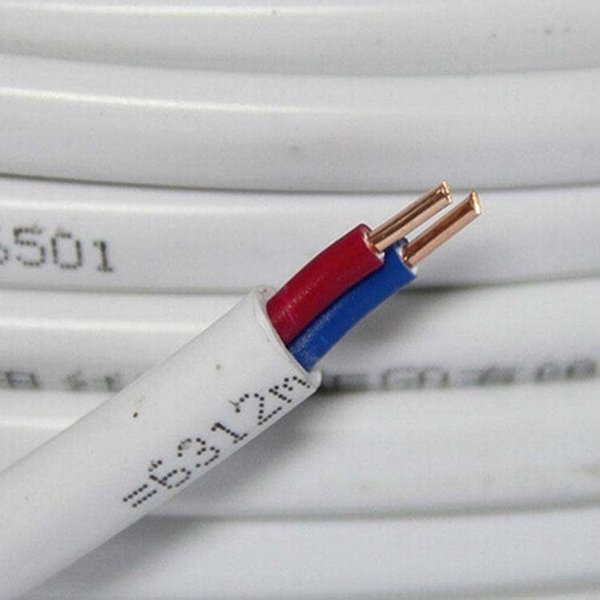

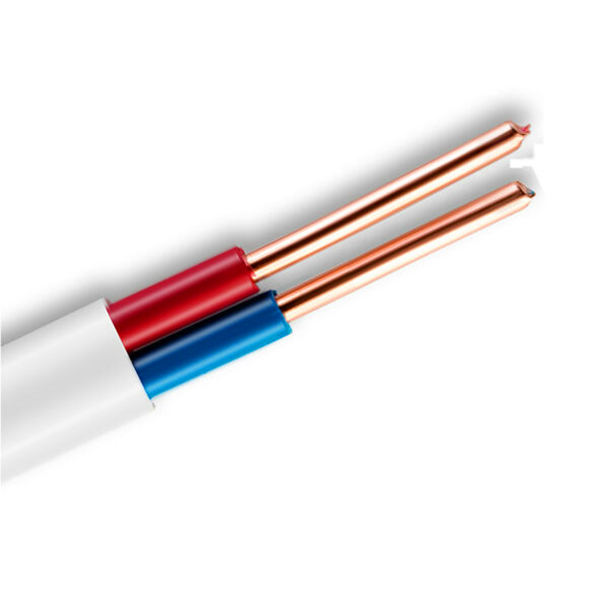

IEC 60227 Flat Twin and Earth Cable
The IEC 60227 Flat Twin and Earth (BVVB) cable is a professional-grade electrical wire designed for building wiring, fixed installations, and household appliances. Featuring a flat profile, it consists of parallel insulated conductors protected by a durable PVC sheath, providing both power and grounding capabilities. This cable is engineered for reliability in dry or damp premises, making it a versatile choice for residential and light industrial electrical systems.
Technical Specifications

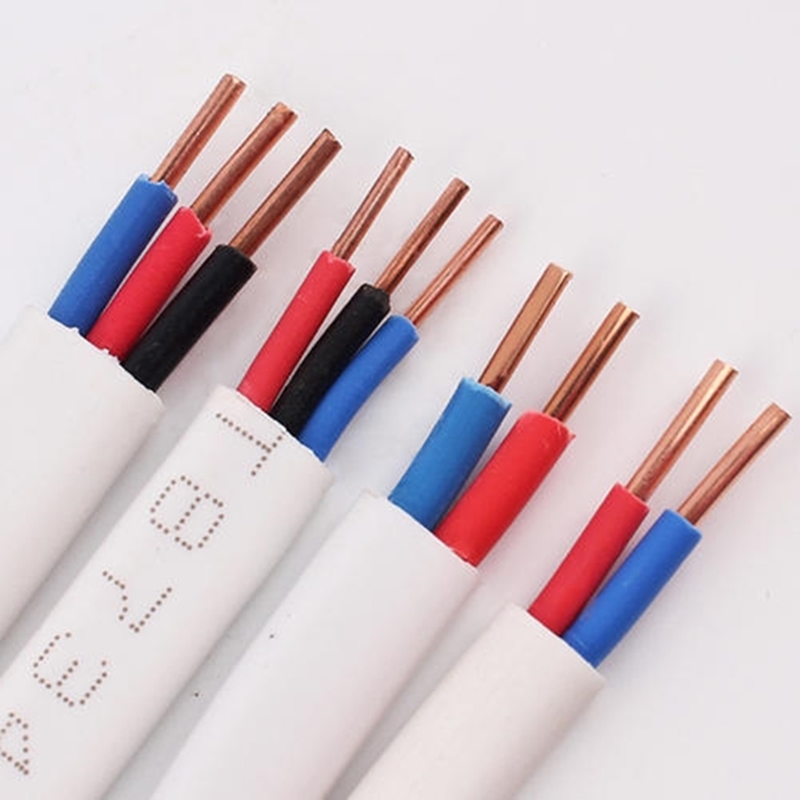

Available Core Configurations
- 2C
- 2C+E
- Voltage Rating
- 300/500V (U0/U)
- Conductor Material
- Plain annealed copper
- Conductor Class
- Solid Class 1Strand Class 2
- Insulation Material
- Polyvinyl Chloride (PVC)
- Sheath Material
- Polyvinyl Chloride (PVC)
- Operating Temperature
- -5°C to +70°C
- Size Range
- 0.75 - 6 mm²
- Compliance Standards
- IEC 60227JB/T 8734-2016
Comparison Data
Standard Comparison Table
| Feature | IEC 60227 / JB/T 8734 | AS/NZS 5000.2 | BS 6004 Table 4 |
|---|---|---|---|
| Insulation Material | General PVC | V-90 PVC | General PVC |
| Voltage Rate | 300/500V | 450/750V | 300/500V |
| Sheath Color | White | White | Grey |
